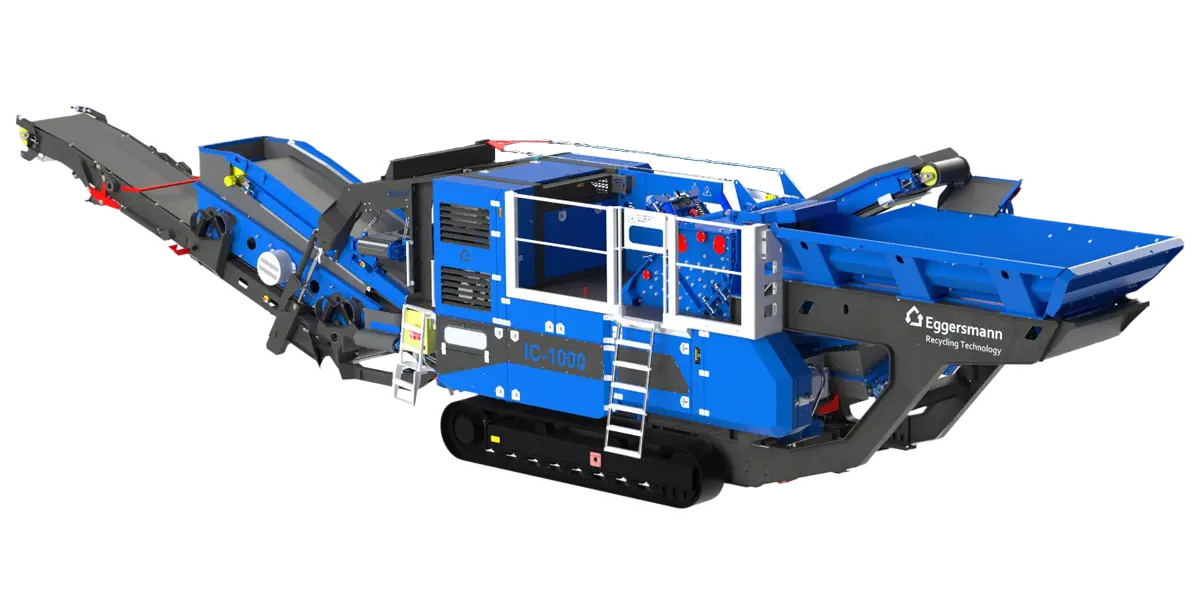

Eggersmann ROKTEC IC 1000

Eggersmann ROKTEC IC 1000

Minerals as a Predefined End Product

Product Highlights

  • Cubic end product
  • Low-wear design
  • Large feed area
  • High throughput capacity


Mobile Version

Tracks

(diesel-electric / electric)
Power output:

205 kW

Throughput:

Up to 200 t/h

Weight:

Approx. 38,500 kg

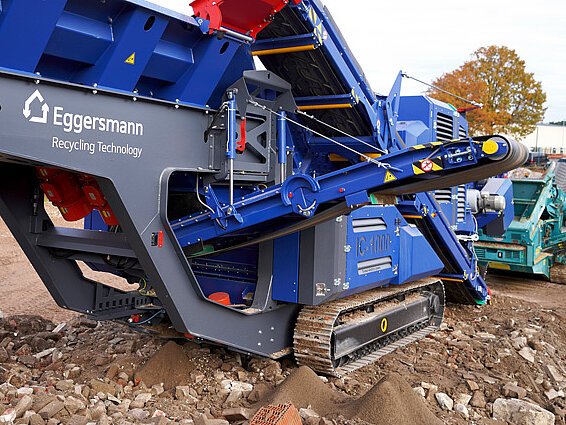

Eggersmann ROKTEC IC 1000

The Eggersmann ROKTEC IC 1000 is impressive in every respect. The impact crusher is of high quality and yet affordable. Even at high throughput rates, the crusher produces a homogeneous end product with an excellent grain shape for further marketing.

Which Materials can be Processed?

 Features


ecological technik product image

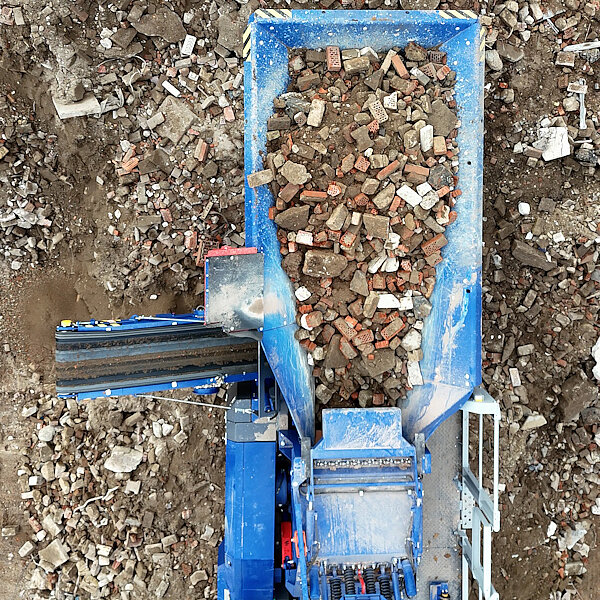

 Large Infeed Hopper

  • Easy loading thanks to a 1050 x 1000 mm infeed area


ecological technik product image

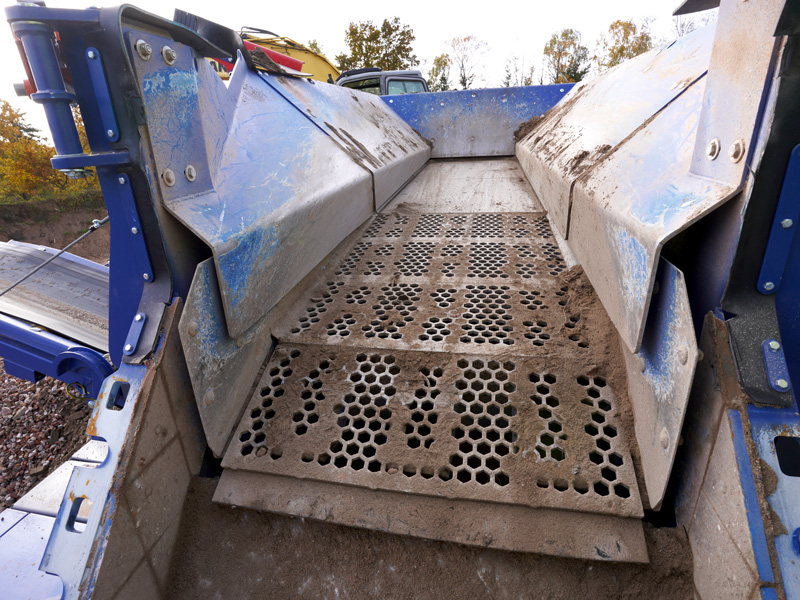

 Pre-screening Belt

  • Sand and other fine particles are sieved off before the crusher chamber
    → Extra fraction
  • Less abrasive material in the crusher chamber
    → Longer service life of the tools


 Oversized Material Recirculation

  • Oversized particles are returned to the hopper → Extremely homogeneous end product


 Slag conveyor belt

  • As an alternative to oversize grain recirculation, the conveyor belt can also be swung out and used to produce another fraction.


ecological technik product image

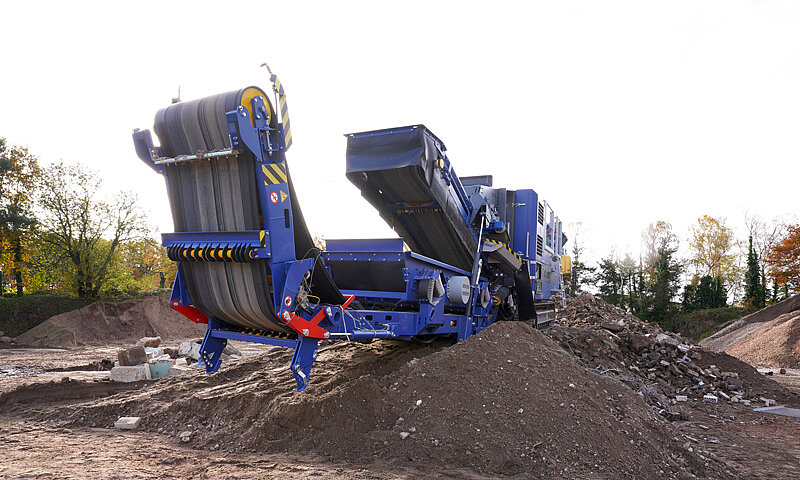

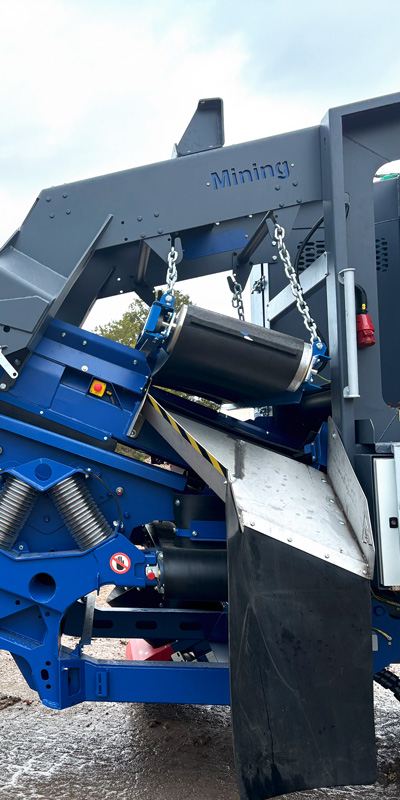

 Hydraulic Discharge Conveyor

  • Quick change between transport and working position
  • Maintenance at ground level


ecological technik product image

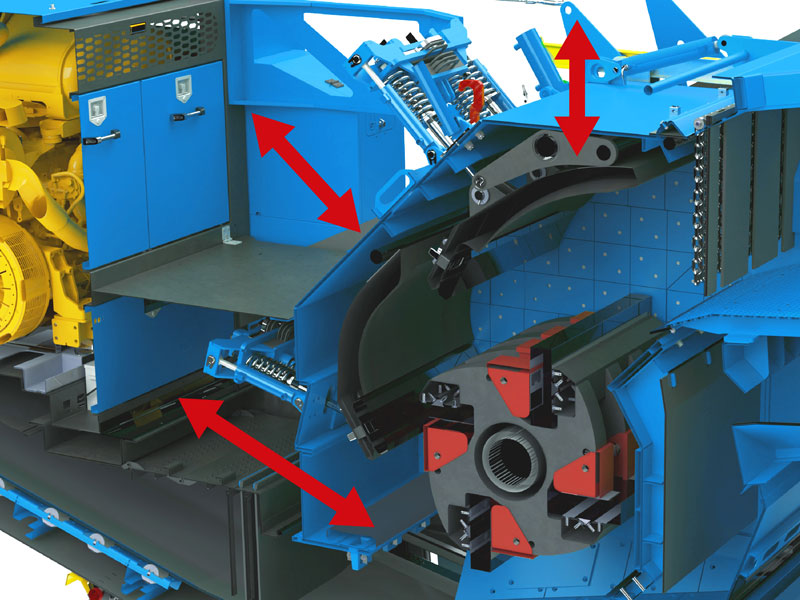

 Definable End Product

  • Easy adjustment of the gap between impact
    plates and blow bars via contole unit
  • Adjustment of the impact aprons to define the
    final grain size
  • 0/80 mm grain sizes


 Modular Screen Deck

  • Quick access and easy to add on
  • Maintenance friendly surfaces
  • Optional extension with additional screen deck


ecological technik product image

 Magnet Separation

  • Magnet for separating valuable ferrous metals
  • Particularly high economical in the processing of reinforced concrete
    → Additional end product


ecological technik product image

 Feeder

  • Feeder for homogeneous material infeed


ecological technik product image

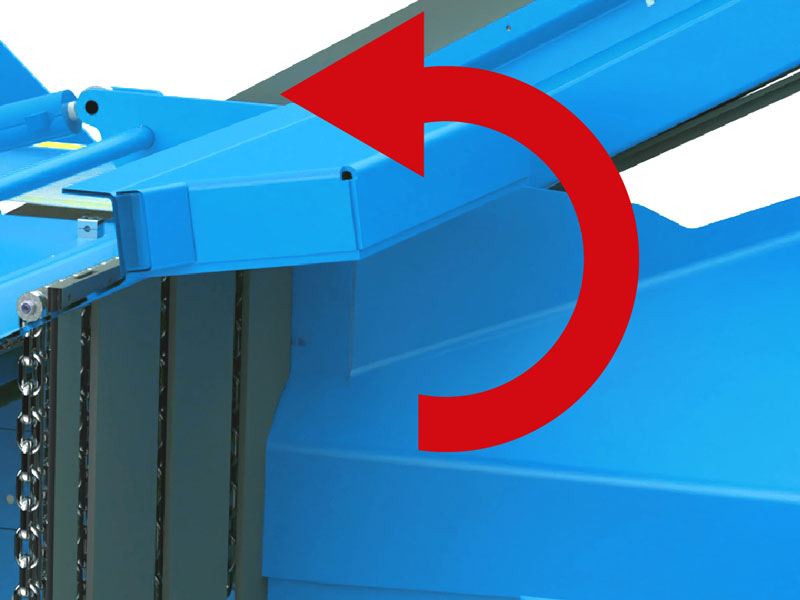

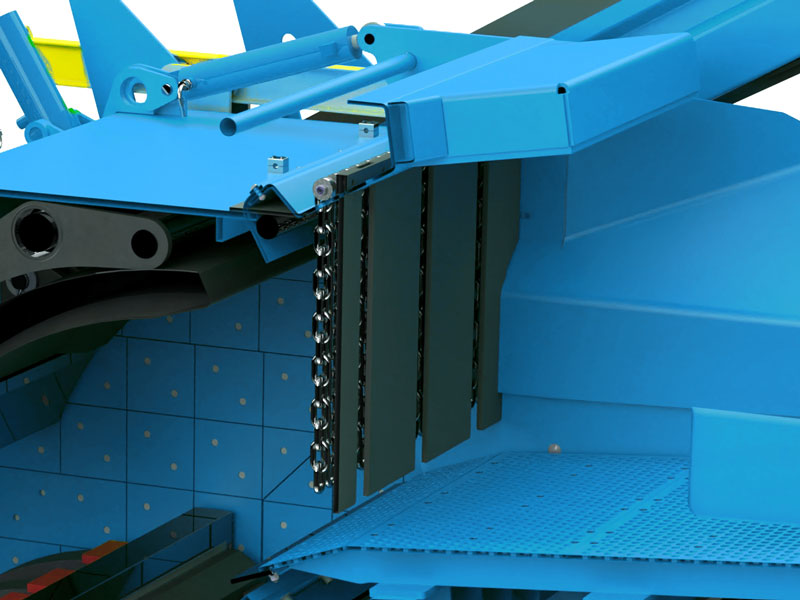

 Definable Infeed Size

  • Adjustable flap in the feed area to determine the maximum material size into the crushing chamber


ecological technik product image

 Safety Curtain

  • No dangerous material ejection from the crushing chamber


ecological technik product image

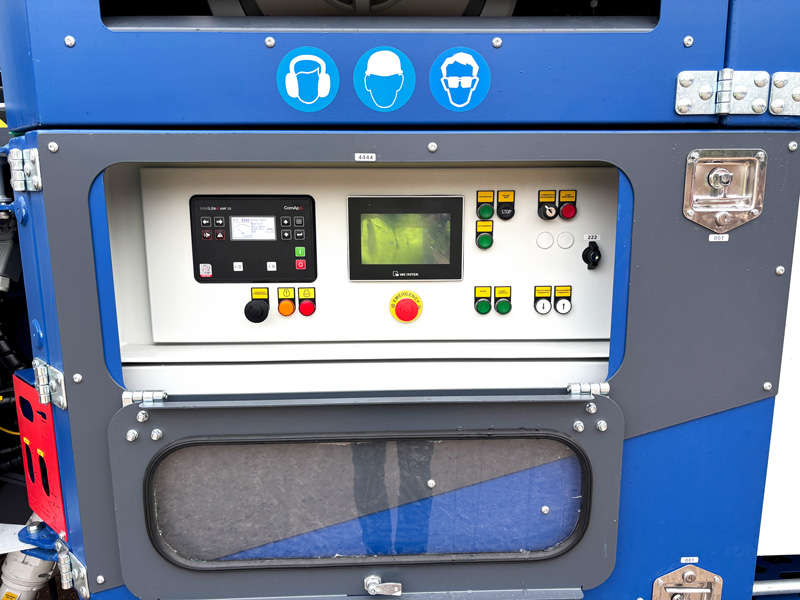

 Operation

  • Intuitive operation via display or remote control
  • Easy to move due the remote control
    → proportional control for precise movements


ecological technik product image

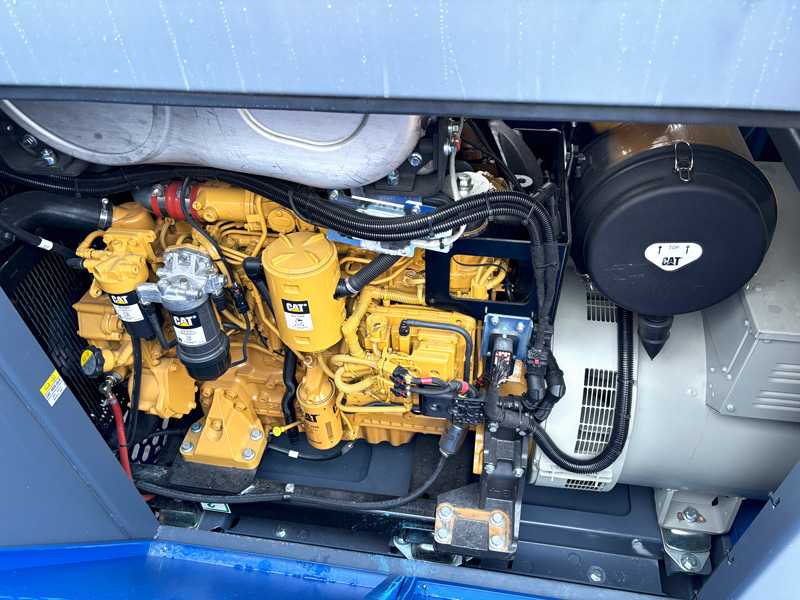

 Diesel Drive

  • Powerful 205 kW drive
  • Low fuel consumption


 Options



Technical Data Eggersmann ROKTEC IC 1000

  • Genset
  • CAT C7.1


  • Power
  • 205 kW / 278 hp


  • Total Weight
  • 38,500 kg


  • Feed Area
  • 1,050 x 1,000 mm


  • Inlet Opening
  • 880 x 730 mm



  •
  • Working Position
  • Transport Position


  • Height
  • 3,650
  • 3,230


  • Length
  • 16,980
  • 15,470


  • Width
  • 4,330
  • 2,850


  • Discharge Height
  • 3,060
  • /
