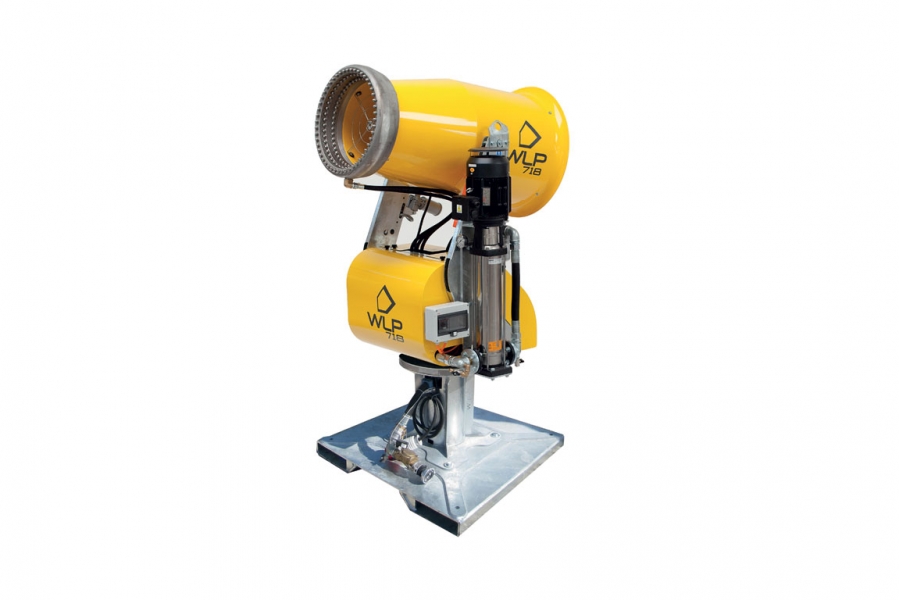

TECHNICAL SPECIFICATIONS OF WLP 718 TRAILER:
- Dimensions (mm):
H: 1900 | L: 2400 | W: 2450 - Weight: 540kg

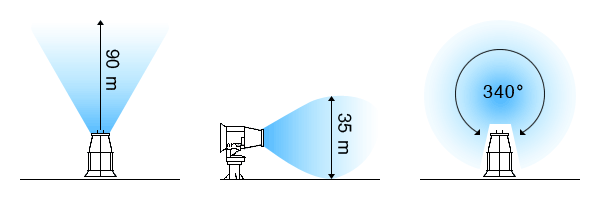

- Range of rotation: 340°
- Elevation: -20° ÷ +45°
- Theorical throw distance: 80-90m
- Installed power: 18,5 kW
- Pump (optional): 4 kW - 7,5 kW
- Power supply: 3P+T 63A 400 Volts 50 Hz
- Pressure: min 5 bar, recommended 10-15 bar max 35 bar
- Protection rating: IP 55
- Noise level: < 93 Lwa
- Nozzles: 150, Inox
- Crowns: 3
- Water filter: 200 micron, Inox
- Water consuption - 4kW (5-10-15 GPH):
- BAR | 6 | 9 | 12 | 15
- MIN LITERS/MINUTES | 15 | 18 | 21 | 23
- MAX LITERS/MINUTES | 88 | 108 | 125 | 139
The data is indicative and not binding.
WLP reserves the right to make changes at any time and without notice.
