Technical data

rev machine

TECHNICAL SPECIFICATIONS OF WLP 700:

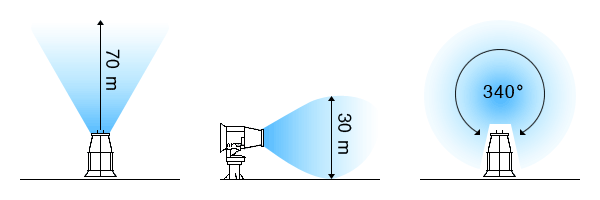

  • Throw distance: 60-70 m
  • Rings of nozzles: N. 3
  • Number of nozzles: 150 (n. 50 for ring)
  • Type nozzles: Standard Stainless Steel
  • Nominal fan power: ~ 11 kW
  • Range of rotation: 340°
  • Elevation: -20° ÷ +45°
  • Hydraulic connection: 1 ½ gas M
  • Electrical connection: 400 V 50 Hz 3P+N+G 63 A
  • International protection rating: IP 55
  • Noisiness: < 93 Lwa
  • Water Filter/Filtration Grade: Inox - 250 Micron
  • Water consumption (with 5, 10 and 15 gph nozzles):
rev machine
  •  BAR |  6  |  9  |  12  |  15
  •   MIN LITERS/MINUTES |  15  |  18  |  21  |  23
  •   MAX LITERS/MINUTES |  88  |  108  |  125  |  139



  • Pressure: Recommended 10/15 bar - maximum 35 bar
  • Optional: radio - solenoid valve input - pump on board (Power: ~ 4 kW)




 The data is indicative and not binding.
 WLP reserves the right to make changes at any time and without notice.
