Technical data

rev machine

TECHNICAL SPECIFICATIONS OF WLP 500:

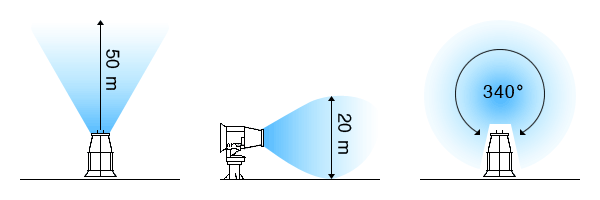

  • Throw distance: ~ 40-50 m
  • Rings of nozzles: N. 2
  • Number of nozzles: 72 (n. 36 for ring)
  • Type nozzles: Standard Stainless Steel
  • Nominal fan power: ~ 5,5 kW
  • Range of rotation: 340°
  • Elevation: -20° ÷ +45°
  • Hydraulic connection: 1 ½ gas M
  • Electrical connection: 400 V 50 Hz 3P+N+G 32 A
  • International protection rating: IP 55
  • Noisiness: < 93 Lwa
  • Water Filter/Filtration Grade: Inox - 250 Micron
  • Water consumption (with 10 and 15 gph nozzles):
rev machine
  •  BAR |  6  |  9  |  12  |  15
  •  MIN LITERS/MINUTES |  21  |  26  |  30  |  33
  •  MAX LITERS/MINUTES   |  53  |  65  |  75  |  84



  • Pressure: minimum 6 bar - Recommended 10-15 bar – maximum 35 bar
  • Optional: radio - solenoid valve input - pump on board (Power: ~ 2,2 kW)




The data is indicative and not binding.
 WLP reserves the right to make changes at any time and without notice.
