GT 150
ecological machines rev

GT 150

The REV GT 150 Shredder is equipped with a magnetic belt with a remote control lifting system and a hydraulically operated
 rear tipping hopper, also controlled via remote control. The GT 150 features side grilles with hydraulic openings made from
 Hardox 400 material, and a control panel with standard programming options, as well as the capability to customize work
 programs. The wear-resistant plates are positioned on the sides, front, and rear, including the reducer side and support side.
 The GT 150 allows for quick replacement of the shafts (Hardox 400) using a quick support system. It is powered by a Volvo
 Penta diesel engine with 160 kW of power. The radiator is equipped with a reversible fan for cleaning, accessible by opening
 the hood.

Optional

  • Lower impact bar
  • Fixed rear hopper
  • Wood shaft set


Download technical file
rev machine
rev machine
rev machine
rev machine
rev machine
rev machine
rev machine

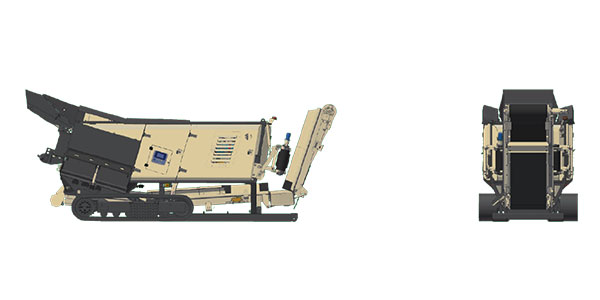

Transport dimensions


  • Length (mm)  | 7000
  • Width (mm)  | 2200
  • Height (mm)  | 2400
  • Weight (kg)  | 15500
rev machine

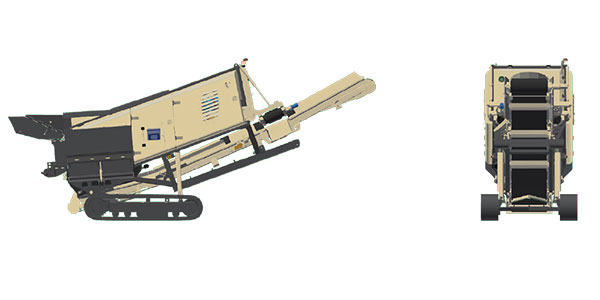

Working dimensions


  • Length (mm)  | 8400
  • Width (mm)  | 2200
  • Height (mm)  | 3600
  • Weight (kg)  | 15500
  • Rotor working length (mm)  | 1500
  • Rotor diameter  | 675
  • Target area with fix hopper  | 2400x1300
  • Target area with tilting hopper  | 3690x1300
  • Feeding hopper  |
  • Standard capacity (m3)  | 2,5
  • Product conveyor  |
  • Width (mm)  | 800
  • Discharge height (mm)  | 3200
  • Product conveyor hydraulically liftable  |
  • Width (mm)  | 500
  • Length (mm)  | 1225
  • Side of discharge  | right
  • Engine  | Volvo Penta
  • Power (kW)  | 160
  • Fuel Tank capacity (lt)  | 400
  • Hydraulic tank capacity (lt)  | 150
  • Ad-Blue  | 45
  • Track  |
  • Width (mm)  | 400
  • Length (mm)  | 2250
  • Two speeds  | yes
  • Control grid  |
  • Width (mm)  | 880
  • Length (mm)  | 880
  • Size (mm)  | 35
