GCV 80
ecological machines rev

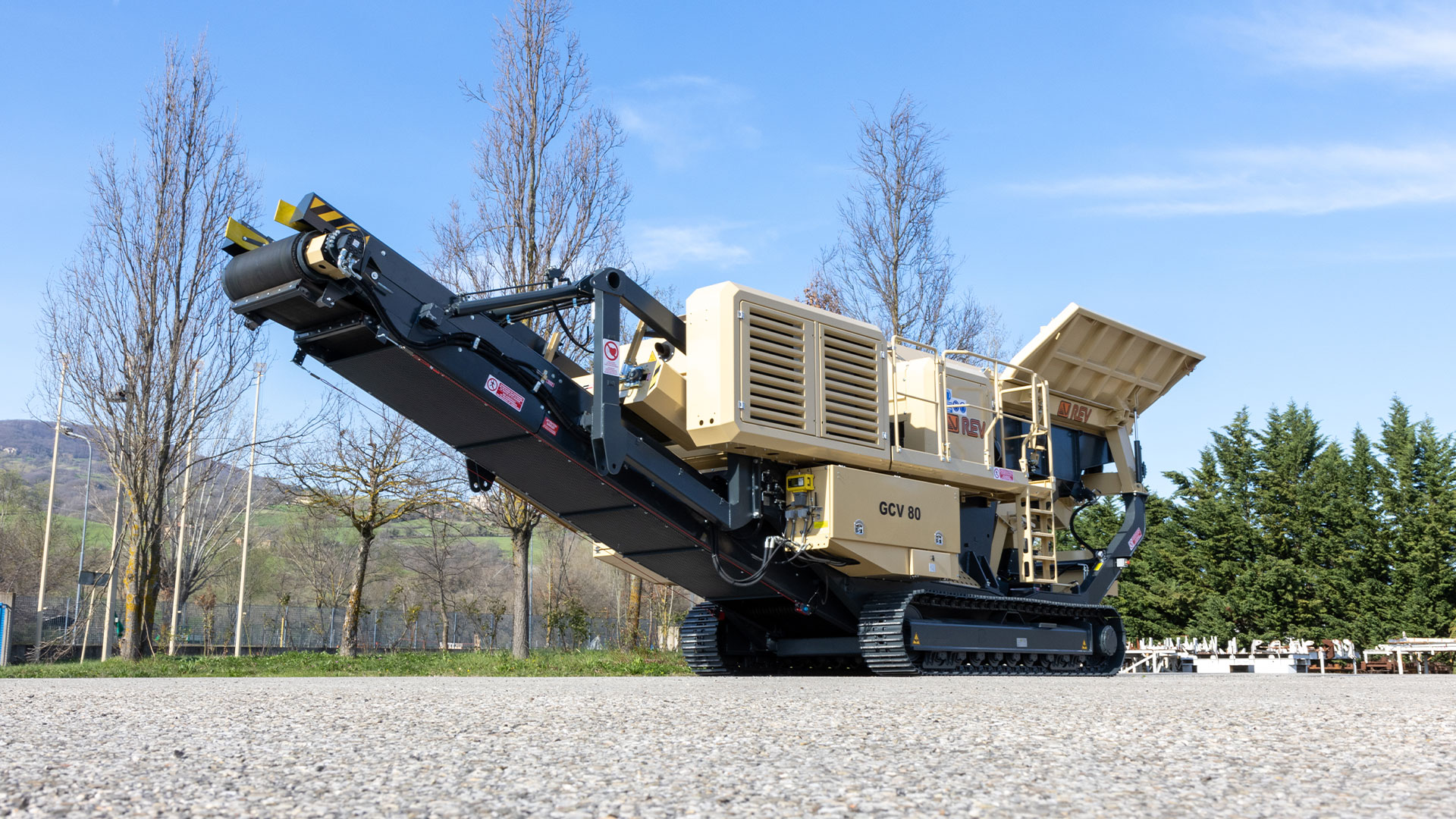

GCV 80

This machine is built for robustness and reliability, handling even the toughest, most abrasive materials. Designed to meet the same high standards as the larger REV series, it boasts compact transport dimensions of just 2.5 m in width and 3.2 m in height, with a weight of only 25 tonnes. The optional Hydraulic Protection System (HPS) ensures smooth operation, even when uncrushable materials enter the crushing chamber. Powered by a modern turbo diesel engine and load-sensing pumps, the GCV80 guarantees optimum performance and efficiency under the most demanding conditions.

Optional

  • Lateral conveyor
  • Dust suppression system
  • Magnetic Overband
  • Under crusher discharge plate
  • Reverse crush
  • Automatic greasing unit


Download technical file
rev machine
rev machine
rev machine
rev machine
rev machine
rev machine
rev machine
rev machine

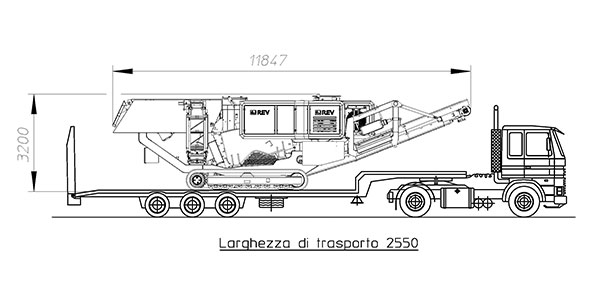

Transport dimensions

  • Length (mm)  | 11847
  • Width (mm)  | 2550
  • Height (mm)  | 3200
  • Weight (kg)  | 25360
rev machine

Working dimensions

  • Length (mm)  | 11830
  • Width (mm)  | 4603
  • Height (mm)  | 3860
  • Weight (kg)  | 25360
  • Inlet dimensions (mm)  | 815X580
  • CSS adjustment (mm)  | 25-110
  • Weight (kg)  | 8500

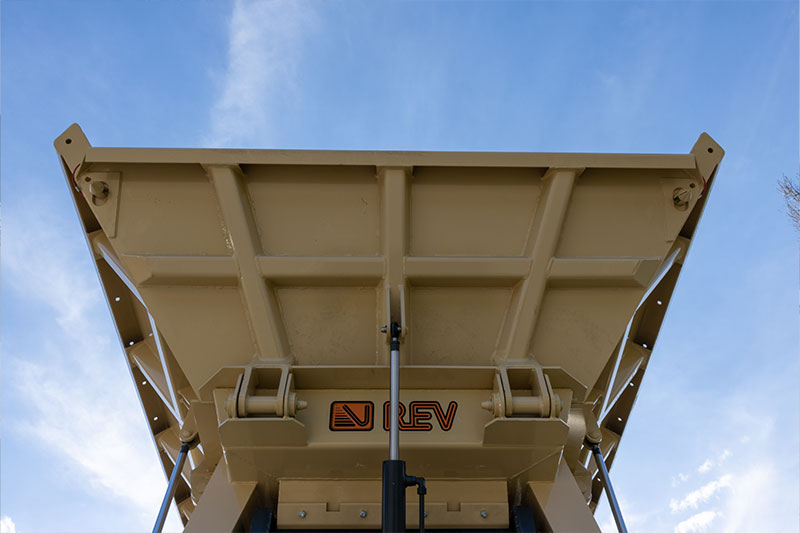

  • Feeding hopper  |
  • Standard capcity (m3)  | 5,5
  • Feed hight (mm)  | 3860
  • Vibrating Feeder  |
  • Width (mm)  | 800
  • Length (mm)  | 2700

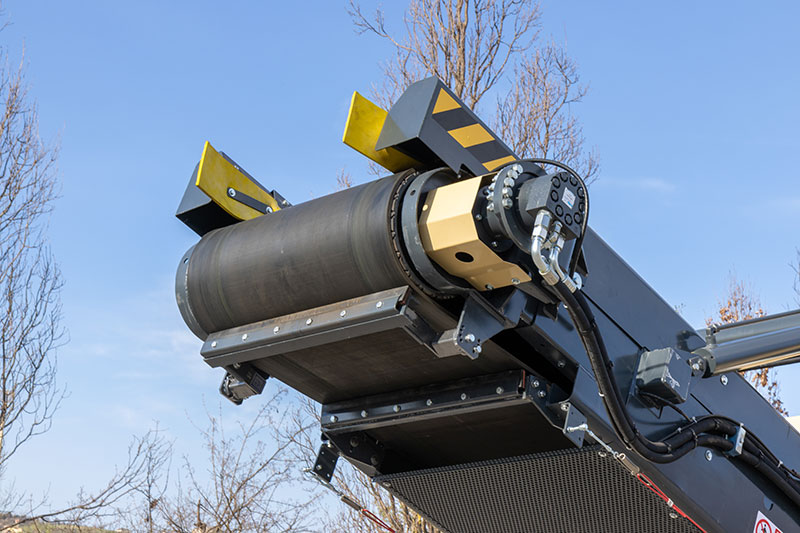

  • Main conveyor  |
  • Width (mm)  | 800
  • Length (mm)  | 2690
  • Side discharge conveyor  |
  • Width (mm)  | 400
  • Length (mm)  | 2160
  • Engine  | CAT Stage V
  • Power (kW)  | 130
  • Performance  |
  • Max feeding size (mm)  | 500
  • Hourly production ton/h  | up to 140
