GCV 60
ecological machines rev

GCV 60

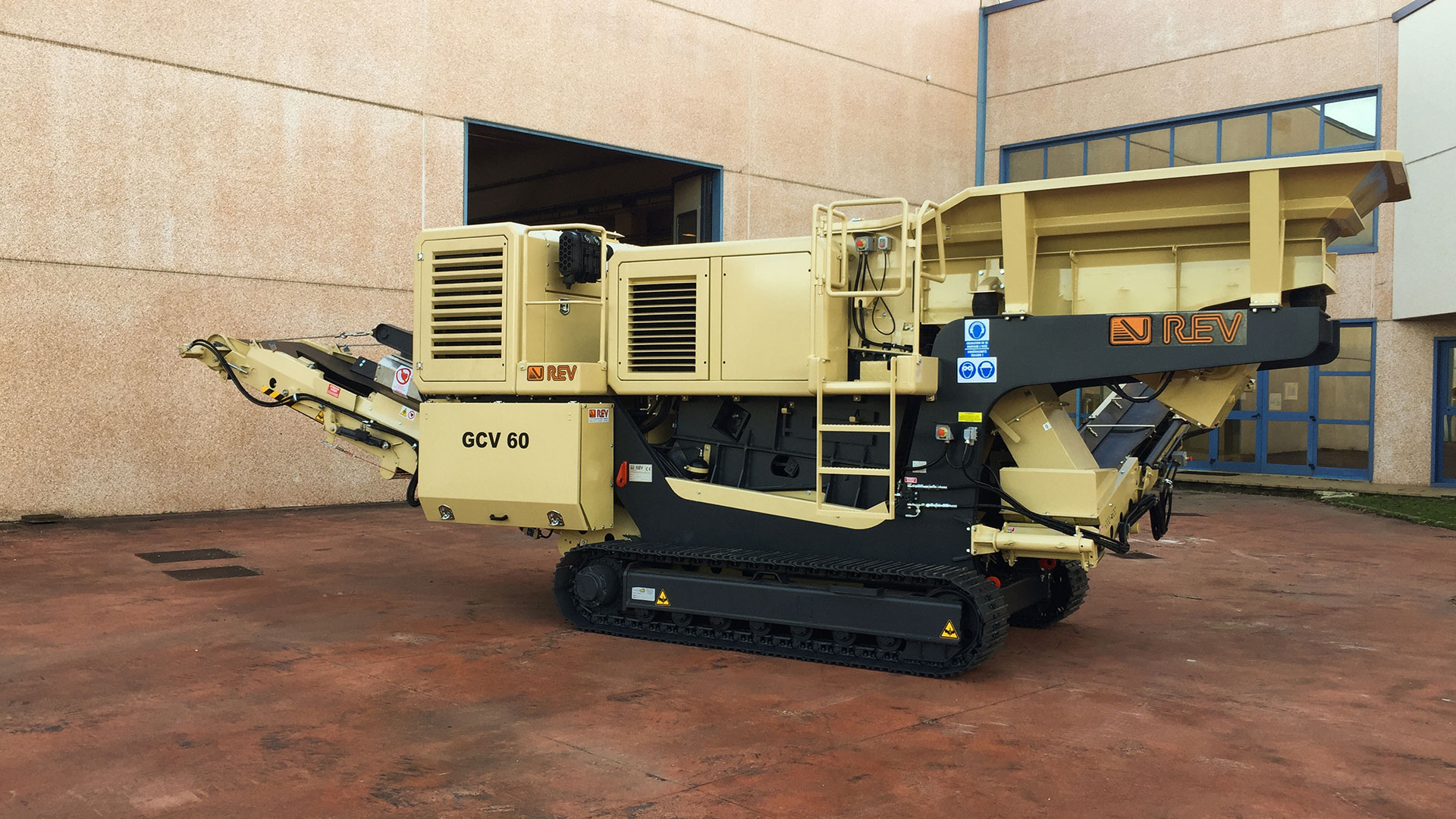

The GCV60 is a new standard for self-propelled crushing units. Weighing in at 13700 kg, the GCV 60 embodies all the expertise
 and top-quality features found in REV’s larger machines. Every detail reflects precision and durability, with a jaw crusher that

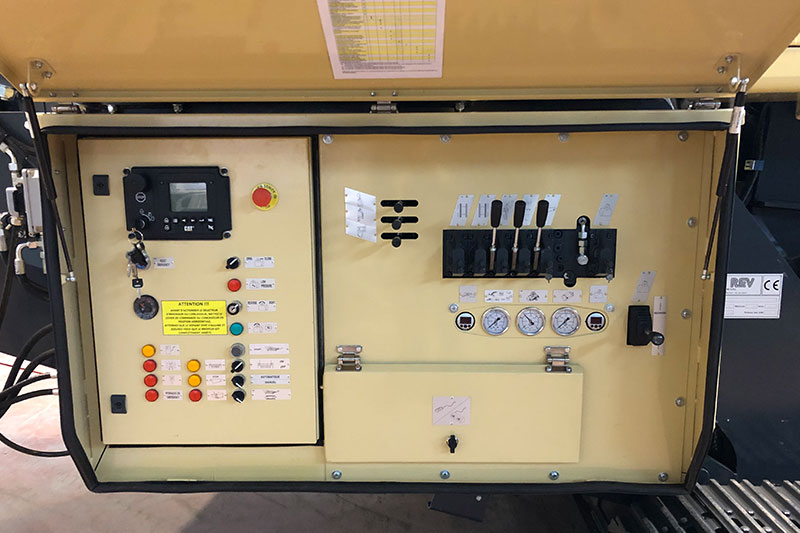

 weighs an impressive 4200 kg and is made with top-notch components. This fully hydraulic machine is equipped with load-sensing pumps and a state-of-the-art electronic turbocharged motor. It offers immediate controls, extreme ease of use, and
 maintenance.

Optional

  • Lateral conveyor
  • Dust suppression system
  • Magnetic Overband
  • Automatic greasing unit


Download technical file
rev machine
rev machine

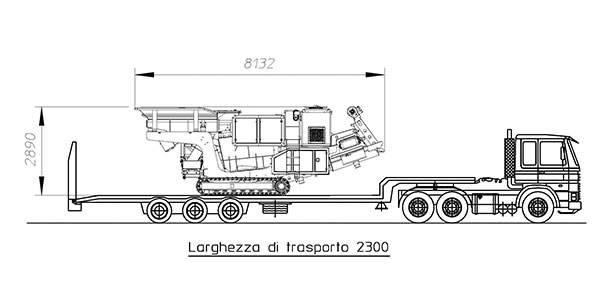

Transport dimensions

  • Length (mm)  | 8132
  • Width (mm)  | 2300
  • Height (mm)  | 2850
  • Weight (kg)  | 13700
rev machine

Working dimensions

  •  Length (mm)  | 9230
  •  Width (mm)  | 3400
  •  Height (mm)  | 2850
  •  Weight (kg)  | 13700
  • Inlet dimensions (mm)  | 610×480
  • CSS adjustment (mm)  | 20-100
  • Weight (kg)  | 4200
  • Feeding hopper  |
  • Standard capcity (m3)  | 3
  • Feed hight (mm)  | 2850
  • Vibrating Feeder  |
  • Width (mm)  | 650
  • Length (mm)  | 2300
  • Main conveyor  |
  • Width (mm)  | 800
  • Discharge height (mm)  | 2100
  • Side discharge conveyor  |
  • Width (mm)  | 400
  • Discharge height (mm)  | 1900
  • Engine  | CAT Stage V
  • Power (kW)  | 94
  • Performance  |
  • Max feeding size (mm)  | 400
  • Hourly production ton/h  | up to 80
