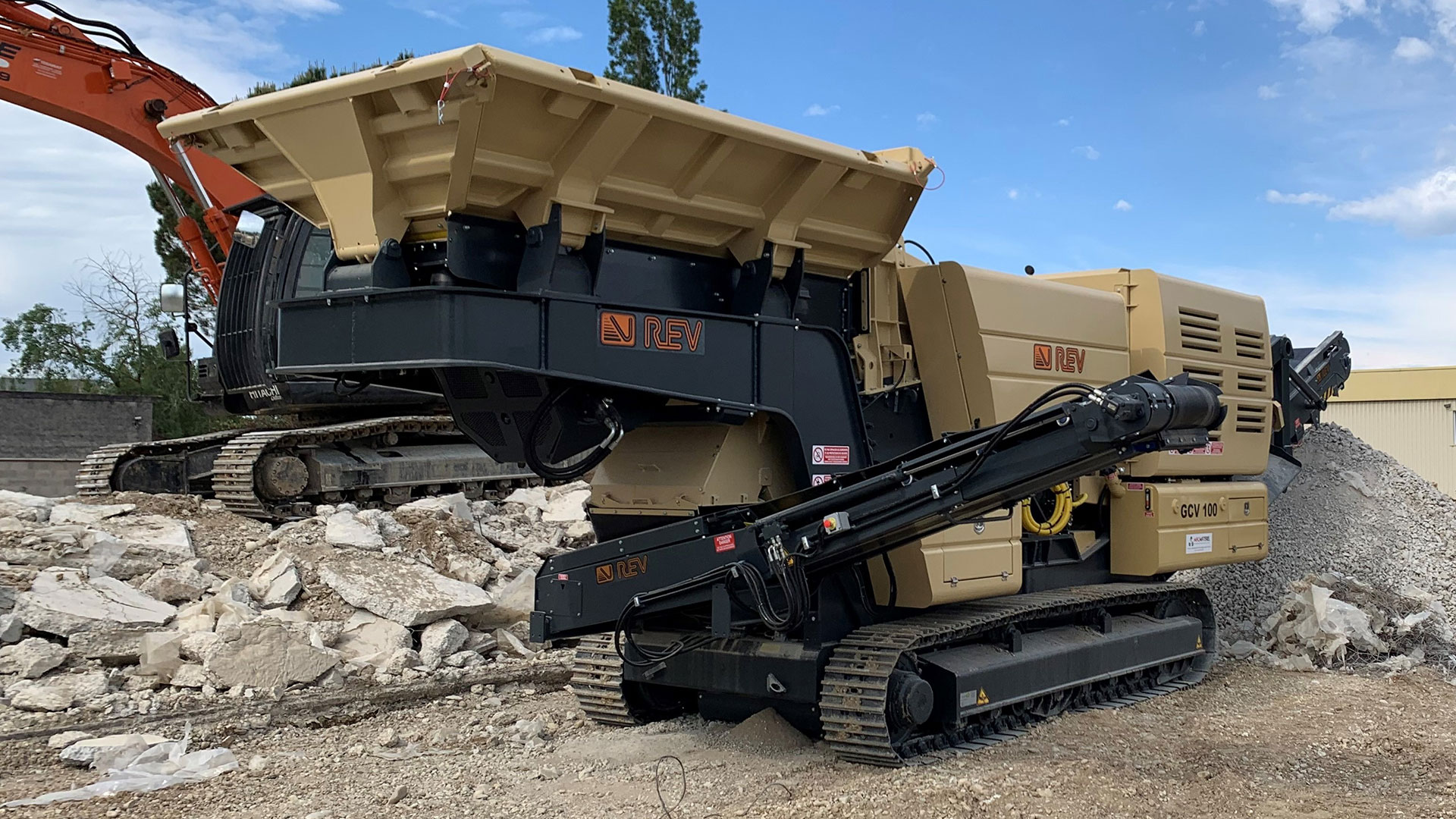

This compact and maneuverable unit is equipped with a jaw crusher with automatic hydraulic adjustment and control of the
jaw opening. Specially designed for medium and small operations where a large feed opening, high production rates and quick, easy maintenance are required, this fully hydraulic machine is equipped with load-sensing pumps and a latest generation

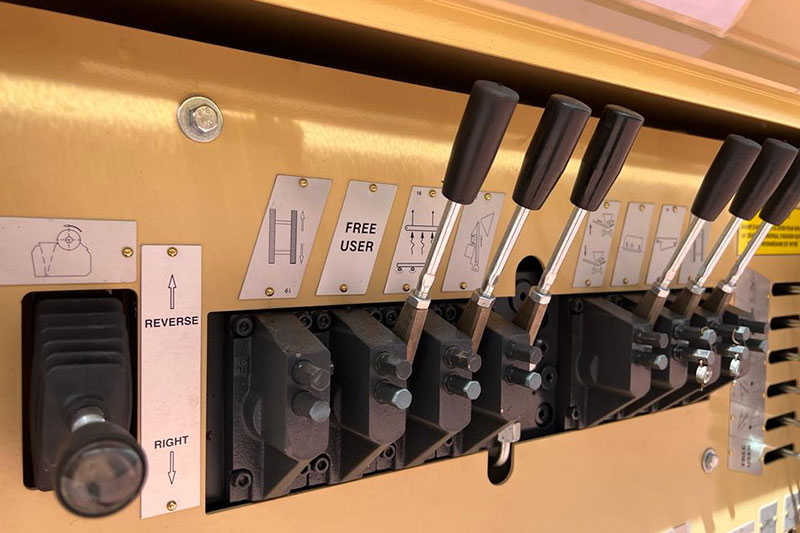

electronic turbo motor. Through its direct control, the machine is very user-friendly and low-maintenance.

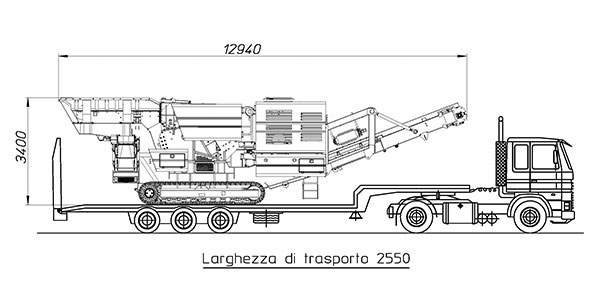

Transport dimensions
Working dimensions
Inlet dimensions (mm) | 1015x650
CSS adjustment (mm) | 25-120
Crusher weight (kg) | 130000
Feeding hopper |
Standard capacity (m3) | 4,5
Feed height (m) | 3,4
Vibrating feeder |
Width (mm) | 900
Length (mm) | 2700
Main conveyor |
Width (mm) | 800
Discharge height (mm) | 3100
Side discharge conveyor |
Width (mm) | 500
Discharge height (mm) | 2150
Engine | Stage V
Power (kW) | 151
Performance |
Max feeding size (mm) | 600
Hourly production ton/h | 80-180
