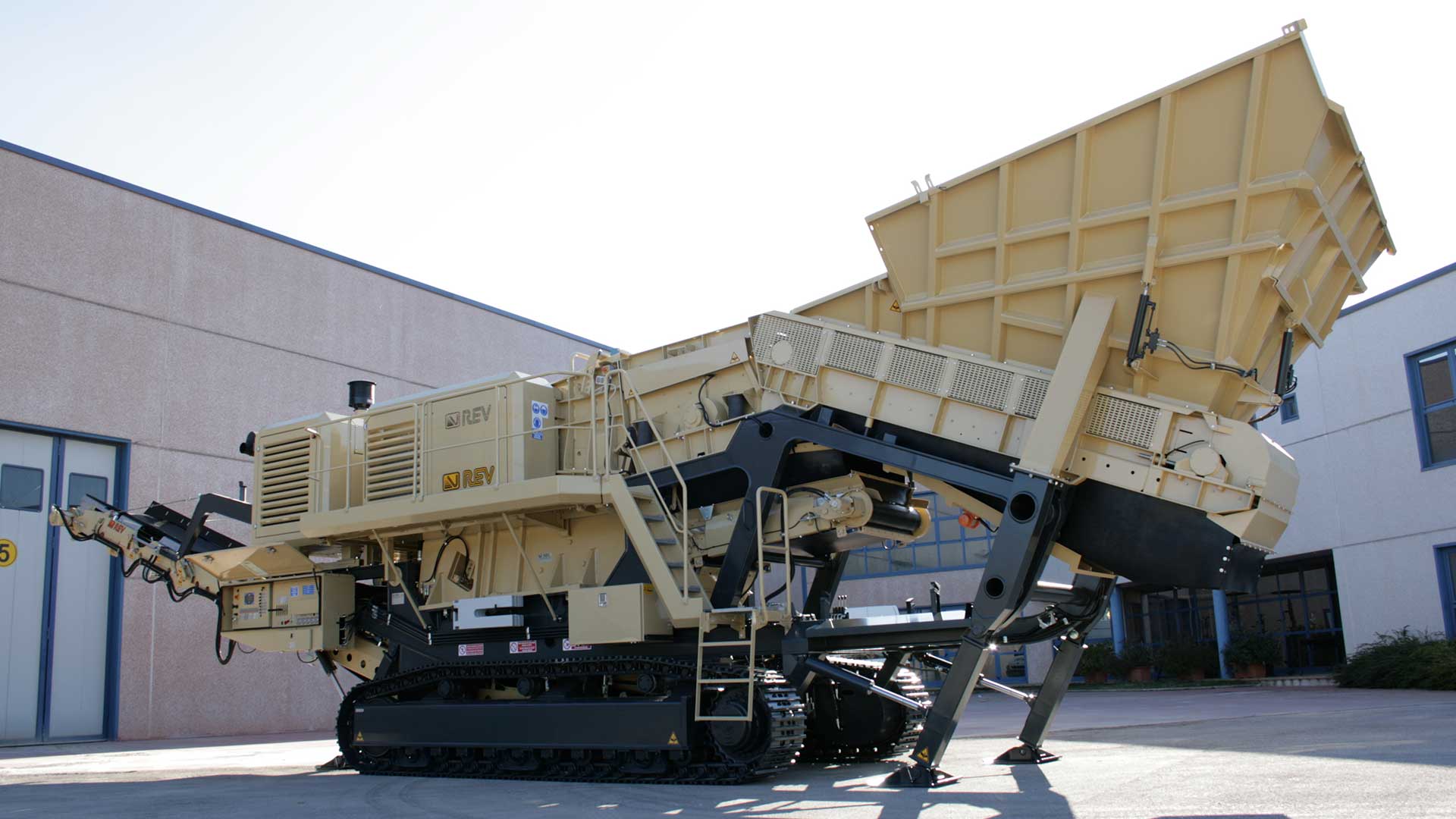

Heavy-duty mobile crushing unit with jaw crusher offering great production performance, suitable for large quarries and demolitions applications.
Continuous and homogeneous feeding is provided by the apron feeder and the vibrating scalper, combined with sturdy deck grid bars and a screen with special anti-clogging elements for perfect pre-screening. As an alternative, the vibrating Grizzly feeder. The hydrostatic transmissions are provided by Load Sensing pumps.
The feeding system entails the use of ultrasound sensors integrated with parameters of the Diesel engine, thus allowing optimized production and lower fuel consumption.

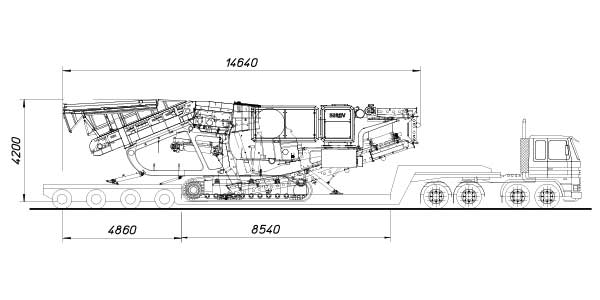

Transport dimensions

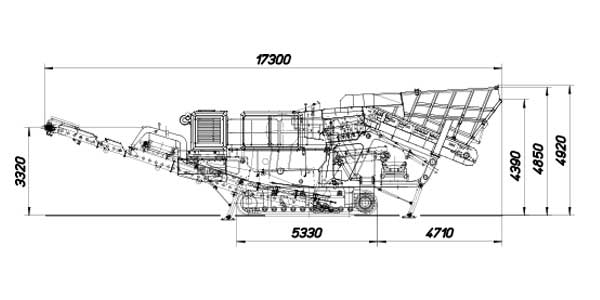

Working dimensions
Inlet dimensions (mm) | 1250x920
CSS adjustment (mm) | 50-200
Weight (kg) | 28000
Feeding hopper |
Standard capcity (m3) | 14
Feed hight (m) | 4900
Apron feeder |
Width (mm) | 1150
Length (mm) | 3900
Vibration chute with pre-screening |
Width (mm) | 1250
Length (mm) | 2300
Decks | 2
Main conveyor |
Width (mm) | 1200
Discharge height (mm) | 3300
Reversible conveyor |
Width (mm) | 1000
Length (mm) | 1800
Side discharge conveyor |
Width (mm) | 650
Discharge height (mm) | 3000
Engine |
Power (kW) | 261
Crawler tread widht (mm) |
Wheel base (mm) | 4400
Weight (kg) | 68000
Performance |
Max feeding size (mm) | 850
Hourly production ton/h | 150-450
