GCR 106

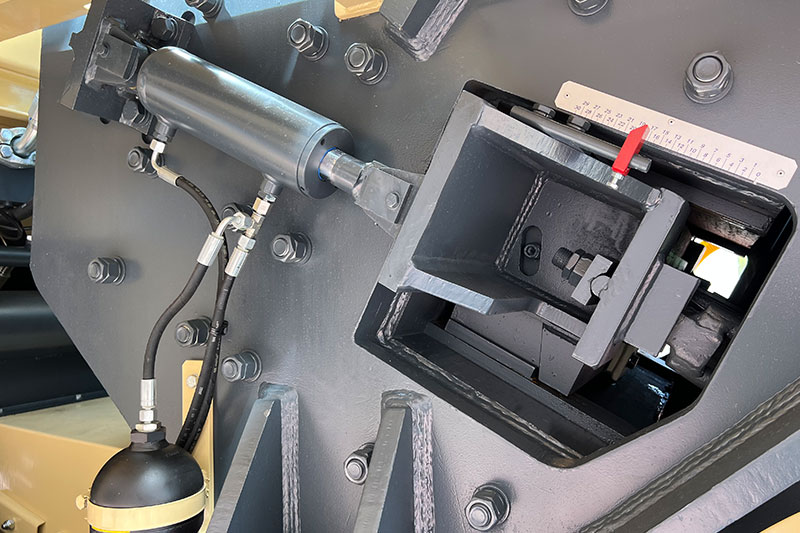

This machine stands out for its durability and reliability, even with the toughest, most abrasive materials. Designed for quarry use, it features jaw crushers that meet large primary crusher standards, ensuring exceptional performance. The hydraulic system allows for easy Closed Side Setting (CSS) adjustments and provides overload protection by automatically opening the chamber for uncrushable materials. A vibrating feeder and Grizzly pre-screen ensure consistent performance in demanding conditions, while a modern turbo diesel engine and load-sensing pumps optimize efficiency.

Optional

  • Dirt conveyor
  • Dust suppression system
  • Under crusher discharge plate
  • Reverse crush
  • Automatic greasing unit
  • Hydraulic foldable Hopper Walls
  • Diesel fueling pump


Download technical file
rev machine
rev machine
rev machine

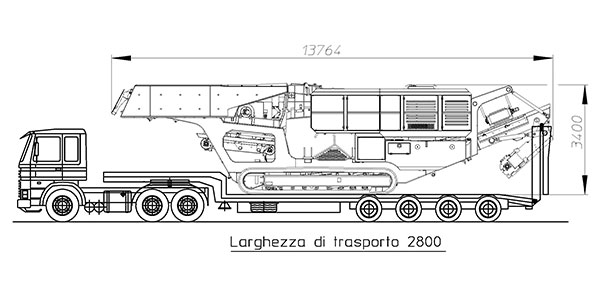

Transport dimensions

  • Length (mm)  | 13764
  • Width (mm)  | 2800
  • Height (mm)  | 3400
  • Weight (kg)  | 46500

Working dimensions

  • Length (mm)  | 15334
  • Width (mm)  | 2800
  • Height (mm)  | 4000
  • Weight (kg)  | 46500
  • Inlet dimensions (mm)  | 1060×800
  • CSS adjustment (mm)  | 30-120
  • Crusher weight (kg)  | 16500
  • Feeding hopper  |
  • Standard capacity (m3)  | 7
  • Feed height (mm)  | 4200
  • Vibrating feeder  |
  • Width (mm)  | 1000
  • Length (mm)  | 2400
  • Vibrating screen  |
  • Width (mm)  | 1050
  • Length (mm)  | 2300
  • Decks  | 2
  • Main conveyor  |
  • Width (mm)  | 1000
  • Discharge Height (mm)  | 3300
  • Reversible conveyor  |
  • Width (mm)  | 750
  • Length (mm)  | 2000
  • Side discharge conveyor  |
  • Width (mm)  | 650
  • Discharge height (mm)  | 2900
  • Engine  |
  • Power (kW)  | 187
  • Performance  |
  • Max feeding size (mm)  | 750
  • Hourly production ton/h  | 120-300
