GCV 10.66

The GCV 10.66 is a self-propelled unit with great flexibility and maneuverability, equipped with an impact crusher that delivers excellent performance and high-quality end products. It is suitable for crushing rock and natural materials, as well as for
 processing demolition debris to recycle concrete waste and recover milled asphalt.

Optional

  • Vibrating screen
  • Dimensions: 3500×1250
  • Dust suppression system
  • Automatic greasing unit
  • Diesel fueling pump



Download technical file

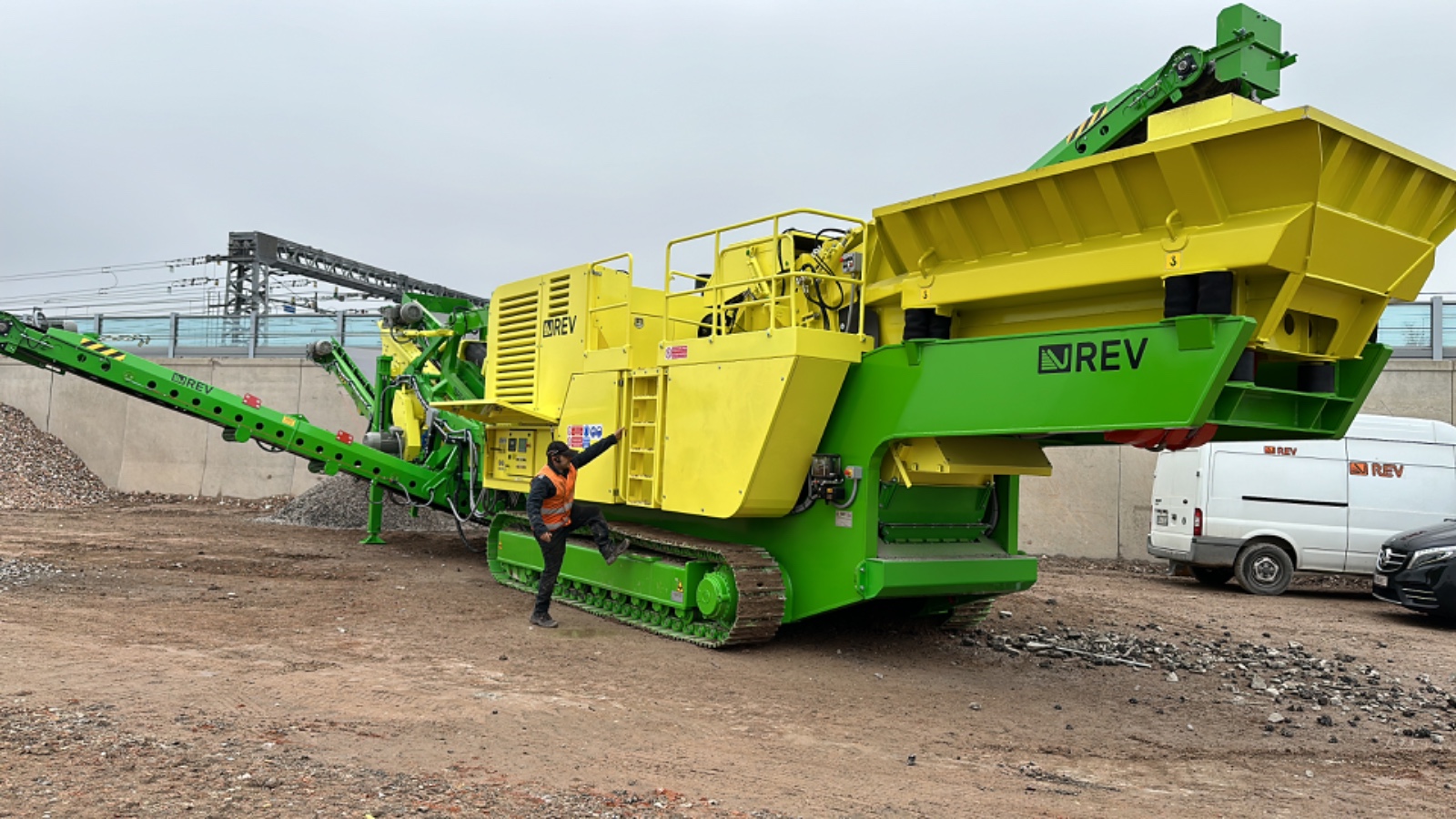

rev machine

Transport dimensions

  •  Length (mm)   12800
  •  Width (mm)   2550
  •  Height (mm)   3300
  •  Weight (kg)   32000



Transport dimensions Screen

  • Length (mm) 8000
  • Width (mm) 2300
  • Height (mm) 2790
  • Weight (kg) 5800


Working dimensions

  • Length (mm) 15000
  • Width (mm) 2550
  • Height (mm) 3800
  • Inlet dimensions (mm)   1010 x 660
  • CSS adjustment (mm)   20-130
  • Blow bars   4
  • Feeding hopper
  • Standard capacity (m3)   4
  • Feed height (mm)   3500
  • Vibrating Feeder
  • Width (mm)   1000
  • Length (mm)   3250
  • Main conveyor
  • Width (mm)   1000
  • Discharge height (mm)   3300
  • Engine
  • Power (kW)   224
  • Track
  • Wheel base (mm)   3400
  • Performance
  • Max feeding size (mm)   550
  • Hourly production ton/h   120-280
  • Transport dimensions
  • Length (mm)   12800
  • Width (mm)   2550
  • Height (mm)   3300
  • Weight (kg)   32000
  • Transport dimensions Screen
  • Length (mm)   8000
  • Width (mm)   2300
  • Height (mm)   2790
  • Weight (kg)   5800
  • Working dimensions
  • Length (mm)   15000
  • Width (mm)   2550
  • Height (mm)   3800
