TEUTON ZS 55

TEUTON ZS 55

The Shredder for Large Quantities

Product Highlights

  • Easily exchangeable and robust rotor tools with double screw connection
  • Long-life "Marathon" shredding rotor (resistant to contaminants)
  • Perfect material feed due to 4.5 m wide feed area
  • Tool-free cutting gap adjustment in six stages


Stationary (ZS 55)

(electro-hydraulic)

  • Power:
  • 2 x 160 kW
  • Throughput:
  • Up to 120 t/h
  • Weight:
  • 30,400 kg


TEUTON ZS 55

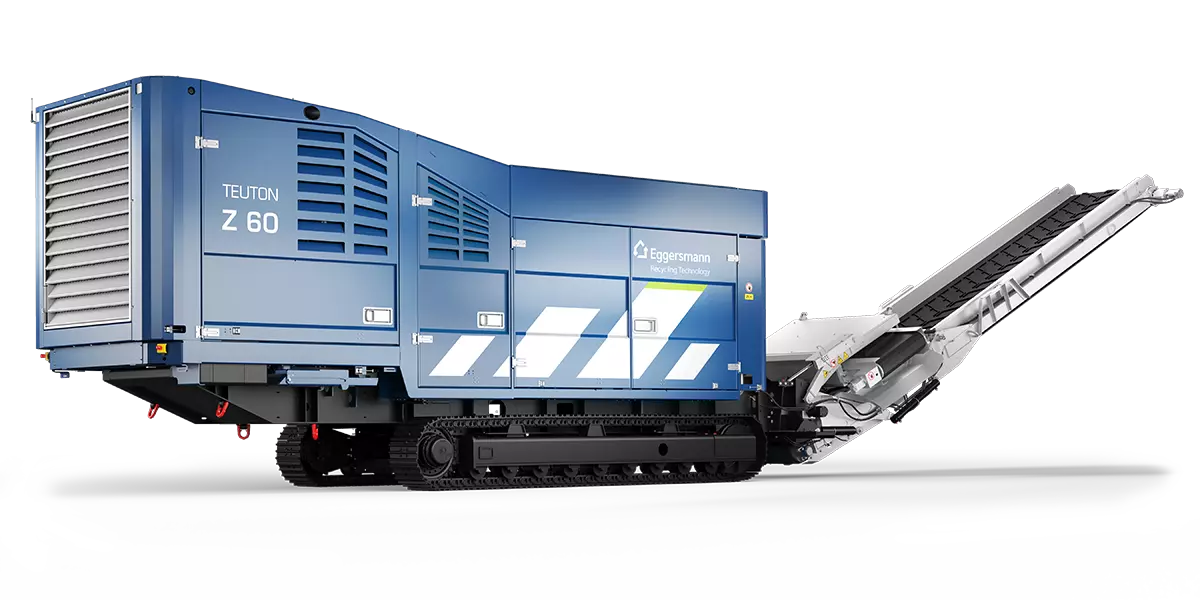

Tracks (Z 60)

(diesel-hydraulic)


  • Power:
  • 447 kW (600 HP)
  • Throughput:
  • Up to 120 t/h
  • Weight:

34,000 kg



TEUTON ZS 55

Semi-Trailer (Z 60)

(diesel-hydraulic)

  • Power:
  • 447 kW (600 HP)
  • Throughput:
  • Up to 120 t/h
  • Weight:
  • 32,000 kg


TEUTON ZS 55

Our Eggersmann TEUTON ZS 55 is even bigger and even more powerful. Consequently, even the most resistant material succumbs to its 2x 160 kW rotor. Maximum power and maximum precision - that's the TEUTON ZS 55.

Which Materials can be Processed?

Features

ecological technik product image

 Shredding Unit

The spiral-arranged tools of the durable Marathon rotor make the best possible use of the torque. Maximum pressure is exerted on the material.


 Reversing Rotor

The hydromechanical drive reverses the motor in the event of resistance. This makes the TEUTON extremely efficient – even with difficult materials – and offers protection against interfering objects.


ecological technik product image

 Maintenance

The fully illuminated engine compartment is easily accessible thanks to the large maintenance doors.


ecological technik product image

 Shredding Hood

The hydraulically swing-out shredding hood gives you free access to the working area.


ecological technik product image

 Screwed Tools

Easily replaceable rotor tools

Double screw connection for secure hold


ecological technik product image

Shredding Hood

The hydraulically swing-out shredding hood gives you free access to the working area.


ecological technik product image

Cutting Gap Adjustment

You can choose between eleven different settings for a predefined end grain.


ecological technik product image

Tool-free Change

No tools are required for the adjustment of the cutting gap.


ecological technik product image

Rear Conveyor Belt

Infinitely adjustable discharge height (max. 5 m)

Extra wide conveyor belts for blockage-free discharge


ecological technik product image

Large Infeed Area

Whether wheel loader or crane - with its 4.5 m wide loading area, the Z 60 is very easy and quick to load.


Options

Technical Data TEUTON ZS 55

  •
  • Power (kW)
  • Rotor speed (rpm)


  • Stationary
  • 2 x 160
  • 20 - 40


  • Trracks
  • 447
  • 20 - 40


  • Semi-Trailer
  • 447
  • 20 - 40


  • Working Position
  • Length (mm)
  • Width (mm)
  • Loading edge (mm)
  • Discharge height (mm)


  • Stationary
  • 4,875
  • 2,600
  • 3,900
  • /


  • Tracks
  • 14,950
  • 2,550
  • 3,200
  • 5,000


  • Semi-Trailer
  • 15,900
  • 2,550
  • 3,400
  • 5,600
  • Transport Dimensions
  • Length (mm)
  • Height (mm)
  • Width (mm)


  • Stationary
  • /
  • /
  • /


  • Tracks
  • 9,270
  • 3,750
  • 2,550


  • Semi-Trailer
  • 9,850
  • 3,990
  • 2,550
