Shredding of Biomass and Leightweight Packaging
Product Highlights
The BRT HARTNER ARCTOS BM 36 is a multi-purpose shredder with an energy-efficient 200 kW motor for the fine processing of private and municipal waste like biomass or leightweight packiging. The powerful shredding prepares the material optimally for composting or biogas production. Maintenance and repair are particularly easy, as all wear segments are bolted into the working chamber.
If difficult materials are detected by means of resistance measurement, the rotor reverses automatically. The adjustable control programme specifically differentiates between materials that cannot be shredded and those that are hard to shred. This makes the ARCTOS efficient in difficult materials and offers safety against contaminants.

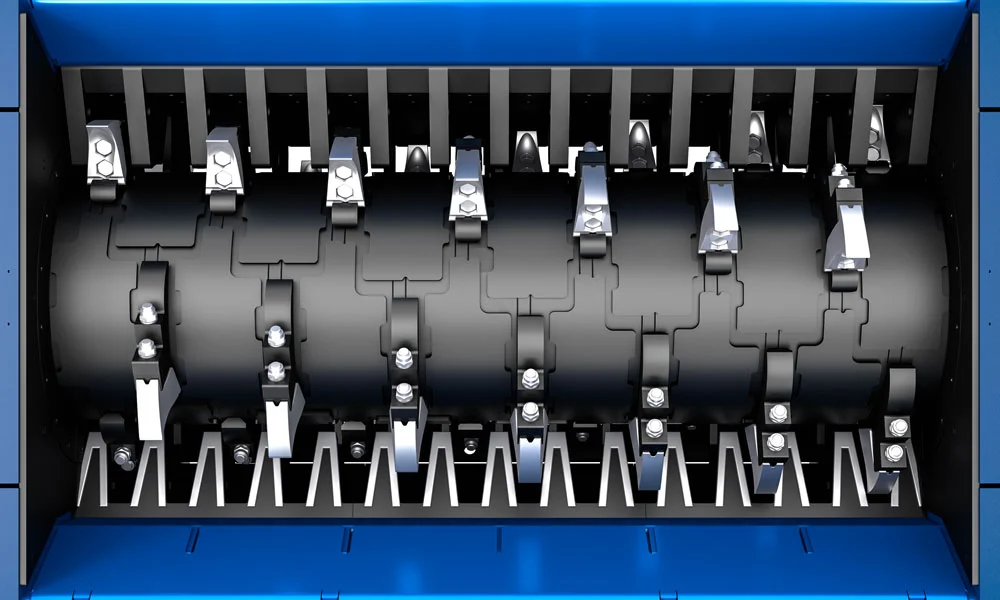

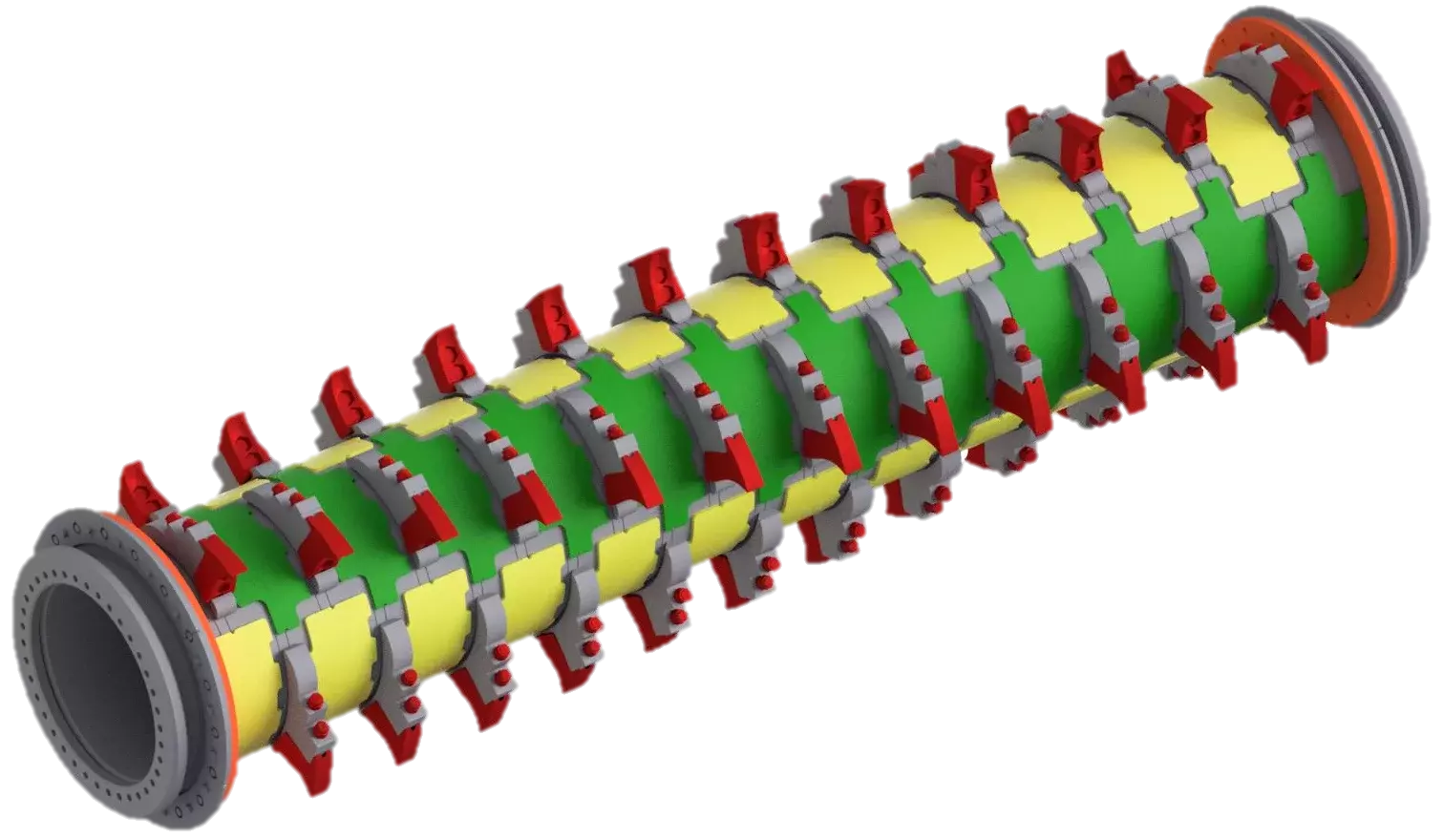

Easily replaceable rotor tools
Double screw connection for secure hold

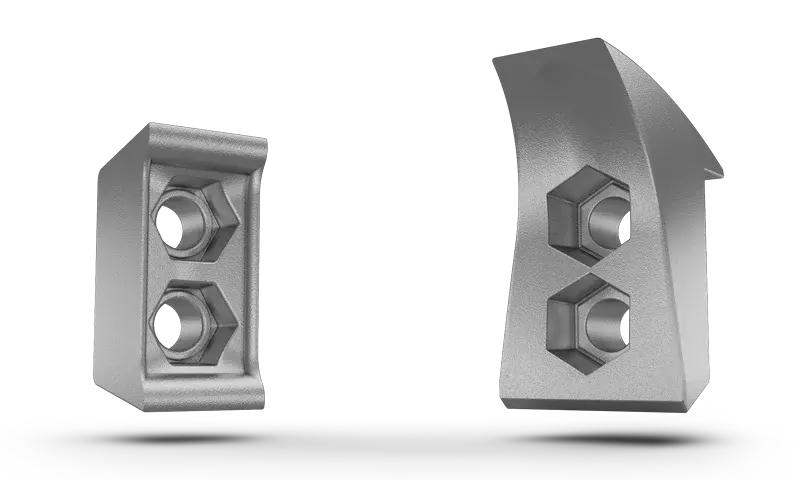

Twincut (left)
→ For particularly difficult materials
Mulitgrip (right)
→ Universal tool

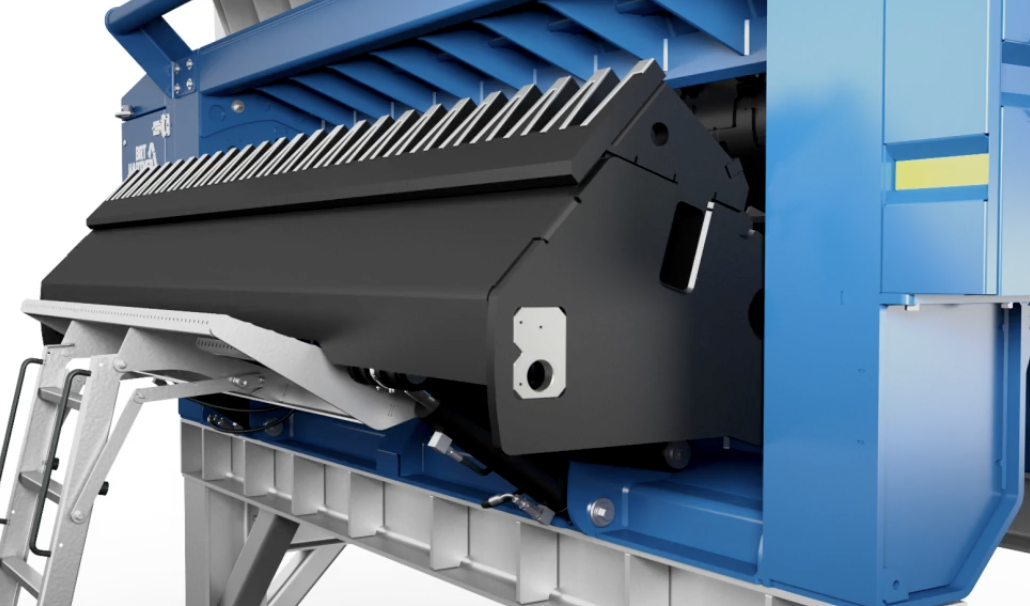

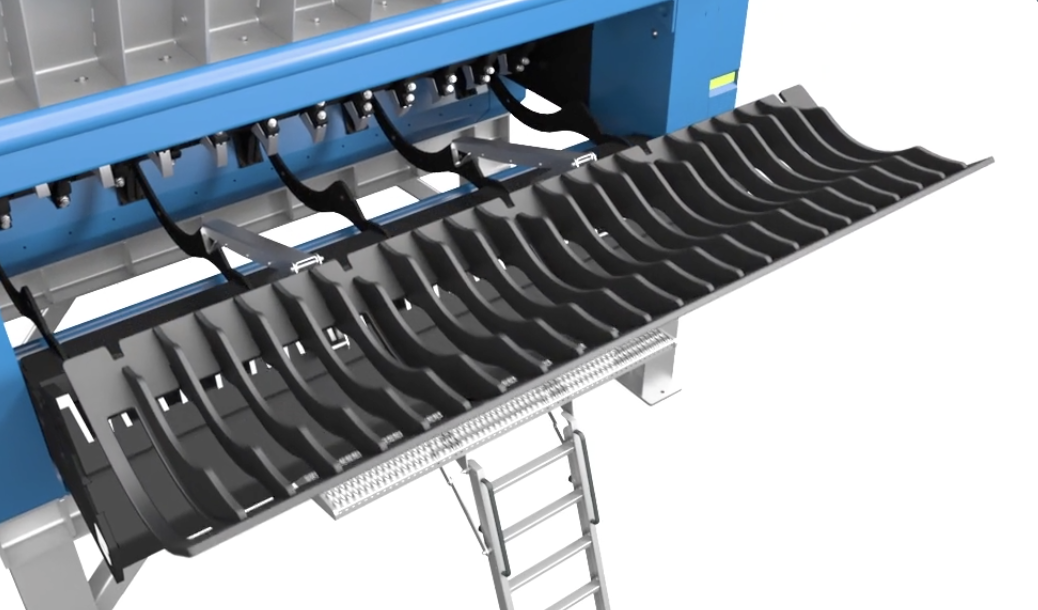

The hydraulically swing-out shredding hood gives you free access to the working area.

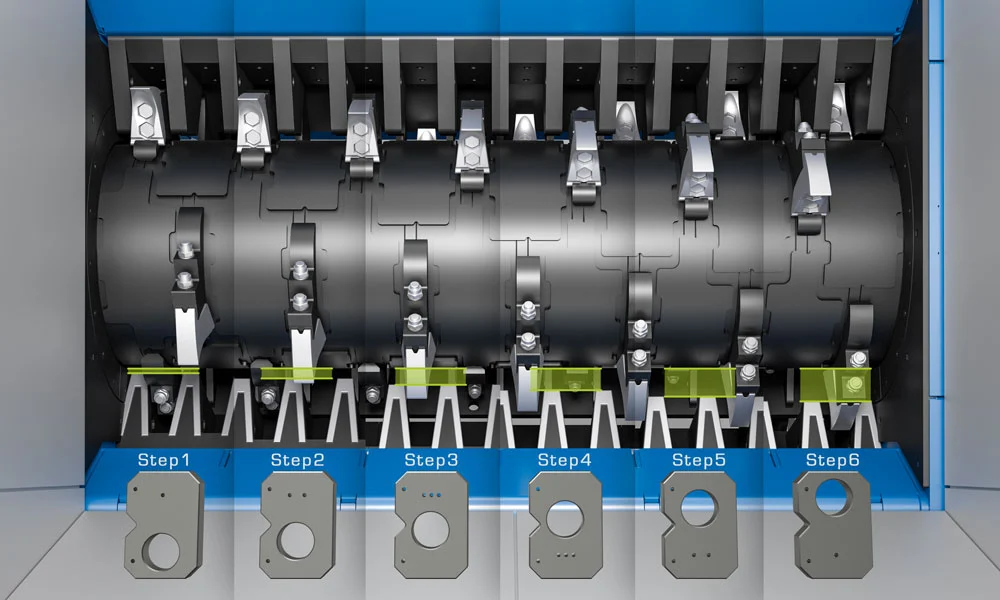

You can choose between six different settings for a predefined end grain.
No tools are required for the adjustment of the cutting gap.

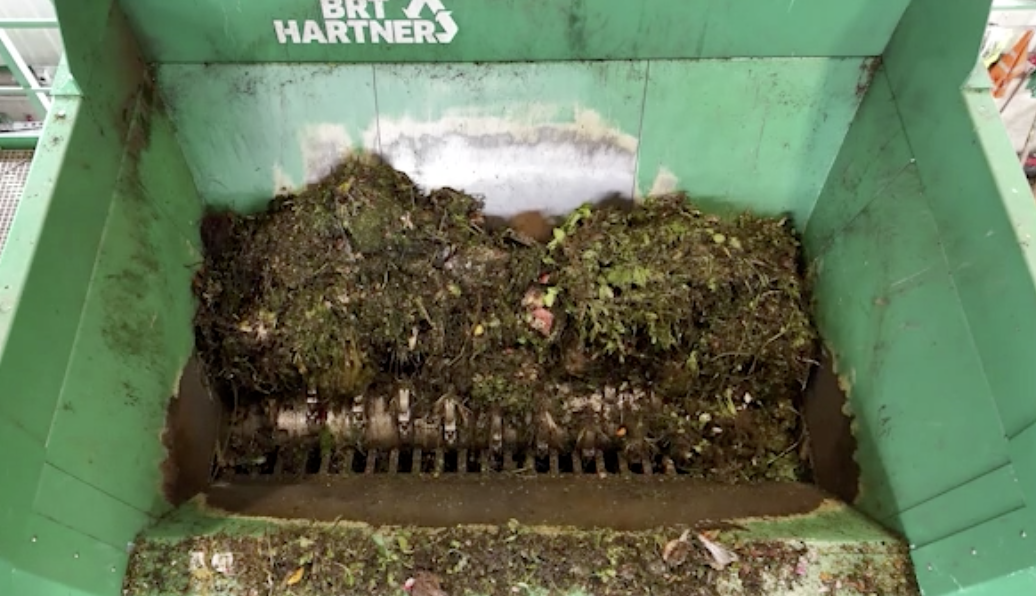

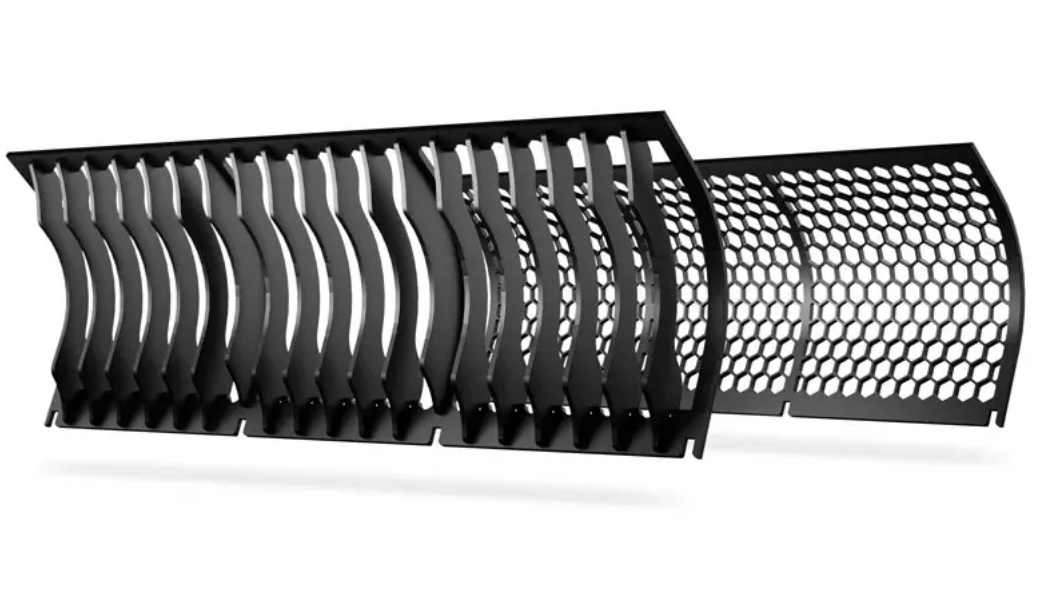

To produce a marketable final grain size in just one pass, we offer you a screen basket system.
You can choose between strip and hex shaped screen baskets in various sizes to suit your input material.

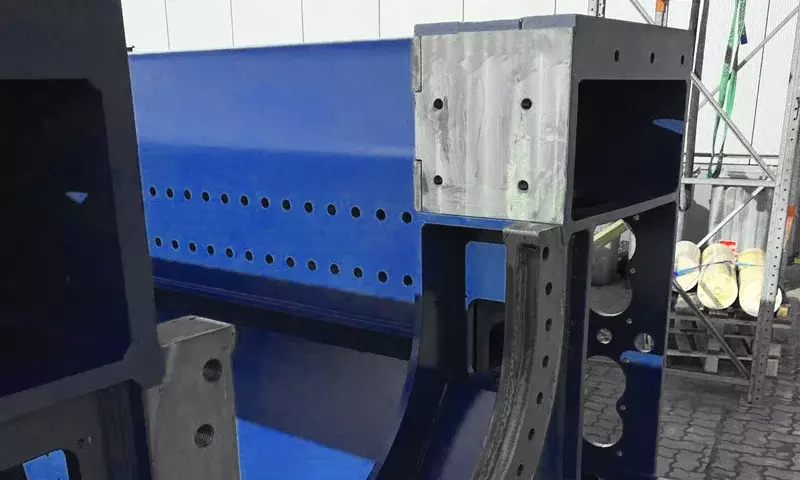

Robust construction

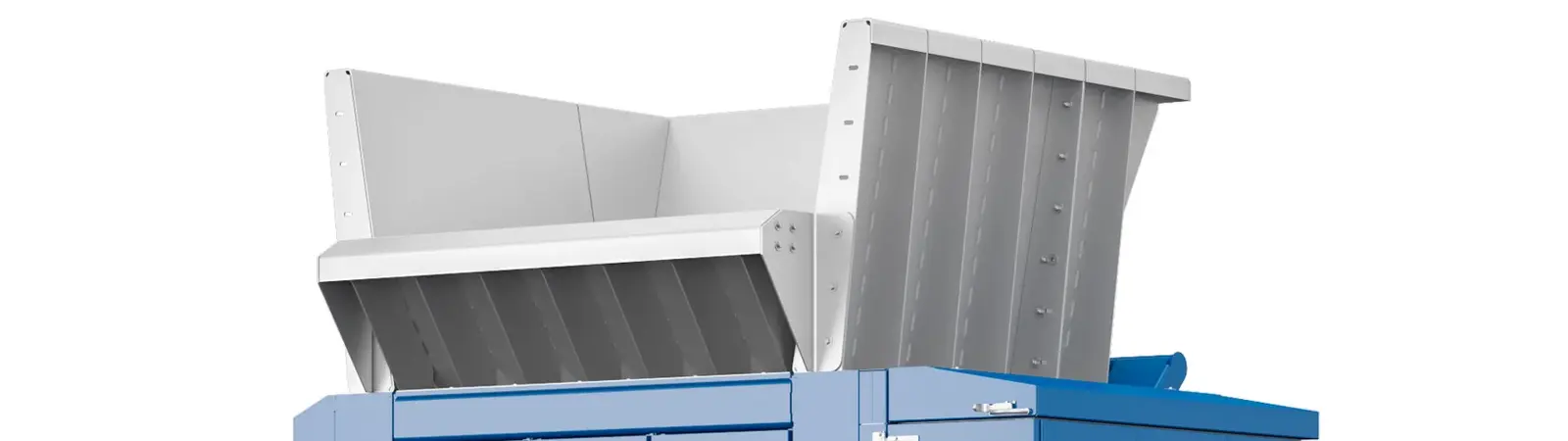

Better height for feeding
Space for different conveyor belt widths

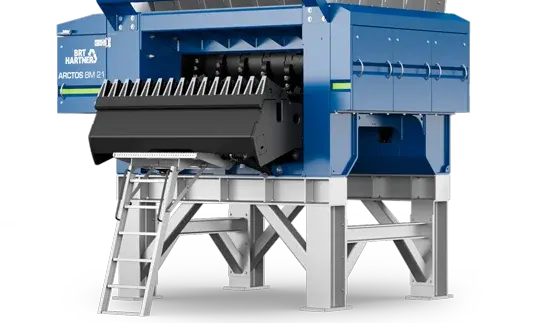

With a loading width of 2.9 m and a feed width of 2.1 m, the ARCTOS BM 21 allows you to conveniently load with most wheel loaders.
Comb elements individually screwed together
→ Easy to change
→ Postal shipping possible (20 kg)

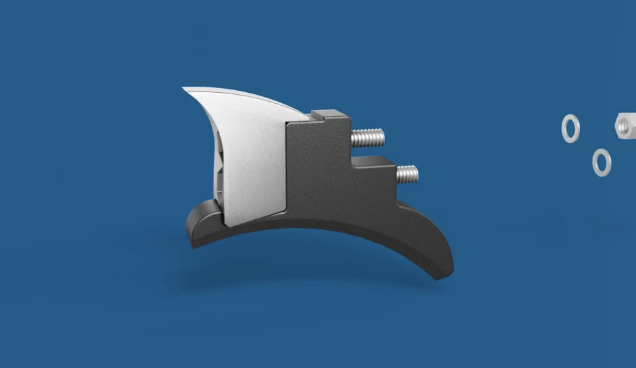

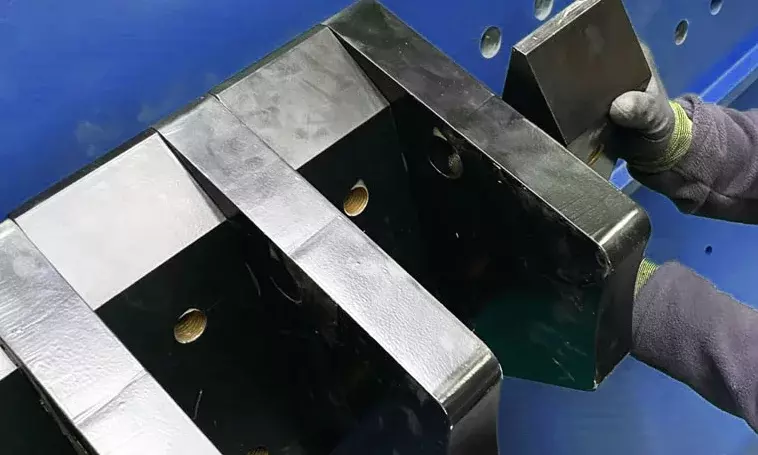

Segmented counter tools
→ Socket pin system
→ No lifting gear for changing
Multi-unit Marathon plate segmentation for easy, partial replacement

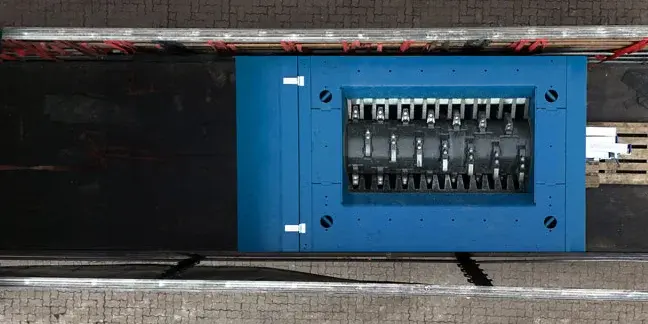

Removable bearing bridges allow the rotor to be removed vertically.
Double-walled lead-through for the rotor
Shipping without overwidth

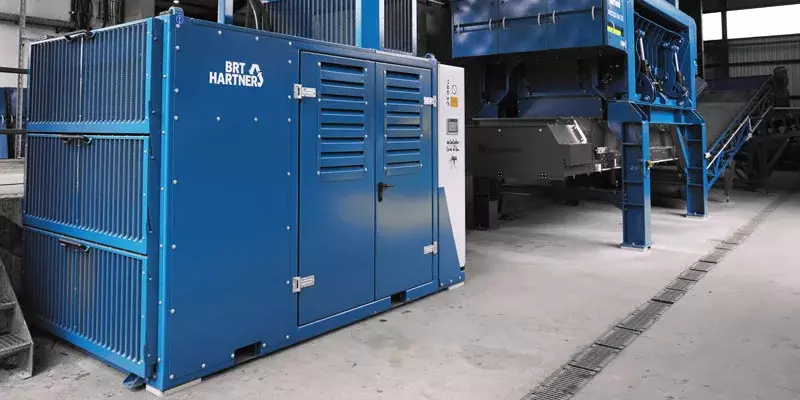

Motor, oil tank and control system in separate control unit
→ Outside the danger zone
→ Particularly easy maintenance
→ Pre-wired design
