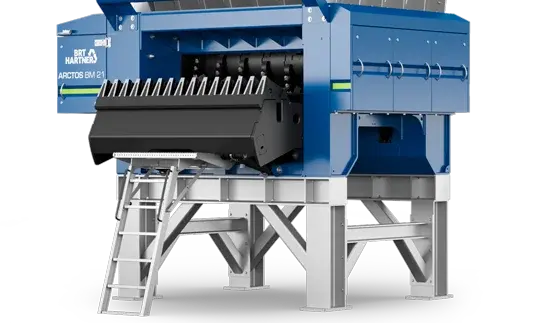

Compact High-Performance Shredder
Product Highlights

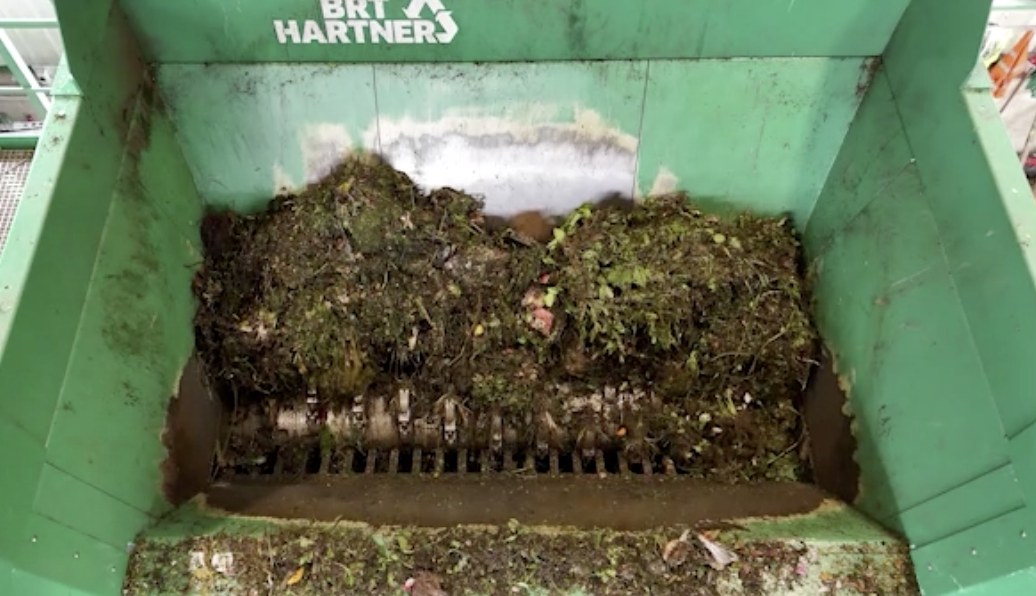

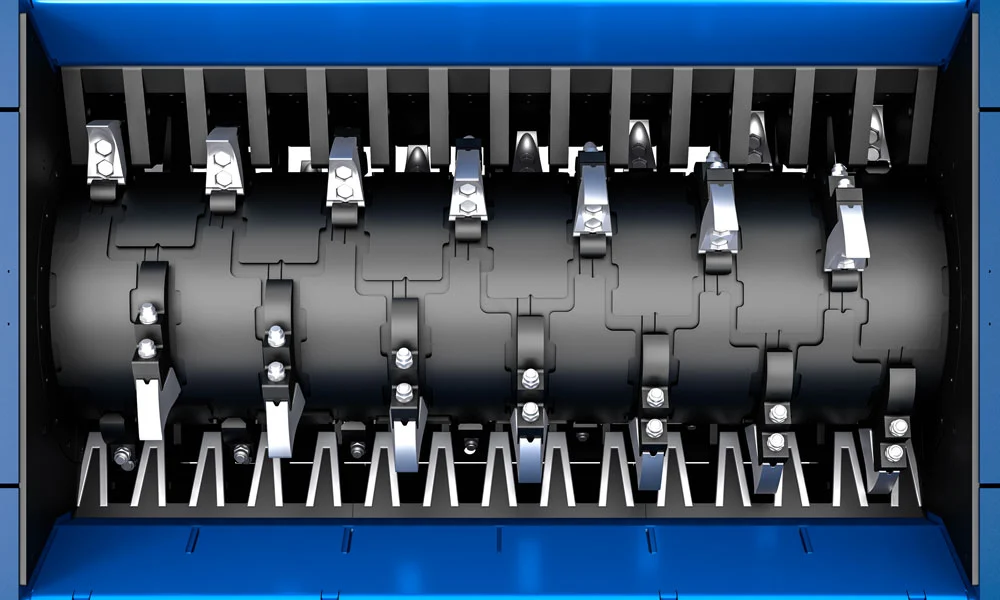

The BRT HARTNER ARCTOS BM 21 is a compact multi-purpose shredder . The rotor of the single-shaft shredder has 28 tools for precise shredding of the material. Together with its energy-efficient 200 kW motor, it is not only ideal for processing biomass and lightweight packaging, but also impresses with municipal, commercial and industrial waste. For particularly high machine availability, all wear parts are bolted and can therefore be quickly changed.
If difficult materials are detected by means of resistance measurement, the rotor reverses automatically. The adjustable control programme specifically differentiates between materials that cannot be shredded and those that are hard to shred. This makes the ARCTOS efficient in difficult materials and offers safety against contaminants.

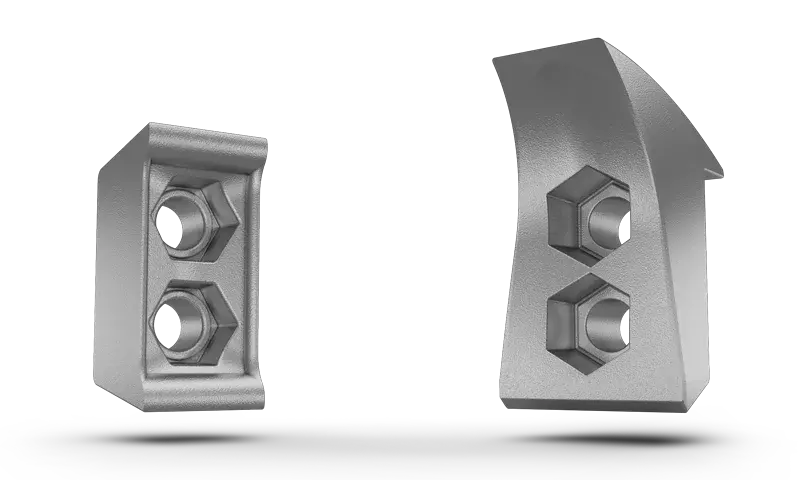

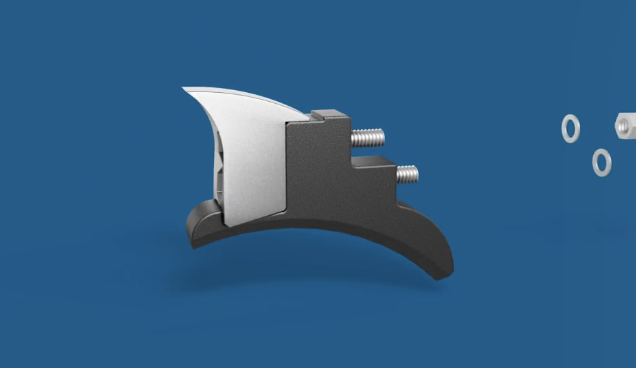

Easily replaceable rotor tools
Double screw connection for secure hold
Twincut (left)
→ For particularly difficult materials
Mulitgrip (right)
→ Universal tool

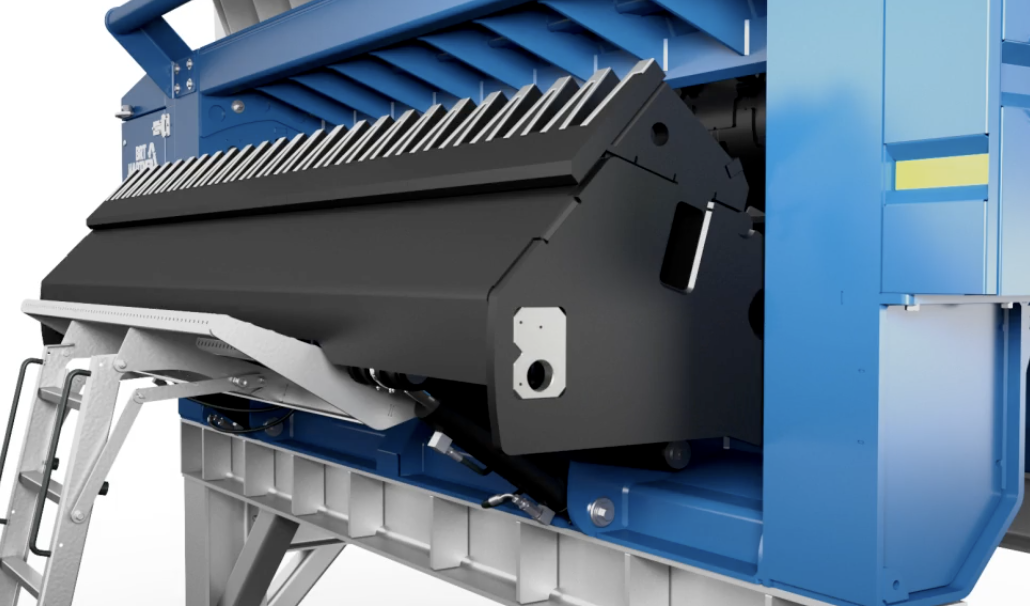

The hydraulically swing-out shredding hood gives you free access to the working area.

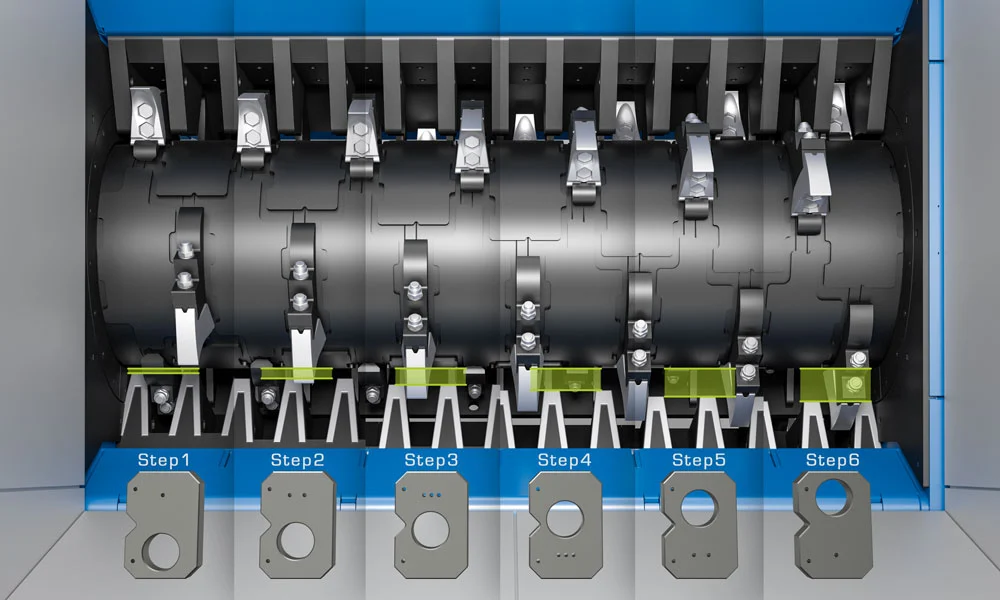

You can choose between six different settings for a predefined end grain.
No tools are required for the adjustment of the cutting gap.

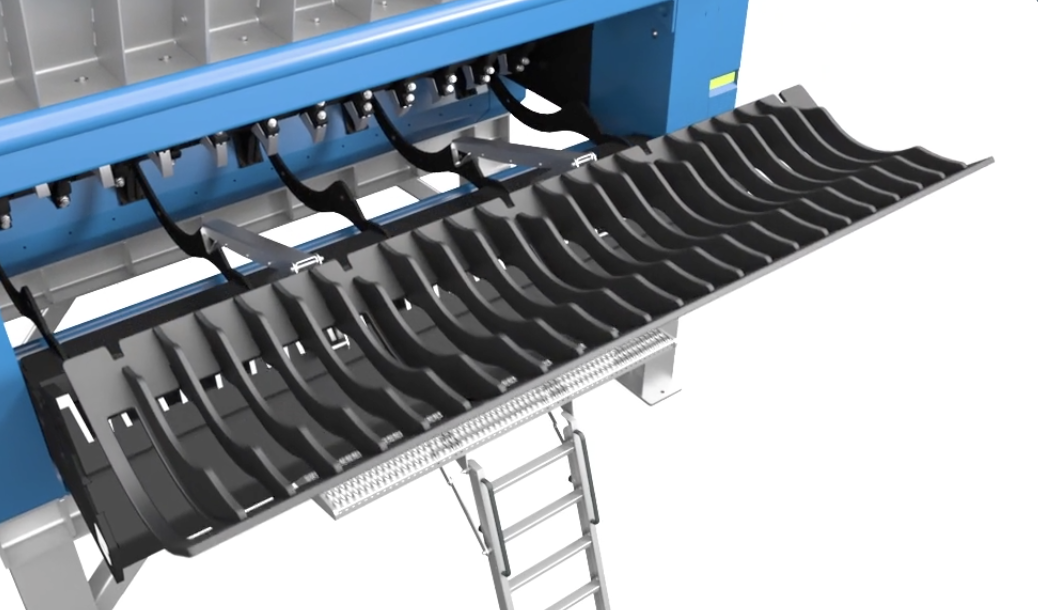

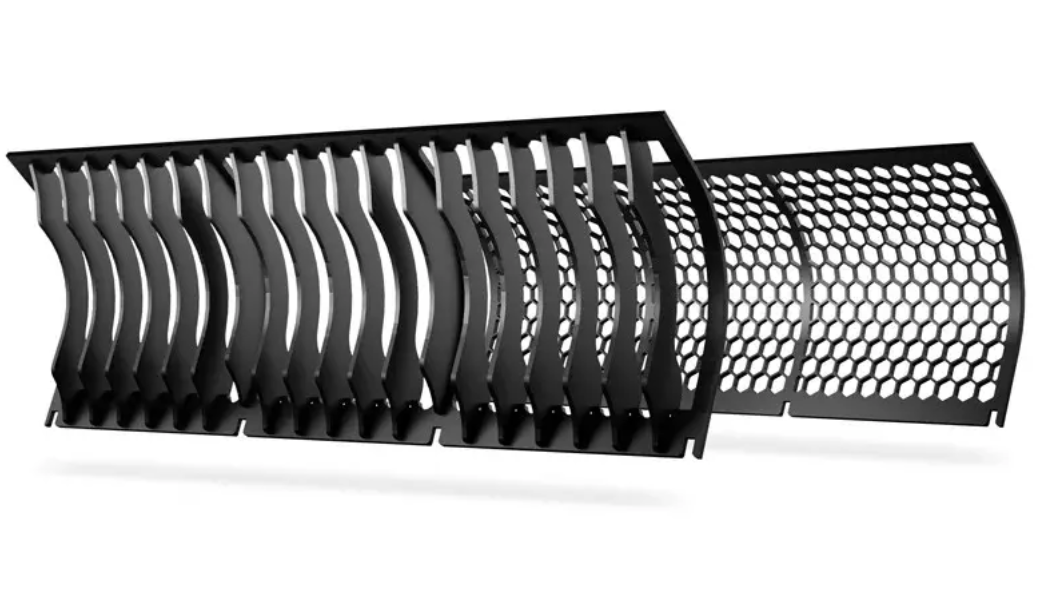

To produce a marketable final grain size in just one pass, we offer you a screen basket system.
You can choose between strip and hex shaped screen baskets in various sizes to suit your input material.

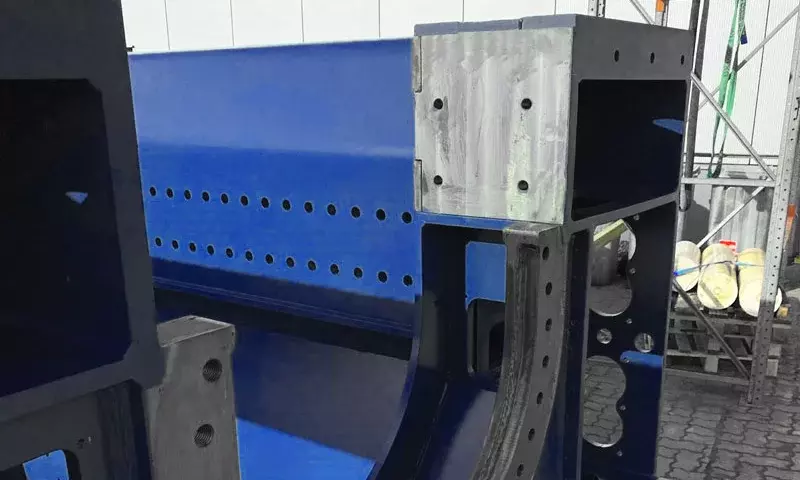

Robust construction
Better height for feeding
Space for different conveyor belt widths

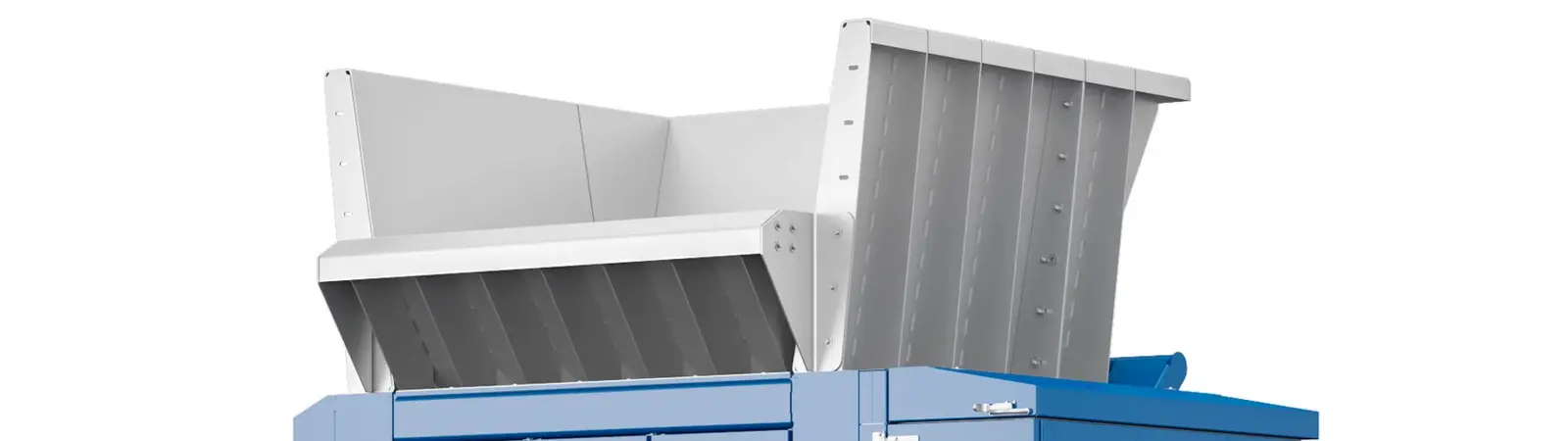

With a loading width of 2.9 m and a feed width of 2.1 m, the ARCTOS BM 21 allows you to conveniently load with most wheel loaders.

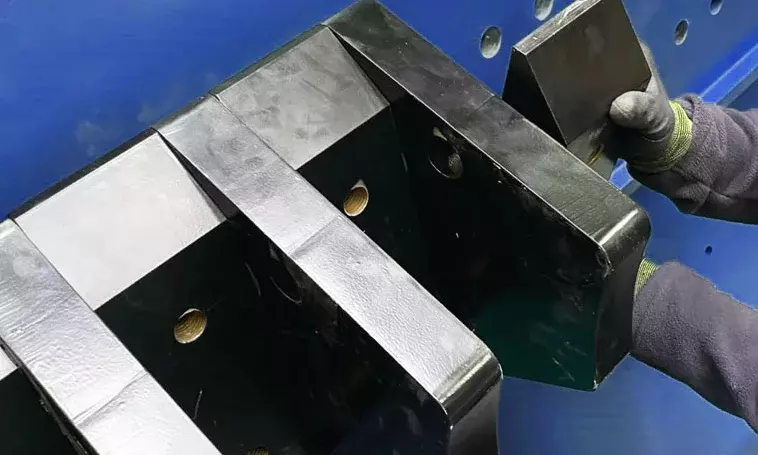

Comb elements individually screwed together
→ Easy to change
→ Postal shipping possible (20 kg)
Segmented counter tools
→ Socket pin system
→ No lifting gear for changing

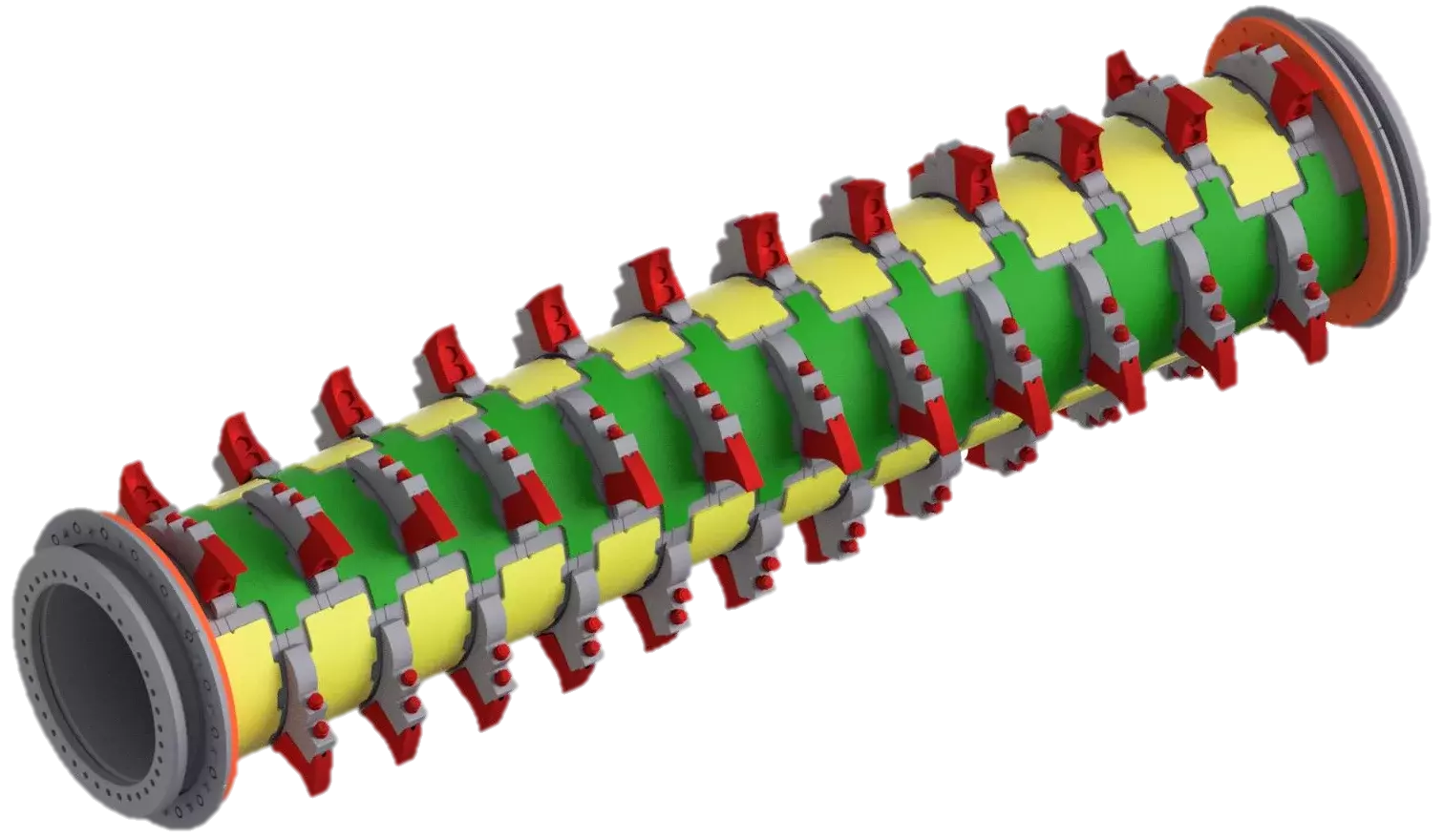

Multi-unit Marathon plate segmentation for easy, partial replacement

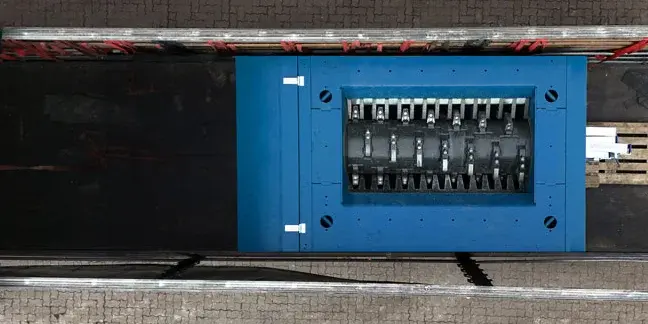

Removable bearing bridges allow the rotor to be removed vertically.
Double-walled lead-through for the rotor
Shipping without overwidth

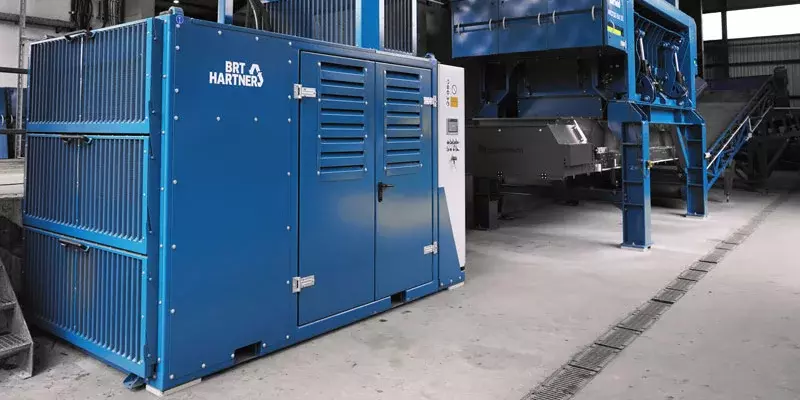

Motor, oil tank and control system in separate control unit
→ Outside the danger zone
→ Particularly easy maintenance
→ Pre-wired design
