Product Highlights

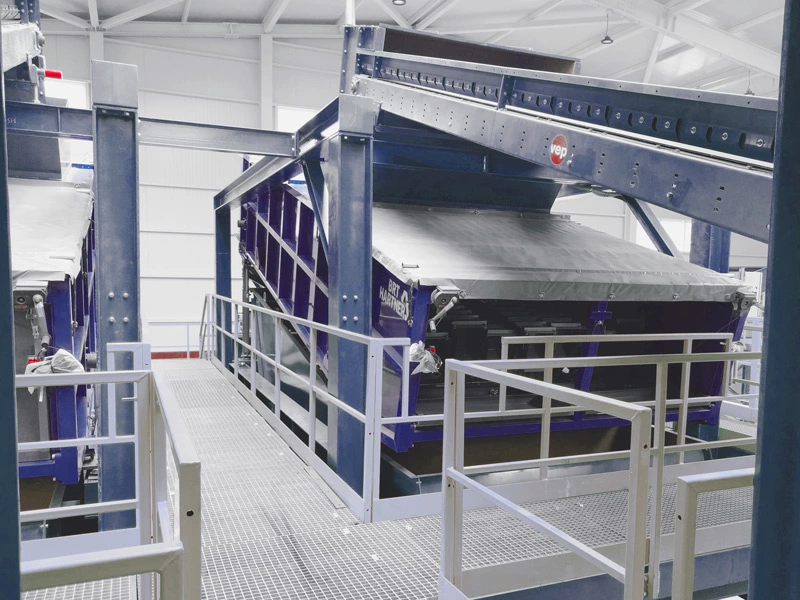

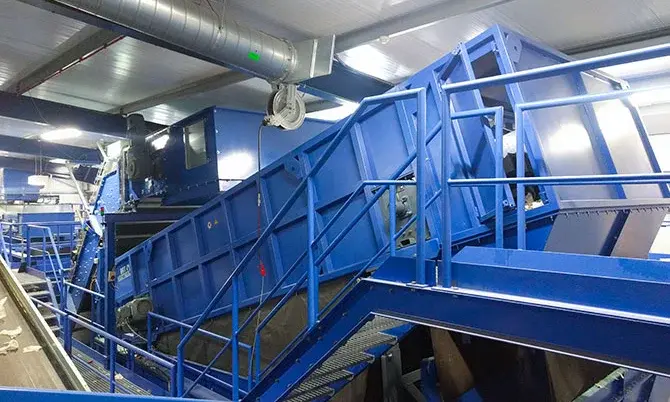

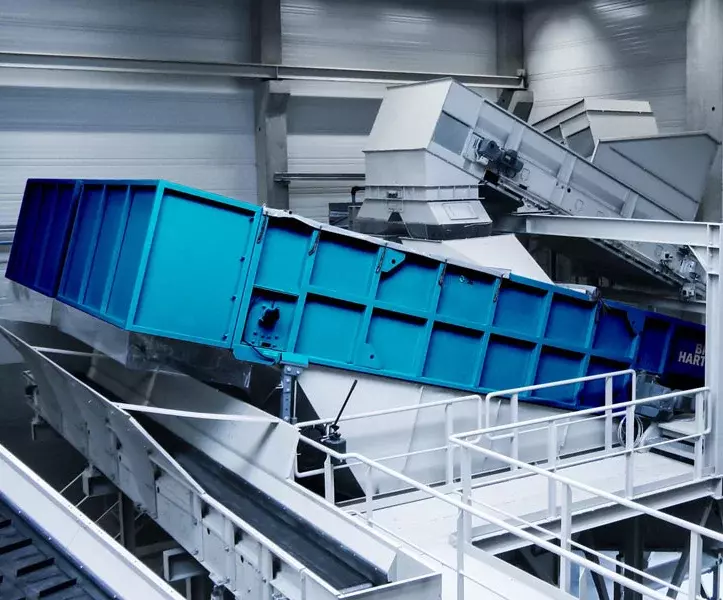

The BRT HARTNER BS Ballistic Separator impresses with its robust machine design for continuous operation as well as with its wide range of variants – different designs, variable widths, lengths and additional equipment are available.
Sturdy construction with easy access to maintenance points
Three separate fractions
Size of the screen perforation can be freely selected
Low costs
High availability

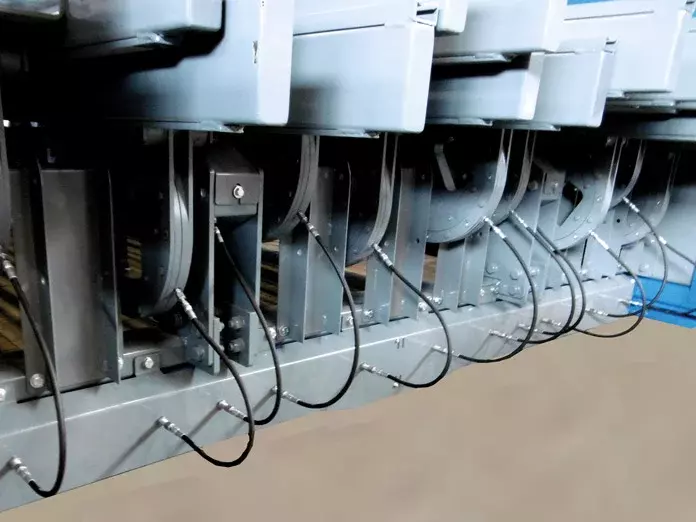

Eccentric Bearings can be replaced without removing the shaft
No high-maintenance crankshaft
Shock absorber for each paddle
Central lubrication system
The conveying speed, the ballistic separation and the level of material mixing can be adjusted by modifying the rotational speed. A separation precision of up to 90% can thus be achieved.

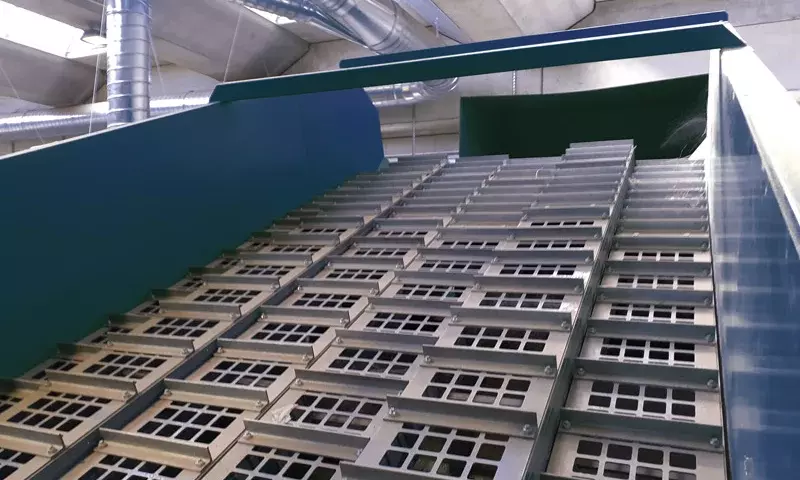

It separates the material into three fractions. Separation takes place in just one step. The fed material is conveyed both vertically and horizontally on the paddles. The vertical acceleration mixes the material thoroughly, resulting in good separation and a high separation quality.
The BRT HARTNER BSH is a Ballistic Separator for packaging and household waste (single piece weight: < 10 kg). The paddles and sieve meshes are made of unalloyed construction steel.
The BRT HARTNER BSW is a medium-heavy machine for household and commercial waste (single piece weight: < 20 kg). The reinforced paddles and sieve meshes are made of wear resistant steel.
