Air Belt Separator Separate the Material Into a Light and a Heavy Fraction
Product Highlights

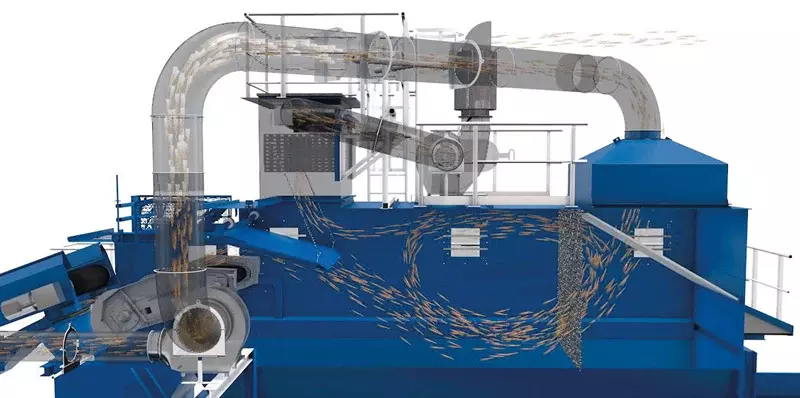

The BRT HARTNER BBS Air Belt Separator classifies the light fraction with its low specific weight from the heavy materials by air flow. Free-flowing mixed plastics and source materials for the production of substitute fuels are particularly suitable as input. For good separation results, the ratio of the smallest to the largest particle should be max. 1:4.

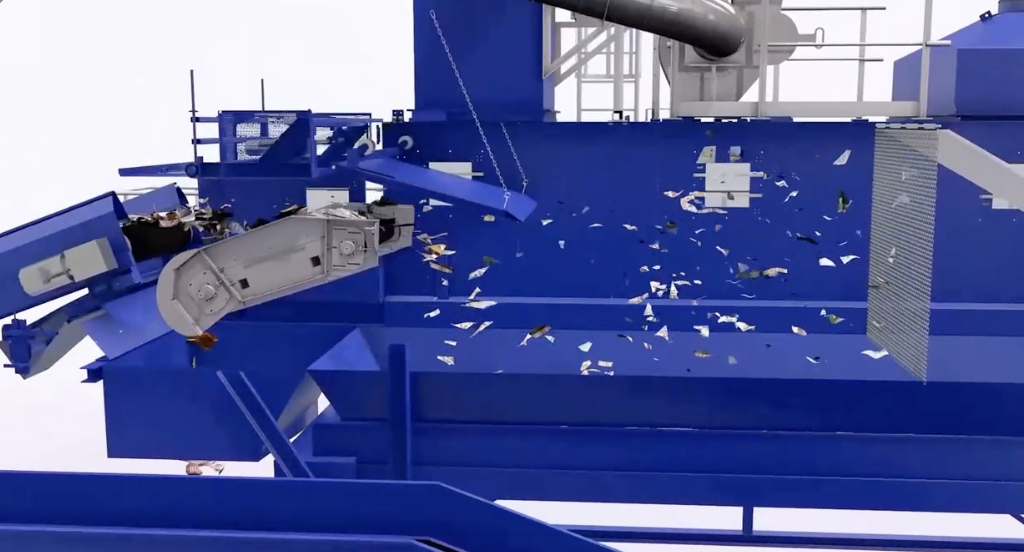

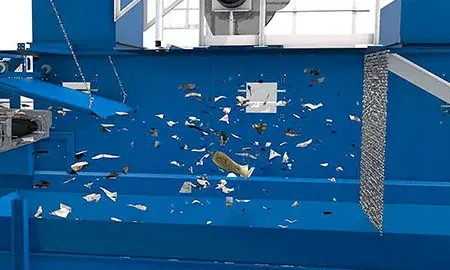

The very heavy parts fall down onto a heavy material discharge belt in the transfer area. All other materials bounce against the curved belt of the air separator and are also separated into light and heavy via the radius and the adjustable incline of the curved belt.

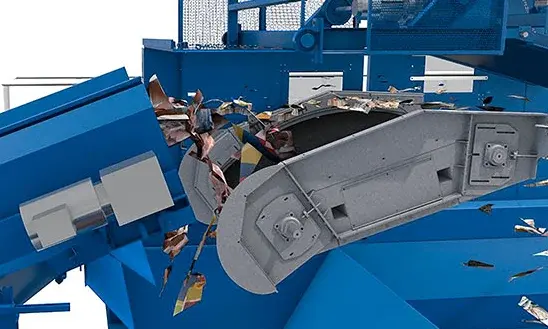

The arch belt is the heart and core of the Windsifter. It is arched and adjustable in several axles regarding its radius and the inclination. According to the chosen settings, specific material parts are sorted into the lightweight or heavyweight fraction with the conveying movement.. Changes of the settings lead to changes in the separation results.
Due to the air calming within this expansion chamber, light substances can be discharged. The air separator operates in recirculation mode, i.e. the fan draws its supply air from the expansion chamber. A second fan draws the dusty air from the calming chamber through a filter and releases it cleaned into the environment.
