BRT HARTNER PS/PD

BRT HARTNER PS/PD

Flattening and Punching of PET Bottles

Product Highlights

  • Perforation rate > 95
  • Throughput capacity up to 160 m³/h
  • Can be used for containers from 0.5 to 5 liters
  • Reduction of the material volume by > 30%


In order to be able to press closed PET bottles or other high-density plastic containers, they must be perforated. BRT HARTNER PS/PD perforators are used for this purpose.

ecological technik product image

Ideal for Retrofitting

The PET Perforator can be installed in the discharge area of a manual sorting system or above a mobile feed belt to the baling press. Free-standing machines with feed hopper and substructure are also possible.


ecological technik product image

Interchangeable Tools

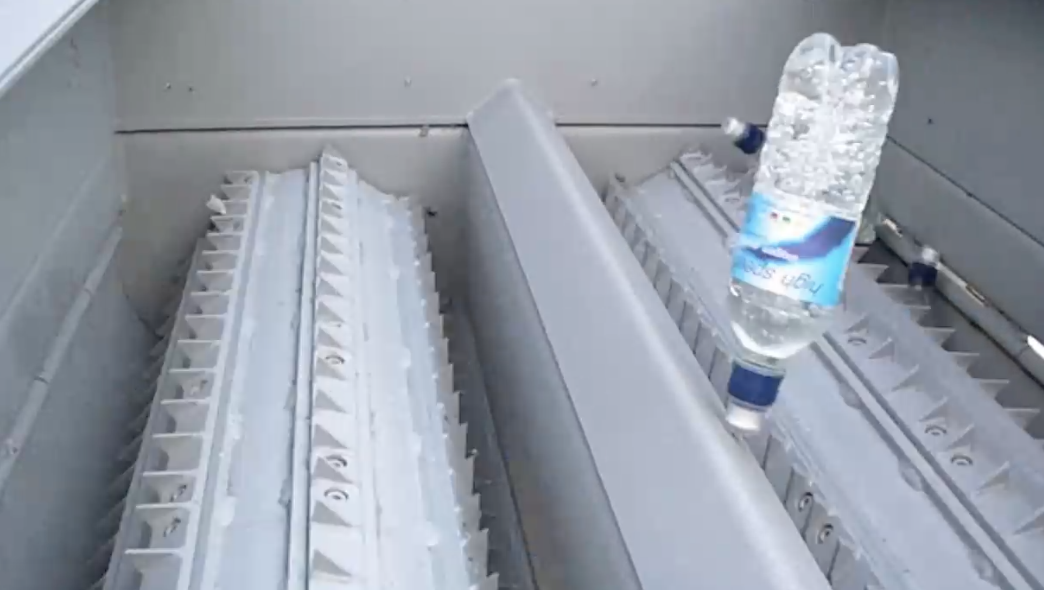

Blades made of special steel guarantee a long service life. They can be resharpened or easily replaced. The robust design of the machines even allows them to be used as glass breakers.


ecological technik product image

Different Versions

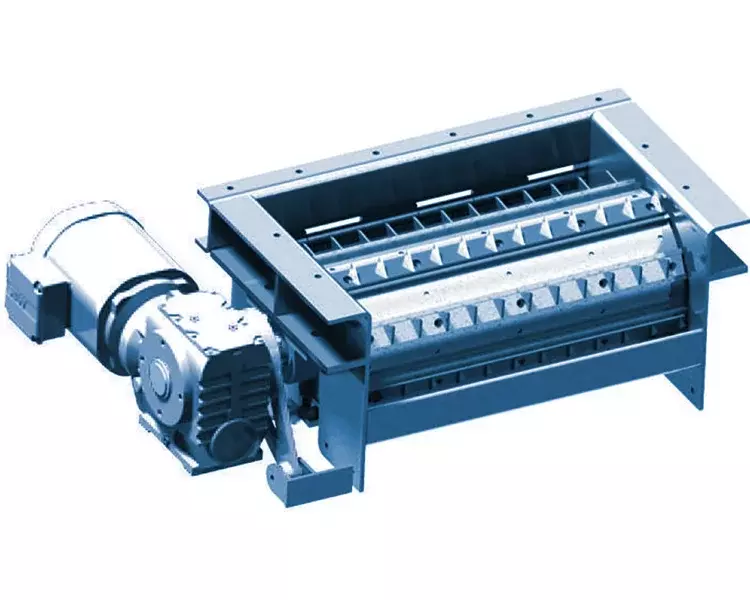

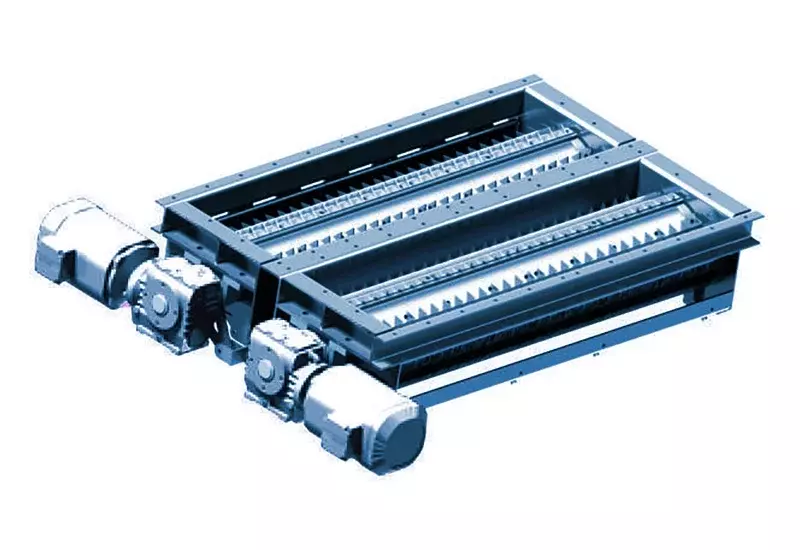

The BRT HARTNER PS/PD are available in three lengths as single and double perforators.


ecological technik product image

Semi-Mobile Small Systems

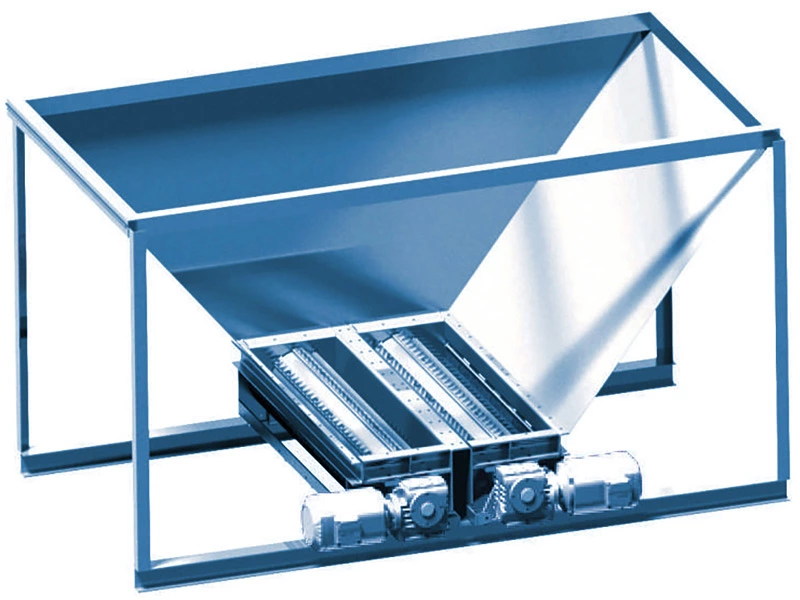

A complete, semi-mobile solution is provided for universal use. It consists of a perforator, a hopper with frame and a control unit and is positioned above the feed belt to presses or containers. It can be filled using a wheel loader.



ecological technik product image

Further Highlights

Low drive power

Low susceptibility to contaminants

Low investment costs

Long service life

Changeable and resharpenable tools

Optionally with electric control


Technical Data BRT HARTNER PS/PD


  •
  • Working Width (mm)
  • Length (mm)
  • Width (mm)
  • Height (mm)
  • Weight (kg)
  • Number of Drums
  • Number of Knife Bars
  • Drive Power (kW)
  • Rotor Speed (rpm)
  • Throughput Capacity (m3/h)


  • PS 06
  • 600
  • 1,050
  • 680
  • 360
  • 220
  • 1
  • 8
  • 2
  • 60
  • 40


  • PS 12
  • 1,200
  • 1,620
  • 680
  • 360
  • 390
  • 1
  • 16
  • 4
  • 60
  • 70


  • PS 14
  • 1,400
  • 1,820
  • 680
  • 360
  • 430
  • 1
  • 16
  • 4
  • 60
  • 80


  • PD 06
  • 600
  • 1,050
  • 1,380
  • 360
  • 450
  • 2
  • 16
  • 4
  • 60
  • 80


  • PD 12
  • 1,200
  • 1,620
  • 1,380
  • 360
  • 790
  • 2
  • 32
  • 8
  • 60
  • 140


  • PD 14
  • 1,400
  • 1,820
  • 1,380
  • 360
  • 880
  • 2
  • 32
  • 8
  • 60
  • 160
