Ecological Machine Technik Inc.

Volume Flow Controller

The Bale Breaker has a volume flow control: sensors are used to determine the discharge quantity and the regulation of the drum speed and the speed of the moving floor conveyor ensures that the same quantity of material is always discharged. In addition, a fill level indicator can be provided to prevent the hopper from running empty.

Open or Closed

Depending on the type of feeding, the Bale Breaker is available with an open feed area (bales fed in by forklift truck) or as a closed bunker (loose material fed in by wheel loader). The bunker walls of the bale breaker are designed as plug-in walls. This means that individual wall elements can be removed or added as required.

Powerful

The Bale Breaker achieves a throughput of up to 10 tons per hour and is designed for a maximum bale weight of 1,500 kg.

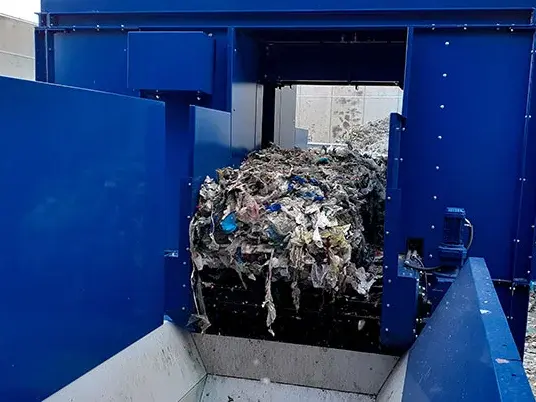

A dynamically attached hold-down device ensures that the Bale Breaker copes excellently with impurities.

System Solution

Can be combined as a compact system with the BRT HARTNER BD Bale Dewirer.

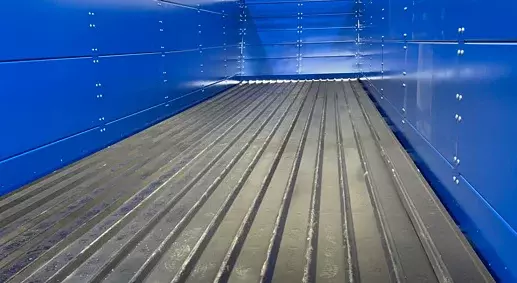

Moving Floor Conveyor

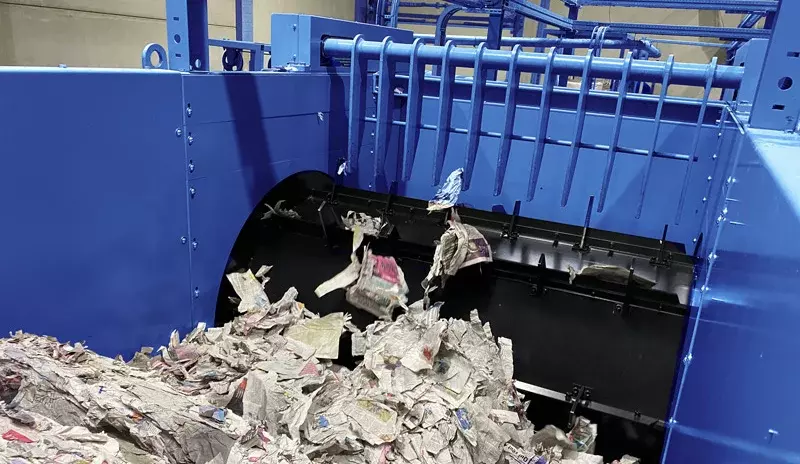

The integrated standard moving floor conveyor allows for an even material stream to the bale breaking unit, which consist of a drum and a dynamic down holding device. This system ensures ideal loosening of the material without blockages by impurities.

Technical Data BRT HARTNER BB

Working Width (mm)
Total Height (mm)
Hopper Length (mm) min.
Total Length (mm) min.
Extension in Steps of (mm)
Total Length (mm) max.
Drive Power (kW)
Weight (t) from
Throughput (bales/h) up to

BB
1,780
2,500
6,000
8,400
2,000
14,400
15 to 26
10
20

BRT HARTNER BB
