TEUTON Z 60

The Shredder for Large Quantities

Product Highlights

  • Easily exchangeable and robust rotor tools with double screw connection
  • Long-life "Marathon" shredding rotor (resistant to contaminants)
  • Perfect material feed due to 4.5 m wide feed area
  • Tool-free cutting gap adjustment in six stages

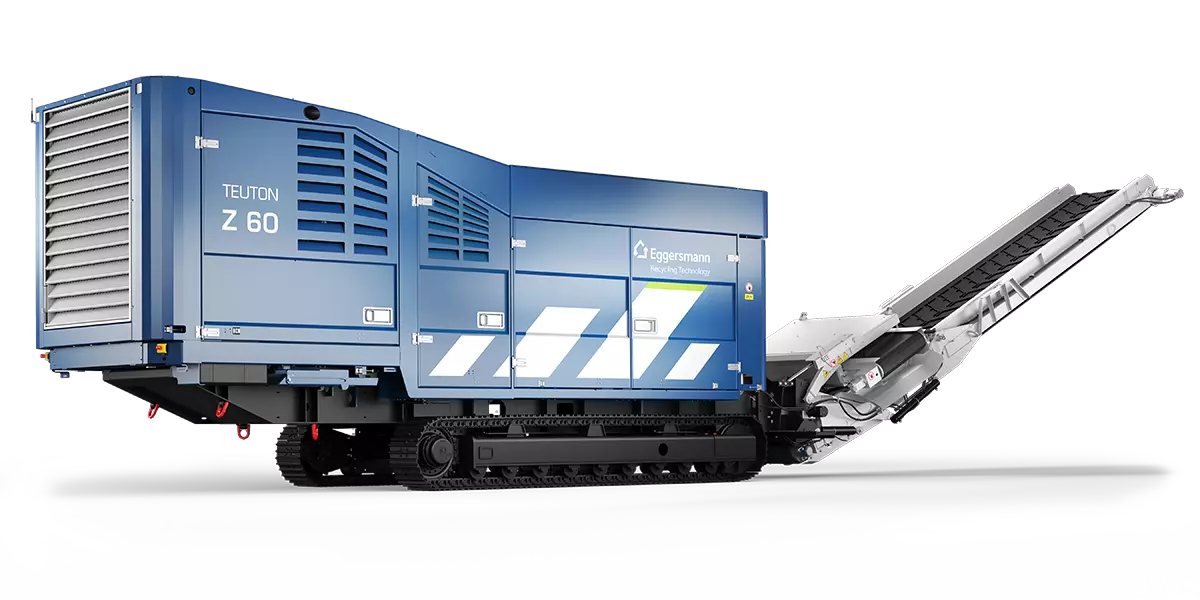

Mobile Version

Tracks

(diesel-hydraulic)

  • Power:
  • 447 kW (600 HP)
  • Throughput:
  • Up to 120 t/h
  • Weight:
  • 34,000 kg


TEUTON Z 60

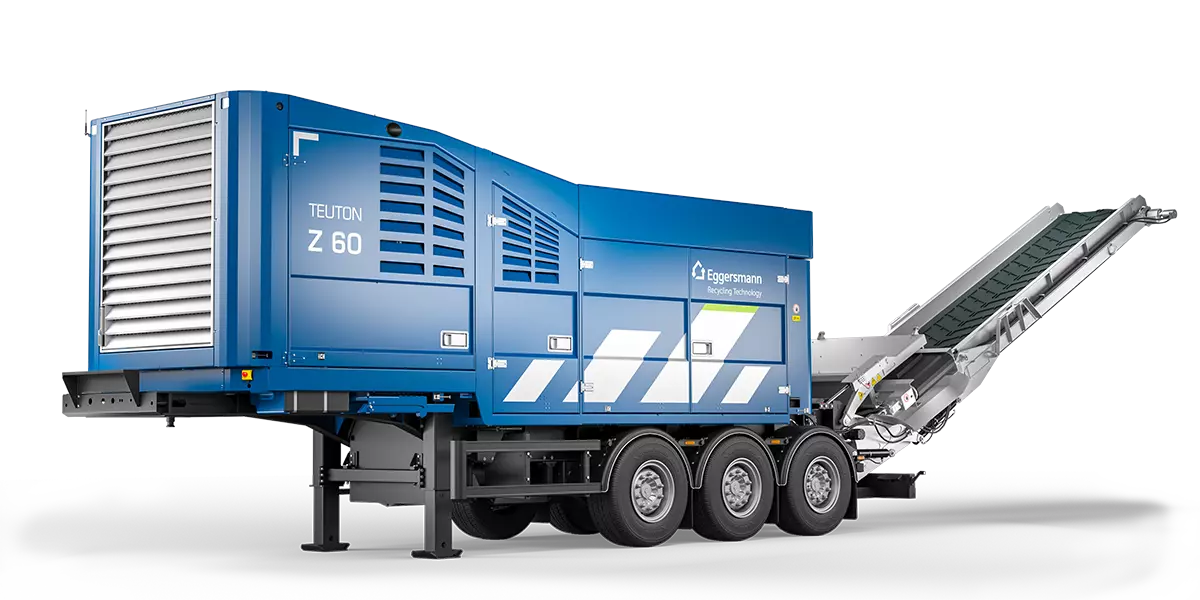

Semi-Trailer

(diesel-hydraulic)

  • Power:
  • 447 kW (600 HP)
  • Throughput:
  • Up to 120 t/h
  • Weight:
  • 32,000 kg


TEUTON Z 60

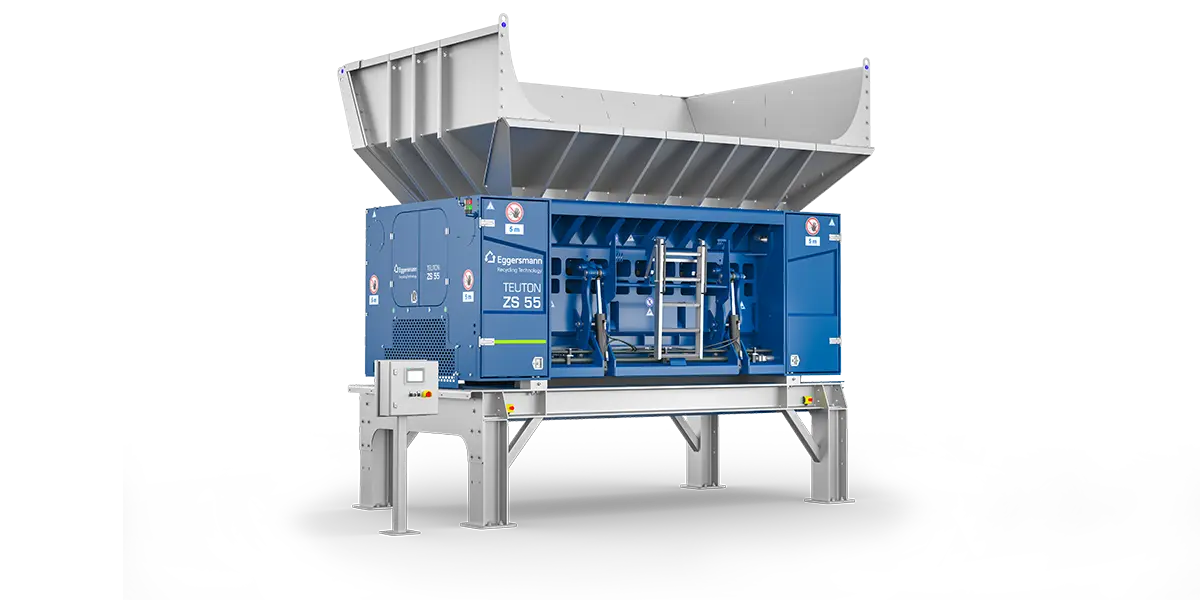

Stationary

(electro-hydraulic)

  • Power:
  • 2 x 160 kW
  • Throughput:
  • Up to 120 t/h
  • Weight:
  • 29,650 kg


TEUTON Z 60

Our Eggersmann TEUTON Z 60 is even bigger and even more powerful. Consequently, even the most stubborn material succumbs to its 600 HP rotor. Maximum power and maximum precision - that's the TEUTON Z 60.

Which Materials can be Processed?

Features

ecological technik product image

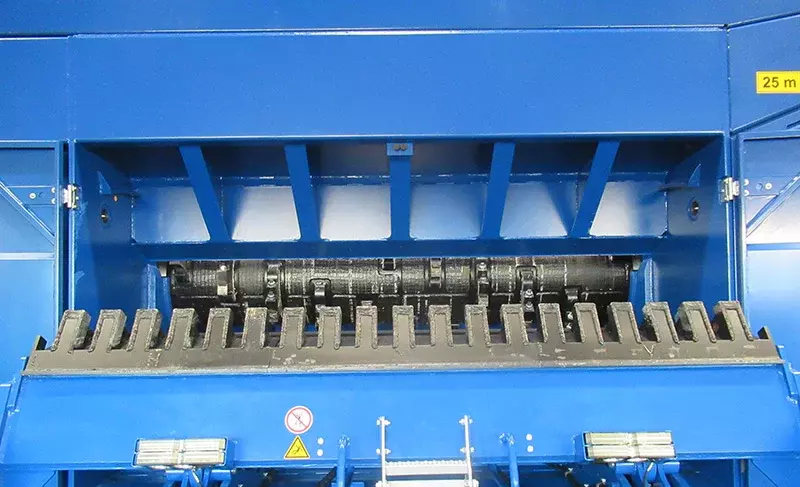

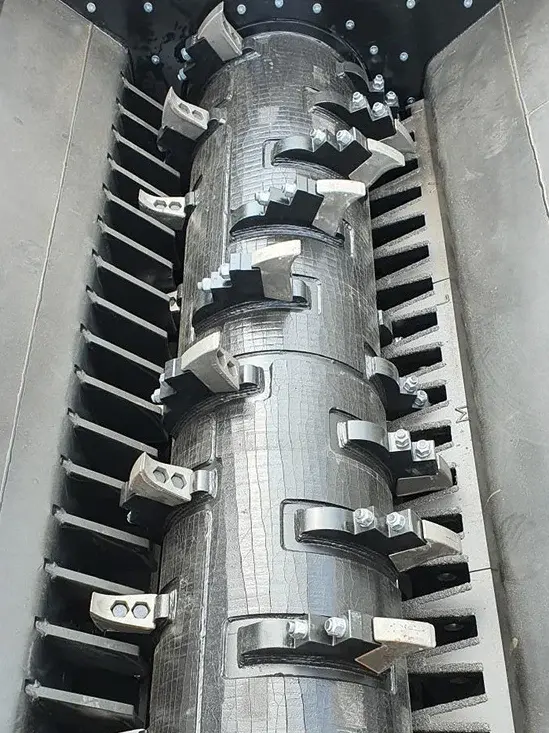

 Shredding Unit

  • The spiral-arranged tools of the durable Marathon rotor make the best possible use of the torque. Maximum pressure is exerted on the material.


 Reversing Rotor

  • The hydromechanical drive reverses the motor in the event of resistance. This makes the TEUTON extremely efficient – even with difficult materials – and offers protection against interfering objects.


ecological technik product image

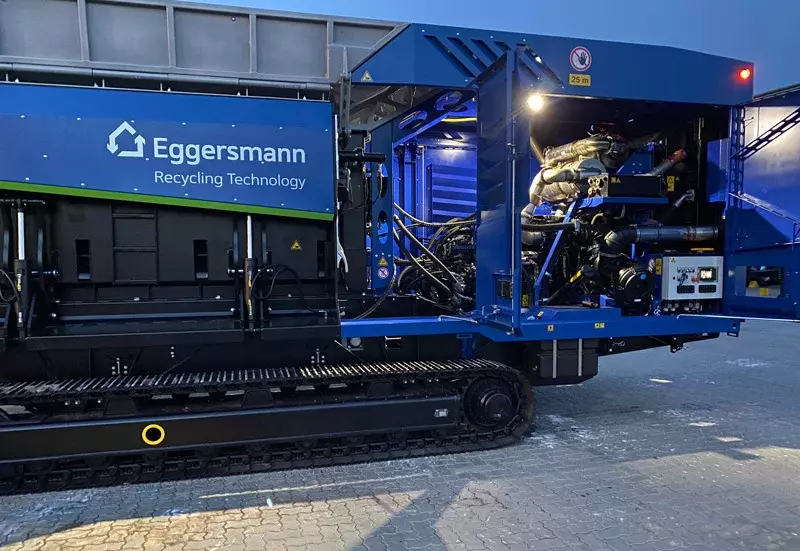

 Maintenance

  • The fully illuminated engine compartment is easily accessible thanks to the large maintenance doors.


ecological technik product image

 Shredding Hood

  • The hydraulically swing-out shredding hood gives you free access to the working area.


ecological technik product image

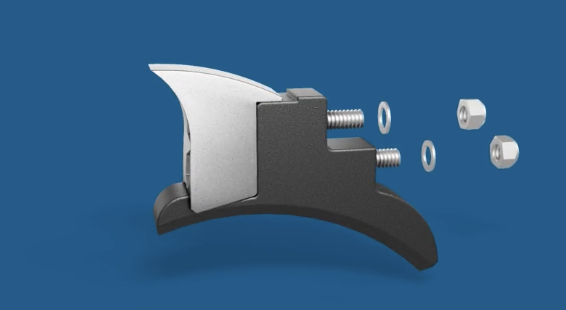

 Screwed Tools

  • Easily replaceable rotor tools
  • Double screw connection for secure hold


ecological technik product image

Shredding Hood

The hydraulically swing-out shredding hood gives you free access to the working area.


ecological technik product image

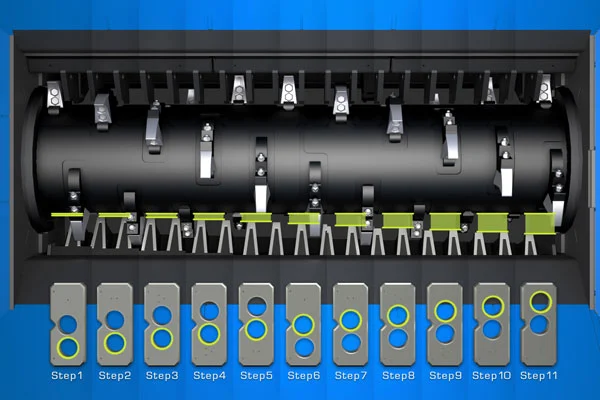

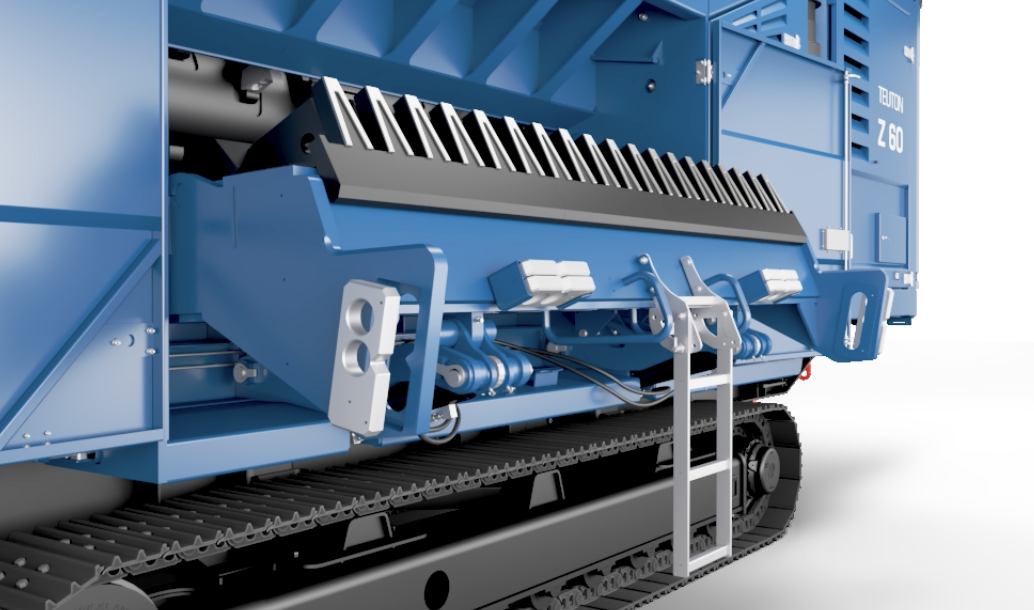

Cutting Gap Adjustment

You can choose between eleven different settings for a predefined end grain.


ecological technik product image

Tool-free Change

No tools are required for the adjustment of the cutting gap.


ecological technik product image

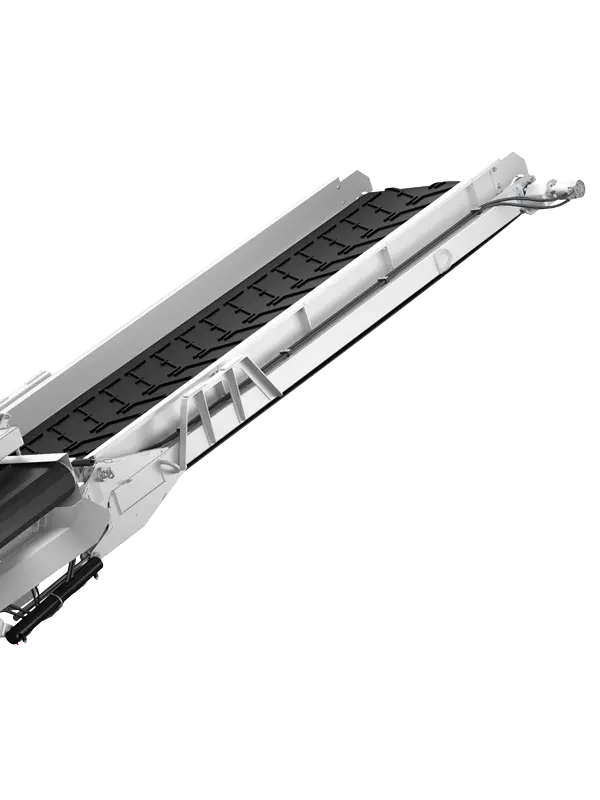

Rear Conveyor Belt

Infinitely adjustable discharge height (max. 5 m)

Extra wide conveyor belts for blockage-free discharge


ecological technik product image

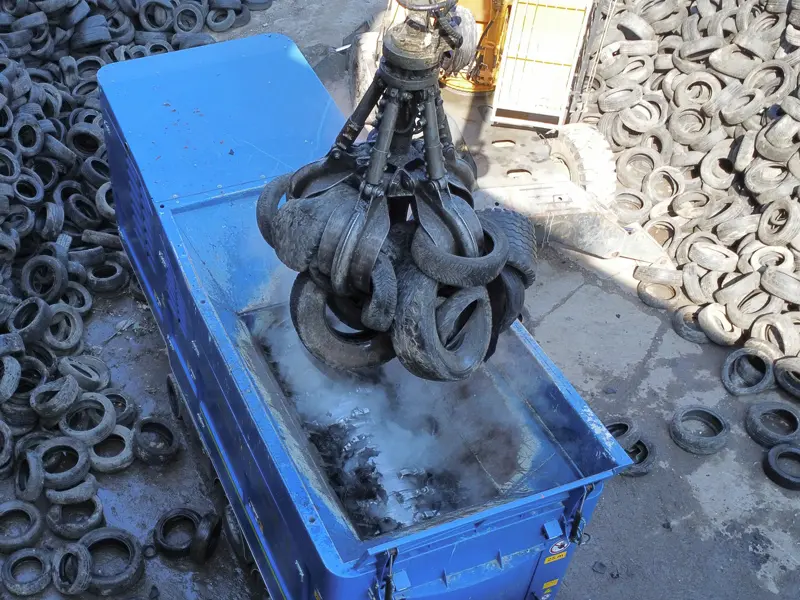

Large Infeed Area

Whether wheel loader or crane - with its 4.5 m wide loading area, the Z 60 is very easy and quick to load.


Options

Technical Data TEUTON Z 60

  •
  • Power (kW)
  • Rotor Speed (rpm)


  • Tracks
  • 447
  • 20 - 40


  • Semi-Trailer
  • 447
  • 20 - 40


  • Stationary
  • 2 x 160
  • 20 - 40


  • Working Position
  • Length (mm)
  • Width (mm)
  • Loading Edge (mm)
  • Discharge Height (mm)


  • Tracks
  • 14,950
  • 2,550
  • 3,200
  • 5,000


  • Semi-Trailer
  • 15,900
  • 2,550
  • 3,400
  • 5,600


  • Stationary
  • 4,875
  • 2,600
  • 3,900
  • /


  • Transport Dimensions
  • Length (mm)
  • Height (mm)
  • Width (mm)


  • Tracks
  • 9,270
  • 3,750
  • 2,550


  • Semi-Trailer
  • 9,850
  • 3,990
  • 2,550
