TEUTON Z 50

 The Reliable Universal Shredder

Product Highlights

  • Easily exchangeable and robust rotor tools with double screw connection
  • Long-life "Marathon" shredding rotor (resistant to contaminants)
  • Perfect material feed due to 5 m wide feed area
  • Tool-free cutting gap adjustment in six stages

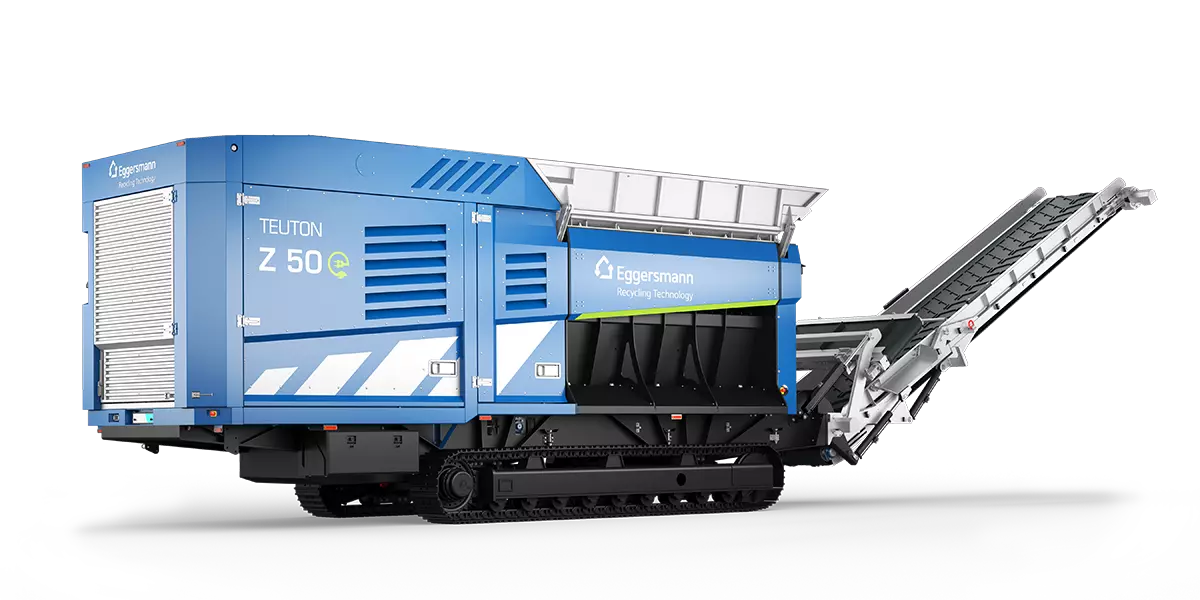

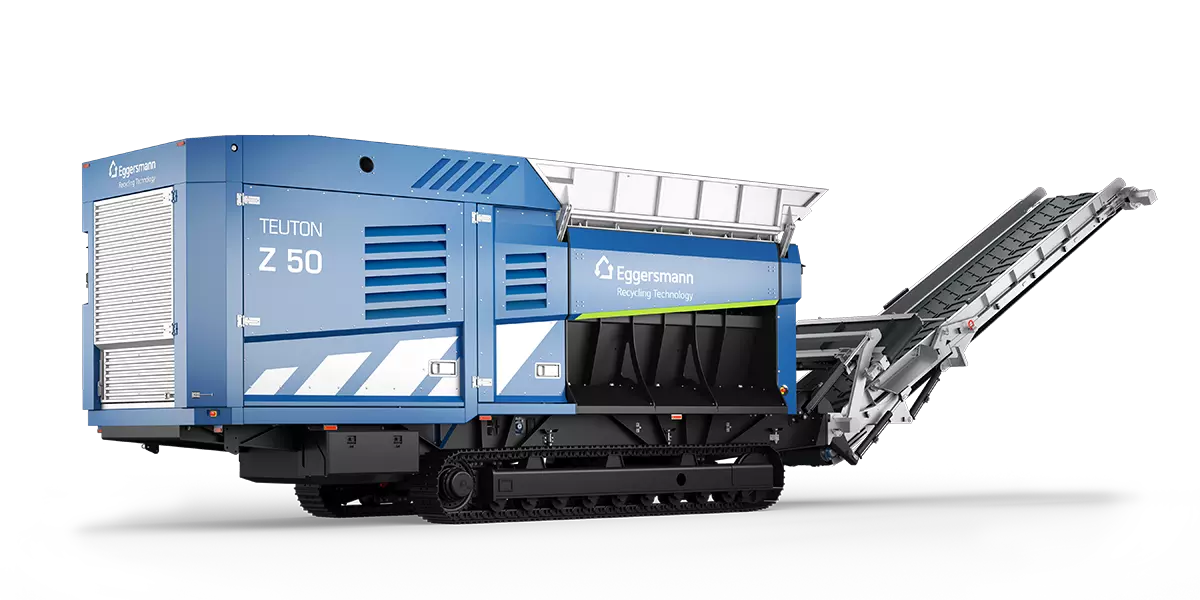

Mobile Version

Tracks

(diesel-hydraulic)

  • Power:
  • 373 kW (500 HP)
  • Throughput:
  • Up to 95 t/h
  • Weight:
  • 27,000 kg


TEUTON Z 50

Tracks

(electro-hydraulic)

  • Power:
  • 2x 160 kW
  • Throughput:
  • Up to 95 t/h
  • Weight:
  • 27,000 kg


TEUTON Z 50

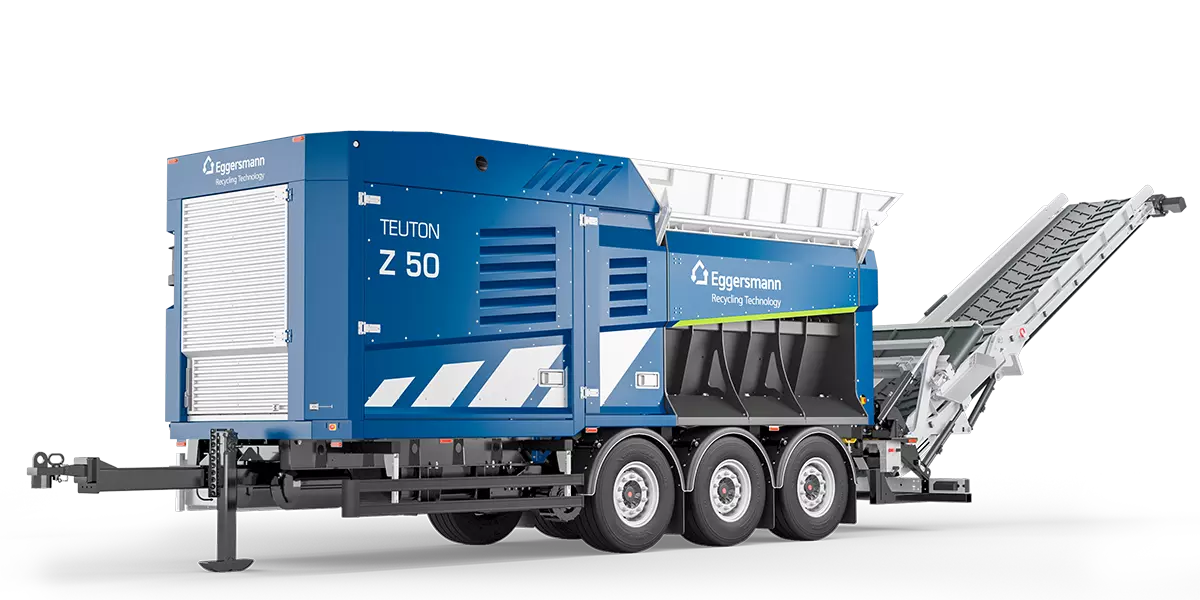

Trailer

(diesel-hydraulic)

  • Power:
  • 373 kW (500 HP)
  • Throughput:
  • Up to 95 t/h
  • Weight:
  • 25,000 kg


TEUTON Z 50

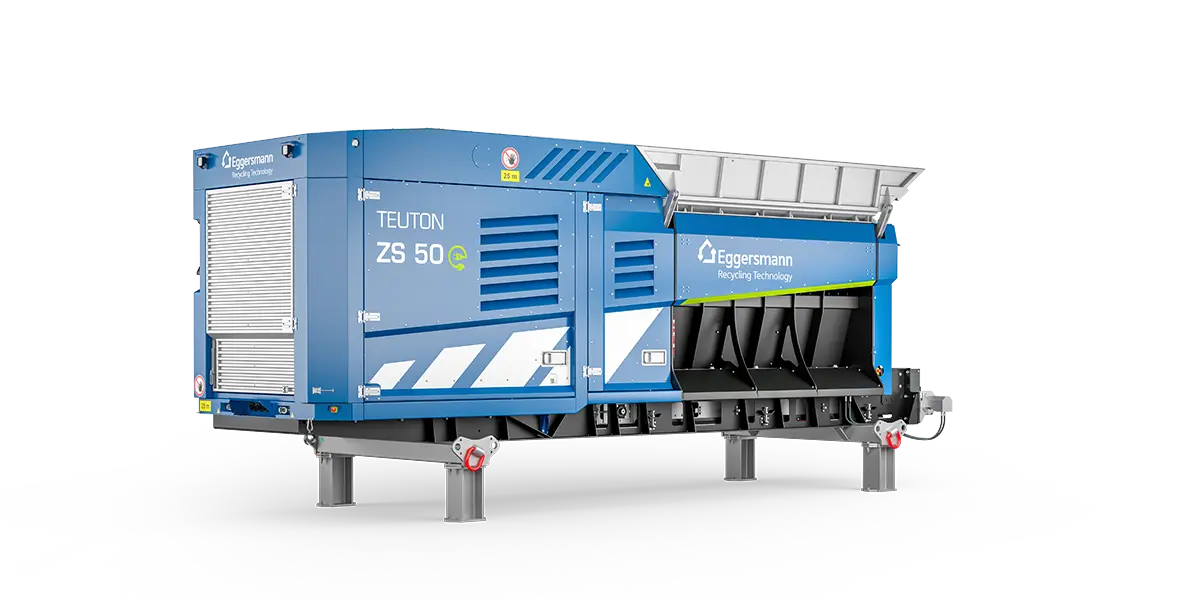

Stationary

(electro-hydraulic)

  • Power:
  • 2 x 160 kW
  • Throughput:
  • Up to 95 t/h
  • Weight:
  • 21,000 kg


TEUTON Z 50

The Eggersmann TEUTON Z 50 is as strong as precise. It brings the material directly to a marketable final grain size, if required. Together with the simple handling from feeding to minimal maintenance, it thus represents both an enormous simplification of work and a real economic asset.

Which Materials can be Processed?

Features

ecological technik product image

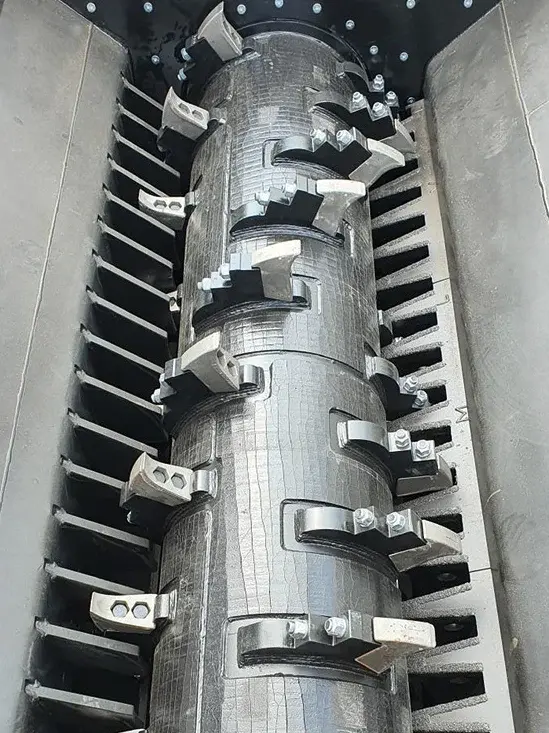

 Shredding Unit

  • The spiral-arranged tools of the durable Marathon rotor make the best possible use of the torque. Maximum pressure is exerted on the material.


 Reversing Rotor

  • The hydromechanical drive reverses the motor in the event of resistance. This makes the TEUTON extremely efficient – even with difficult materials – and offers protection against interfering objects.


ecological technik product image

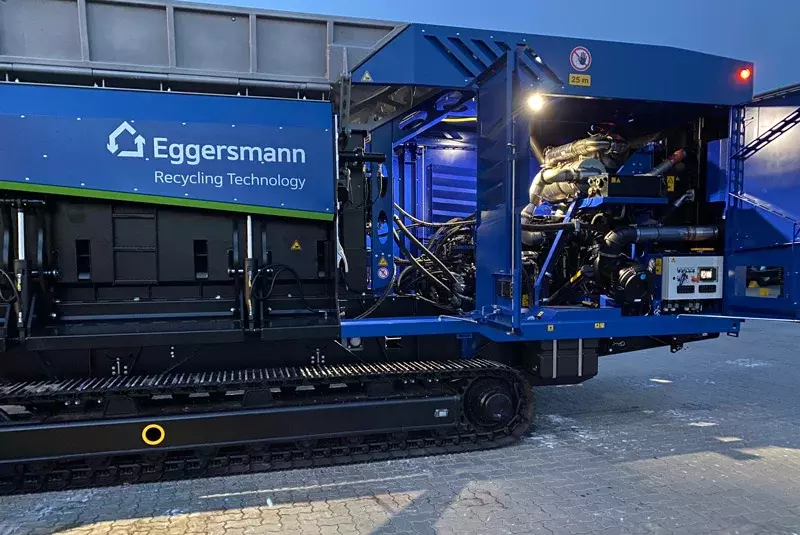

 Maintenance

  • The fully illuminated engine compartment is easily accessible due to the large maintenance doors.


 Screwed Tools

  • Easily replaceable rotor tools
  • Double screw connection for secure hold


ecological technik product image

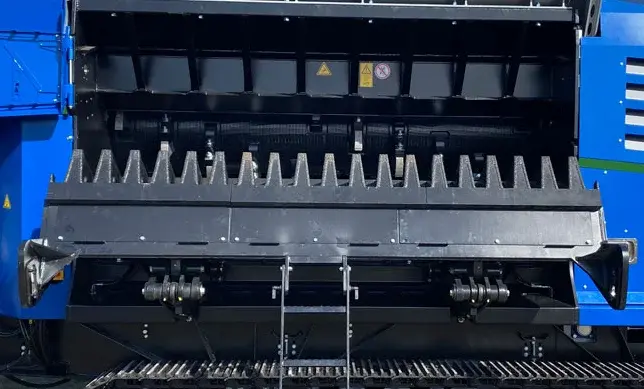

 Shredding Hood

  • The hydraulically swing-out shredding hood gives you free access to the working area.


ecological technik product image

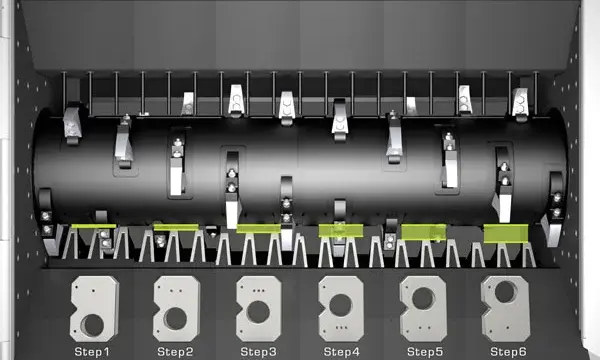

 Cutting Gap Adjustment

  • You can choose between six different settings for a predefined end grain.

 Tool-free Change

  • No tools are required for the adjustment of the cutting gap.


 Blockage-free Discharge

  • Extra wide material discharge and conveyor belt

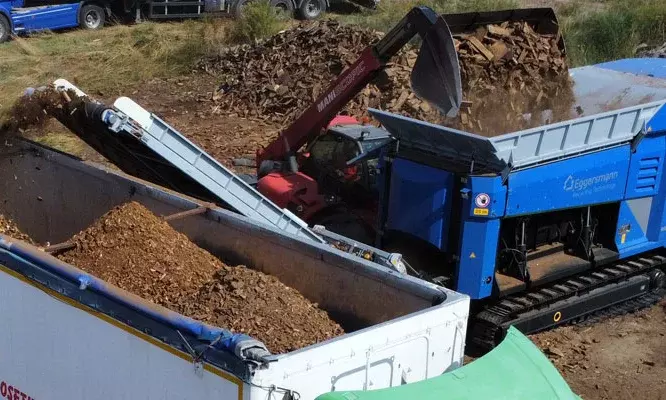

Easy to Move

Easy moving of the machine via radio remote control:

  • Traction drive for wheel version
  • Mobile crawler chassis


ecological technik product image

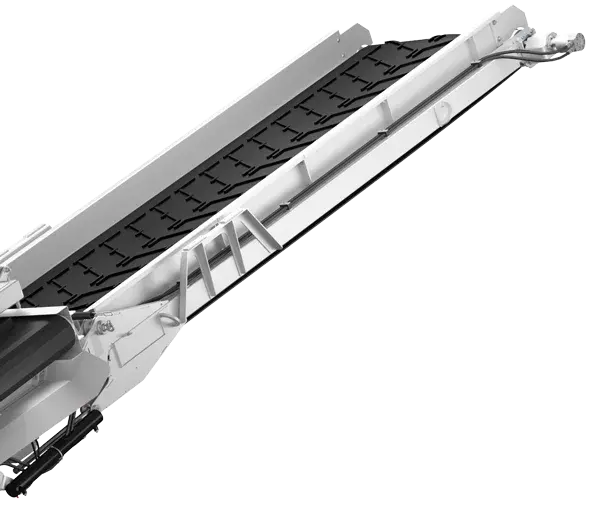

 Rear conveyor belt

  • Infinitely adjustable discharge height (max. 5 m)
  • Extra wide conveyor belts for blockage-free discharge


ecological technik product image

 Large Infeed Area

  • Whether wheel loader or crane - with its 5 m wide loading area, the Z 50 is very easy and quick to load.


Options

Technical Data TEUTON Z 50

  •
  • Power (kW)
  • Rotor Speed (rpm)


  • Tracks
  • 373
  • 20 - 40


  • Tracks (elec.)
  • 2 x 160
  • 20 - 40


  • Trailer
  • 373
  • 20 - 40


  • Stationary
  • 2 x 160
  • 20 - 40


  • Working Position
  • Length (mm)
  • Width (mm)
  • Loading Edge (mm)
  • Discharge Height (mm)


  • Track
  • 14,176
  • 2,540
  • 3,000
  • 5,000


  • Tracks (elec.)
  • 14,176
  • 2,540
  • 3,000
  • 5,000


  • Trailer
  • 15,864
  • 2,540
  • 3,000
  • 5,000


  • Stationary
  • 8,390
  • 2,540
  • 3,017
  • 1,040


  • Transport Dimensions
  • Length (mm)
  • Height (mm)
  • Width (mm)


  • Tracks
  • 8,976
  • 3,652
  • 2,540


  • Tracks (elec.)
  • 8,976
  • 3,652
  • 2,540


  • Trailer
  • 10,652
  • 3,789
  • 2,540
