FORUS F 38

 The Twin Shaft Shredder for Almost Every Application

Product Highlights

  • Shredding programme individually adjustable
  • Asynchronous running shafts against material winding
  • Hydraulically lifting and lowering hopper
  • Optionally selectable secondary crushing bars for precisely fitting final grain sizes


Mobile Version

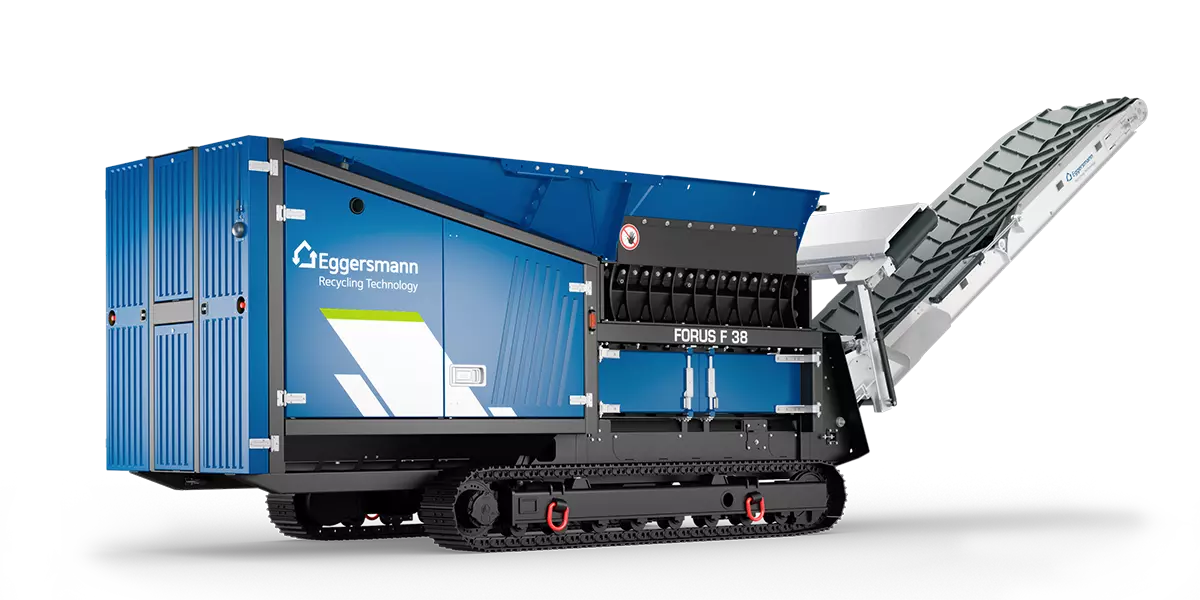

Tracks (F 38)

(diesel-hydraulic)

  • Power:
  • 280 kW (380 hp)
  • Throughput:
  • Up to 80 t/h
  • Weight:
  • 19,500 kg


FORUS F 38

Tracks (F 38)

(electro-hydraulic)

  • Power:
  • 200 kW
  • Throughput:
  • Up to 80 t/h
  • Weight:
  • 19,500 kg


FORUS F 38

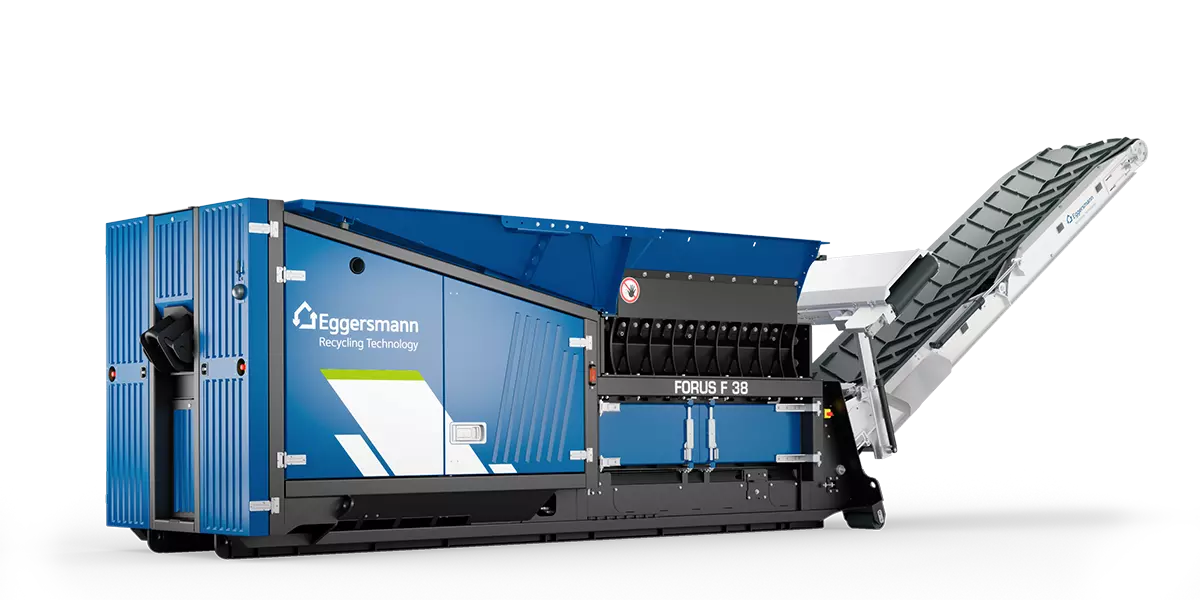

Hook Lift (F 38)

(diesel-hydraulic)

  • Power:
  • 280 kW (380 hp)
  • Throughput:
  • Up to 80 t/h
  • Weight:
  • 17,000 kg


FORUS F 38

Hook Lift (F 38)

(electro-hydraulic)

  • Power:
  • 200 kW
  • Throughput:
  • Up to 80 t/h
  • Weight:
  • 17,000 kg


FORUS F 38

Even more intake volume as well as even more power and consequently an even higher throughput; this is what distinguishes the FORUS F 38. Thanks to the quick-change after breaker bar system, the FORUS F 38 also delivers the desired final grain size in just one pass.

Which Materials can be Processed?

Features


 Optimal Infeed

  • A raiseable and lowerable hopper enables you to feed the machine quickly and easily using a wheel loader. The hopper hydraulics can be conveniently operated by radio remote control.


ecological technik product image

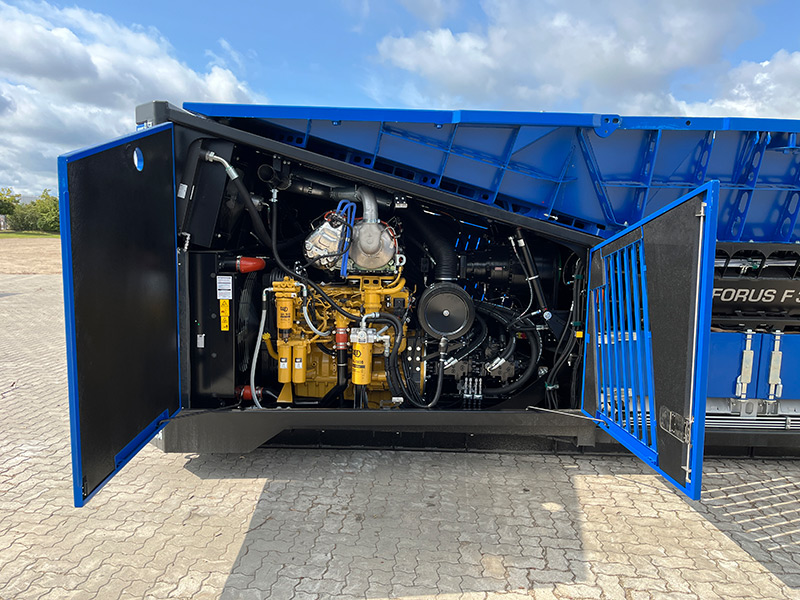

 Easy Maintenance

  • Large maintenance doors allow you free access to the engine.


ecological technik product image

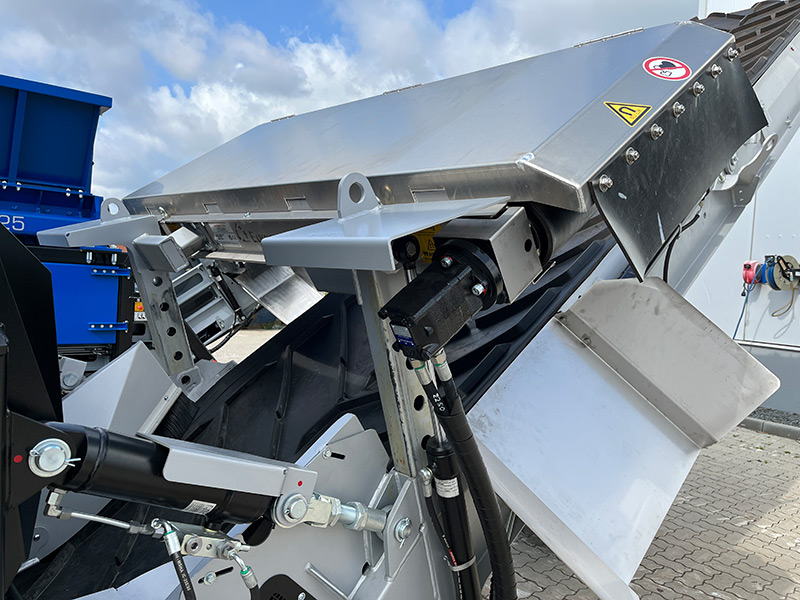

 Overband Magnet

  • The liftable and lowerable magnet can eject metals on both side


ecological technik product image

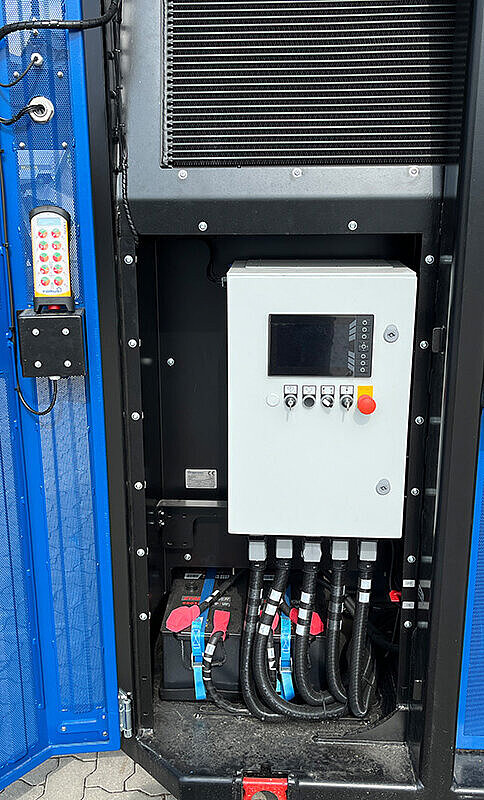

 Intuitive Control

  • A number of individual programs allow you to adjust the shredding process to your material. It is also possible to create your own programs. Operation is either via the intuitive Eggersmann One-Logic interface or via the 10-channel radio remote control.


 Individually Adjustable Shafts

Both the direction of the rotation and the speed of the shafts can be adjusted individually. This means that they not only have a self-cleaning effect, but are also ideal if there is a risk of winding.


 Turning Manoeuvre

  • The tracked versions of our FORUS can all turn and manoeuvre even in rather tight spaces. Operation is very simple using the radio remote control.


Options

Technical Data FORUS F 38

  •
  • Power (kW)
  • Rotor Speed (rpm)


  • Tracks
  • 280
  • 5 - 35


  • Tracks (elec.)
  • 200
  • 5 - 35


  • Hook Lift
  • 280
  • 5 - 35


  • Hook Lift (elec.)
  • 200
  • 5 - 35
  • Working Position
  • Length (mm)
  • Width (mm)
  • Loading Edge (mm)
  • Discharge Height (mm)


  • Tracks
  • 10,890
  • 2,550
  • 2,850
  • 3,250


  • Tracks (elec.)
  • 10,890
  • 2,550
  • 2,850
  • 3,250


  • Hook Lift
  • 11,040
  • 2,380
  • 2,440
  • 2,840


  • Hook Lift (elec.)
  • 11,040
  • 2,380
  • 2,440
  • 2,840


  • Transport Dimensions
  • Length (mm)
  • Width (mm)
  • Height (mm)


  • Tracks
  • 8,560
  • 2,550
  • 2,860


  • Tracks (elec.)
  • 8,560
  • 2,550
  • 2,860


  • Hook Lift
  • 8,710
  • 2,380
  • 2,450


  • Hook Lift (elec.)
  • 8,710
  • 2,380
  • 2,450


Download Product Sheet Contact us
