TERRA SELECT T 60

TERRA SELECT T 60

First Class Mobile Screening

Product Highlights

  • Above-average trommel screen size
  • Quick and easy trommel screen change
  • Powerful drive concept with low fuel consumption

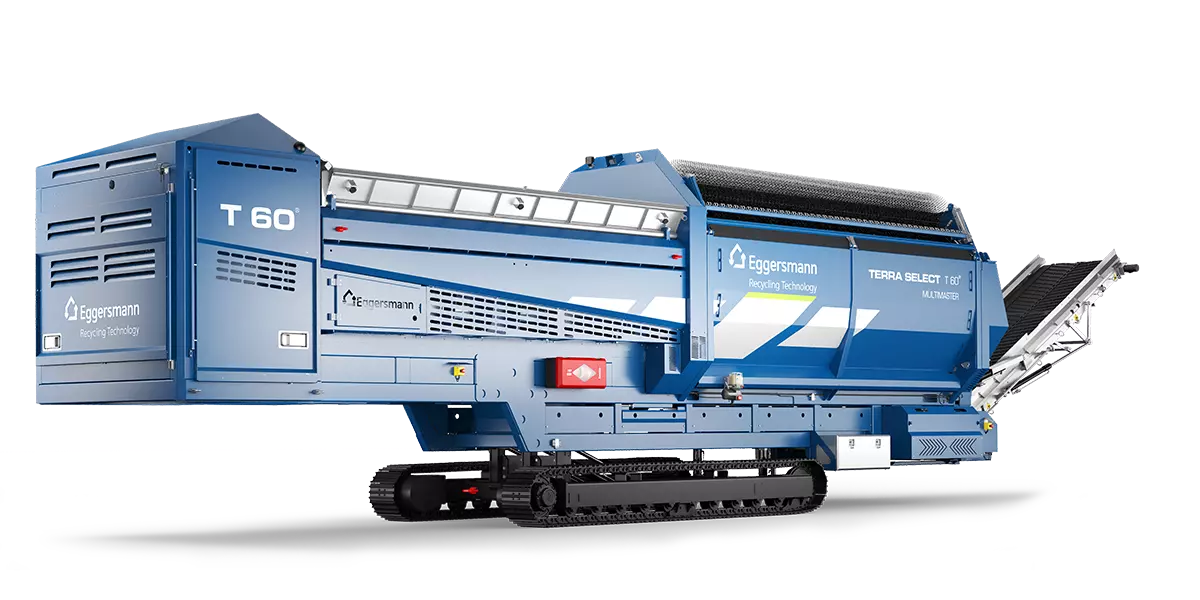

Mobile Version

Tracks

(diesel-hydraulic)

  • Power:
  • 75 kW (102 hp)
  • Throughput:
  • Up to 200 m3/h
  • Weight:
  • 22,000 kg

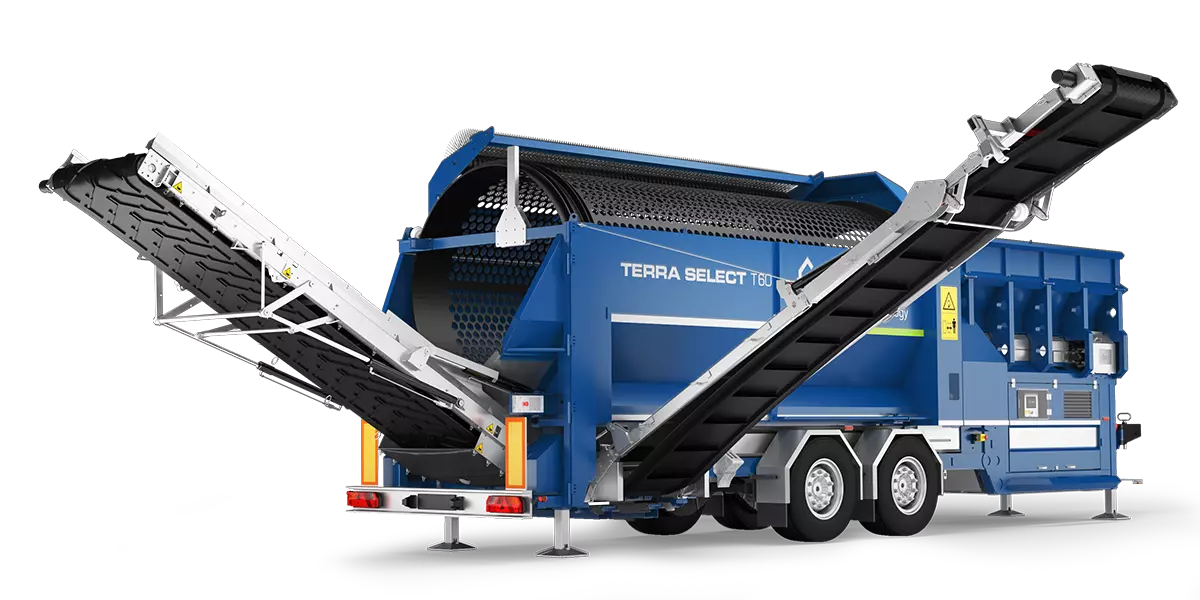

TERRA SELECT T 60

Trailer

(diesel-hydraulic)

  • Power:
  • 75 kW (102 hp)
  • Throughput:
  • Up to 200 m3/h
  • Weight:
  • 19,000 kg


TERRA SELECT T 60

Trailer

(diesel-electric / electric)

  • Power:
  • 55 kW / kVA 60
  • Throughput:
  • Up to 200 m3/h
  • Weight:
  • 19,000 kg


TERRA SELECT T 60

The TERRA SELECT T 60 is designed for customers with particularly high throughput requirements. It offers the remarkably precise separation efficiency typical of our TERRA SELECT with a screening capacity of up to 200 m3 per hour. This makes it a top-class mobile solution.

Which Materials can be Processed?

Features

ecological technik product image

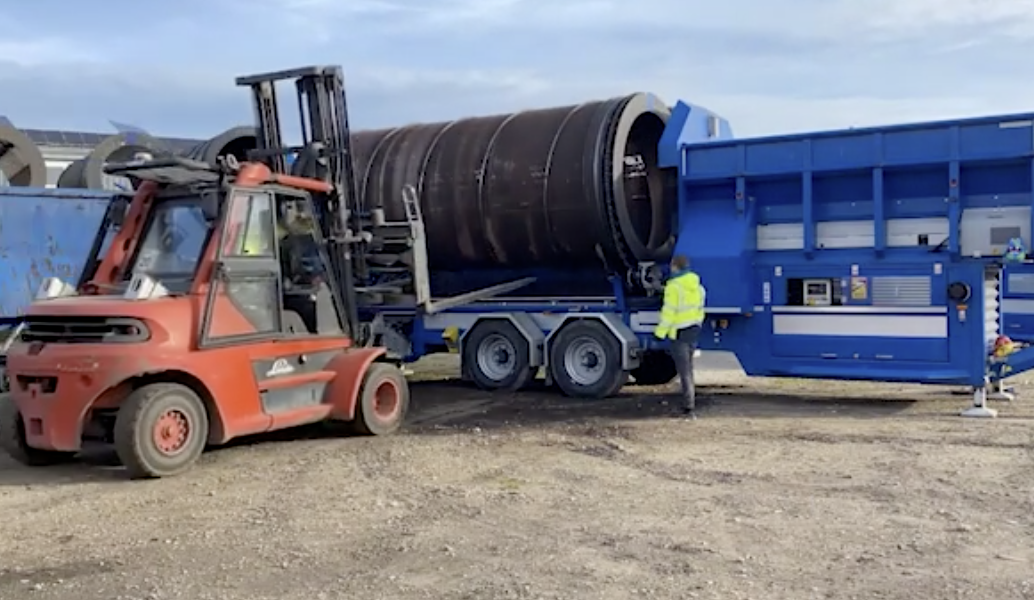

Trommel Change

Changing the trommel screen is essential for defining the screen cut. Thanks to the sophisticated machine design, this is quick and easy.


ecological technik product image

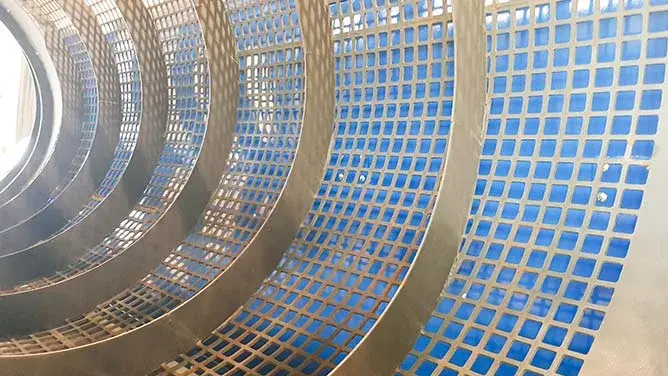

Largest Screening Area

The widest drum diameter on the market ensures an above-average screening surface. Optimum screening results are therefore guaranteed.


ecological technik product image

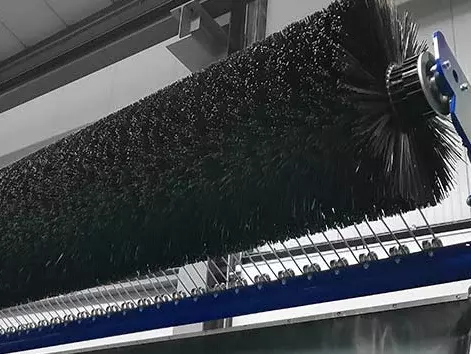

Scraper

Broom scraper for cleaning the broom from build-ups


ecological technik product image

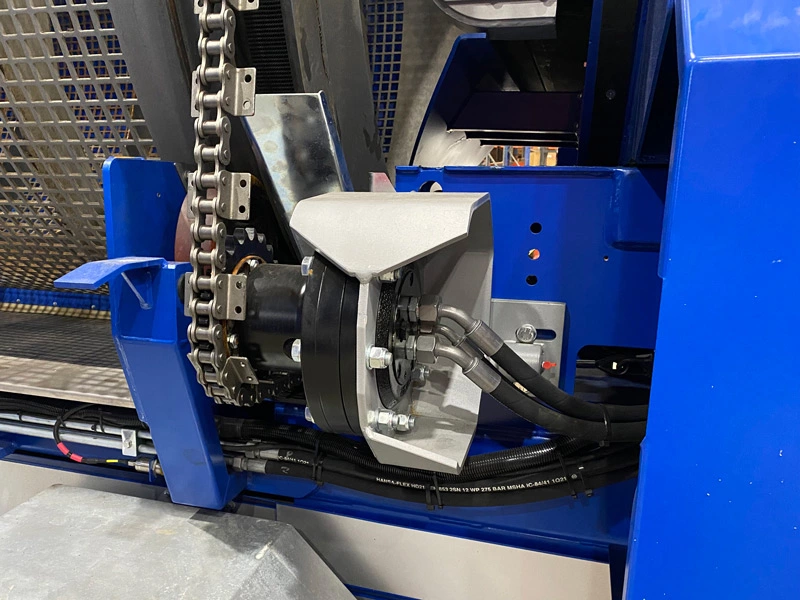

Drives

Force-locking trommel drive

Form-fit hopper drive


Options

Technical Data TERRA SELECT T 60

  •
  • Power (kW / kVA)
  • Max. Trommel Revolutions (rpm)
  • Trommel Length (mm)
  • Trommel Diameter (mm)
  • Screen Area (m2)
  • Hopper Volume (m3)


  • Tracks
  • 75
  • 21
  • 5,500
  • 2,200
  • 33
  • > 4.5 - 7.5


  • Trailer
  • 75
  • 21
  • 5,500
  • 2,200
  • 33
  • > 6


  • Trailer (elec.)
  • 55 / 60
  • 21
  • 5,500
  • 2,200
  • 33
  • > 6



  • Working Position
  • Length (mm)
  • Width (mm)
  • Loading Edge (mm)


  • Tracks
  • 16,080
  • 6,190
  • 2,650


  • Trailer
  • 15,159
  • 6,149
  • 2,820


  • Trailer (elec.)
  • 15,159
  • 6,149
  • 2,820



  • Transport Dimensions:
  • Length (mm)
  • Width (mm)
  • Height (mm)


  • Tracks
  • 12,630
  • 2,550
  • 3,800


  • Trailer
  • 12,000
  • 2,550
  • 4,000


  • Trailer (elec.)
  • 12,000
  • 2,550
  • 4,000


  • Discharge Height
  • Fine Grain Belt (mm)
  • → Extended
  • Coarse Grain Belt (mm)
  • → Extended


  • Tracks
  • 3,190
  • 3,860
  • 3,340
  • 3,810


  • Trailer
  • 3,100
  • 3,700
  • 3,300
  • 3,800


  • Trailer (elec.)
  • 3,100
  • 3,700
  • 3,300
  • 3,800
