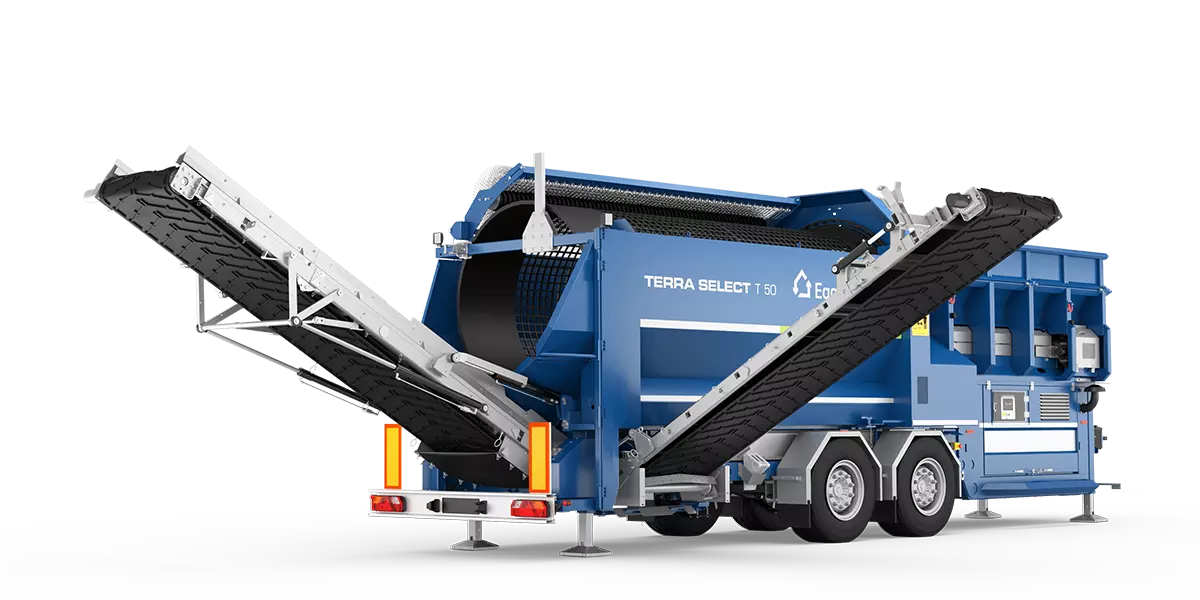

TERRA SELECT T 50

TERRA SELECT T 50

Excellent Screening Performance

Product Highlights

  • Above-average sieve drum size
  • High separation efficiency and excellent machine availability
  • Doubling of the cone of discharge through long discharge belts (option)
  • Profiled hopper belt for better material feed (option)


Mobile Version

Trailer

(diesel-hydraulic)

  • Power:
  • 55 kW (75 hp)
  • Throughput:
  • Up to 150 m3/h
  • Weight:
  • 16,000 kg


TERRA SELECT T 50

Trailer

(diesel-electric / electric)

  • Power:
  • 55 kW
  • Throughput:
  • Up to 150 m3/h
  • Weight:
  • 16,000 kg


TERRA SELECT T 50

With a drum diameter of 2,000 mm, the TERRA SELECT T 50 is a full 200 mm larger than the market average in the five-meter class. This significantly increases the screening capacity by a full 20 % and can achieve up to 150 m³ per hour . This makes it outstanding in terms of both quantity and quality.

Which Materials can be Processed?

Features

ecological technik product image

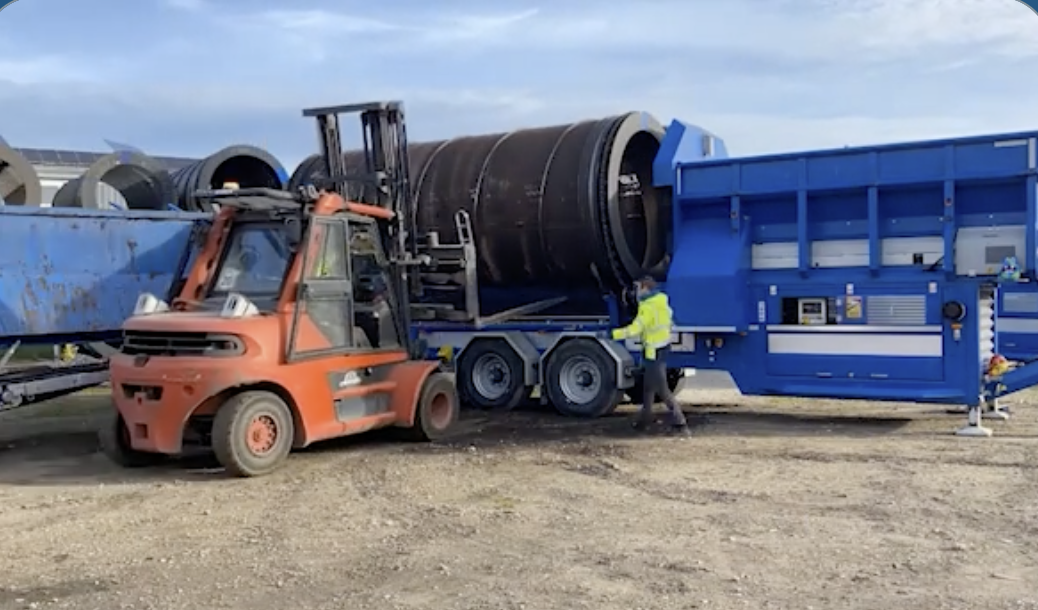

Trommel Change

Changing the trommel screen is essential for defining the screen cut. Thanks to the sophisticated machine design, this is quick and easy.


ecological technik product image

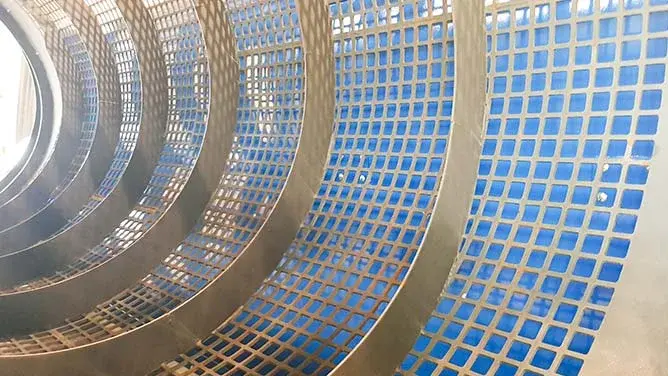

Largest Screening Area

The widest drum diameter on the market ensures an above-average screening surface. Optimum screening results are therefore guaranteed.


ecological technik product image

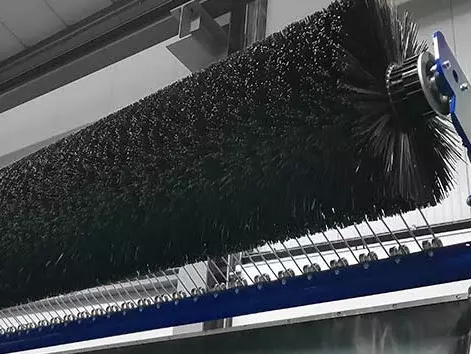

Scraper

Broom scraper for cleaning the broom from build-ups



ecological technik product image

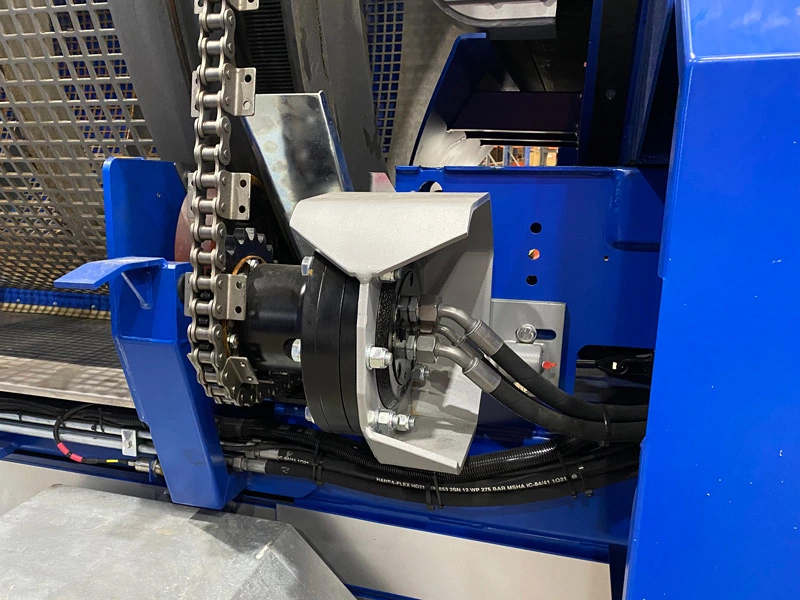

Drives

Force-locking trommel drive

Form-fit hopper drive


Options

Technical Data TERRA SELECT T 50

  •
  • Power (kW / kVA)
  • Max. Trommel Revolutions (rpm)
  • Trommel Length (mm)
  • Trommel Diameter (mm)
  • Screen Area (m2)
  • Hopper Volume (m3)


  • Trailer
  • 55
  • 21
  • 4,500
  • 2,000
  • 25
  • > 6


  • Trailer (elec.)
  • 55 / 60
  • 21
  • 4,500
  • 2,000
  • 25
  • > 6


  • Working Position
  • Length (mm)
  • Width (mm)
  • Loading Edge (mm)


  • Trailer
  • 14,287
  • 6,025
  • 2,820


  • Trailer (elec.)
  • 14,287
  • 6,025
  • 2,820


  • Discharge Height
  • Fine Grain Belt (mm)
  • → Extended
  • Coarse Grain Belt (mm)
  • → Extended


  • Trailer
  • 3,100
  • 3,700
  • 3,300
  • 3,800


  • Trailer (elec.)
  • 3,100
  • 3,700
  • 3,300
  • 3,800
