Product Highlights

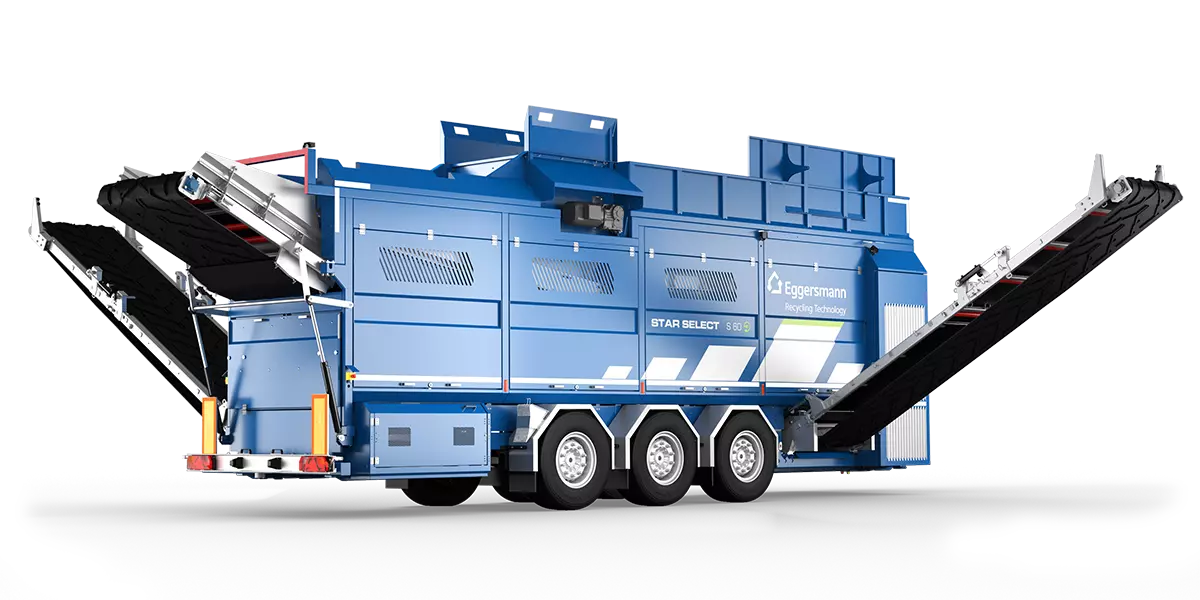

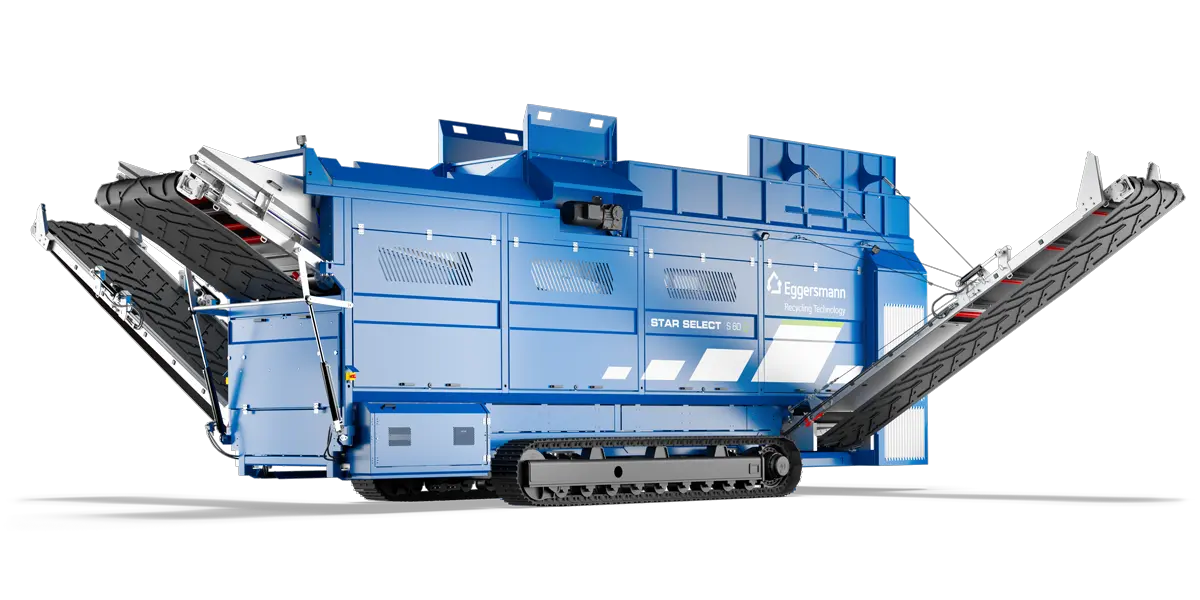

In its mobile central axle trailer chassis, our STAR SELECT S 60 houses a completely newly developed star screen system with many innovative solutions for even more precise separation, higher throughput and even better machine availability. The innovations enable operations even in the most difficult applications such as clayey soil or grate ash.

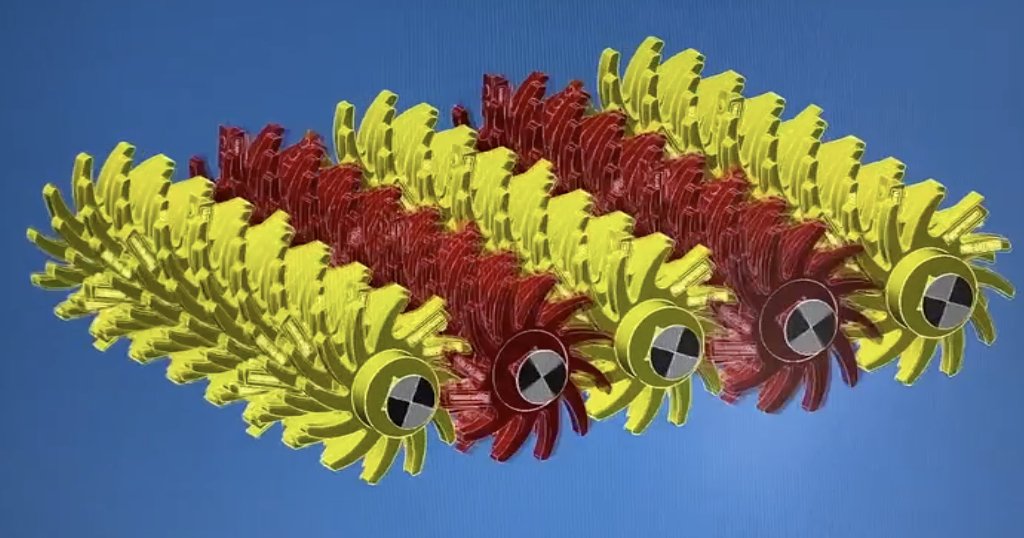

The screen cut can be determined via the shaft spacing and screen star size:
Coarse grain 0 / 60 mm to > 150 mm
Medium grain 0 / 25 mm to 150 mm
Fine grain 0 / 10 mm to 25 mm
With the QuickChange system, you can quickly replace individual screen shafts at any time. This significantly increases machine availability.

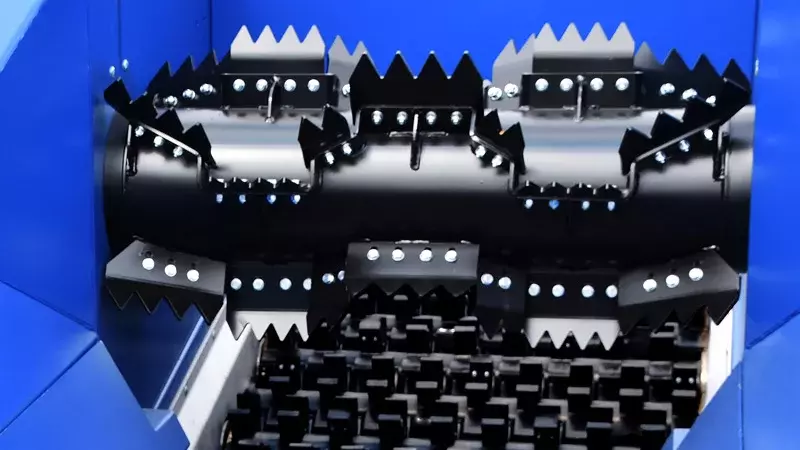

The centrifugal conditioner ensures uniform feeding from the bunker to the coarse screen deck. This allows the material to be optimally separated.

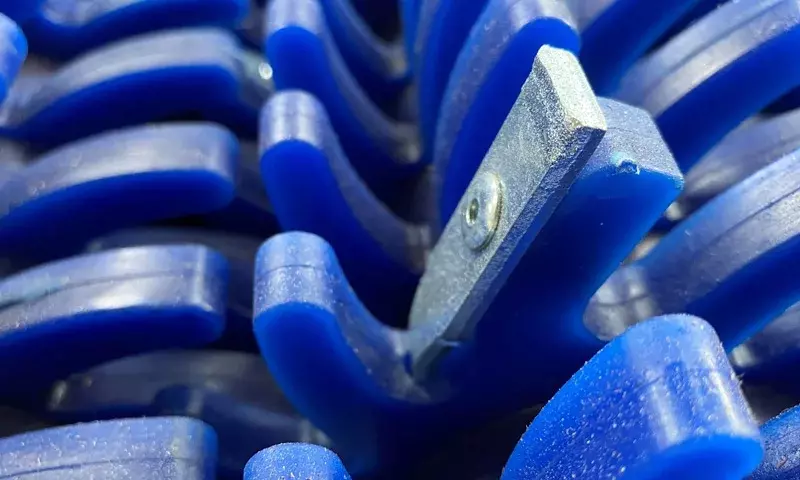

The cleaning elements on the screen fingers automatically clean the screen shafts of buildup.

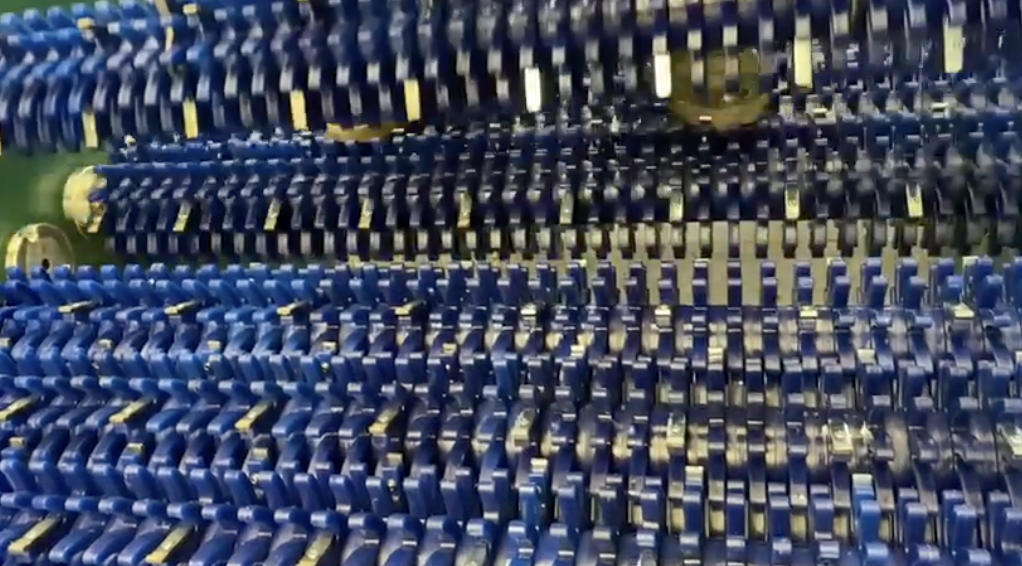

The differently set speeds of the screen shafts produce a particularly homogeneous material carpet on the fine screen deck for even better screening results.

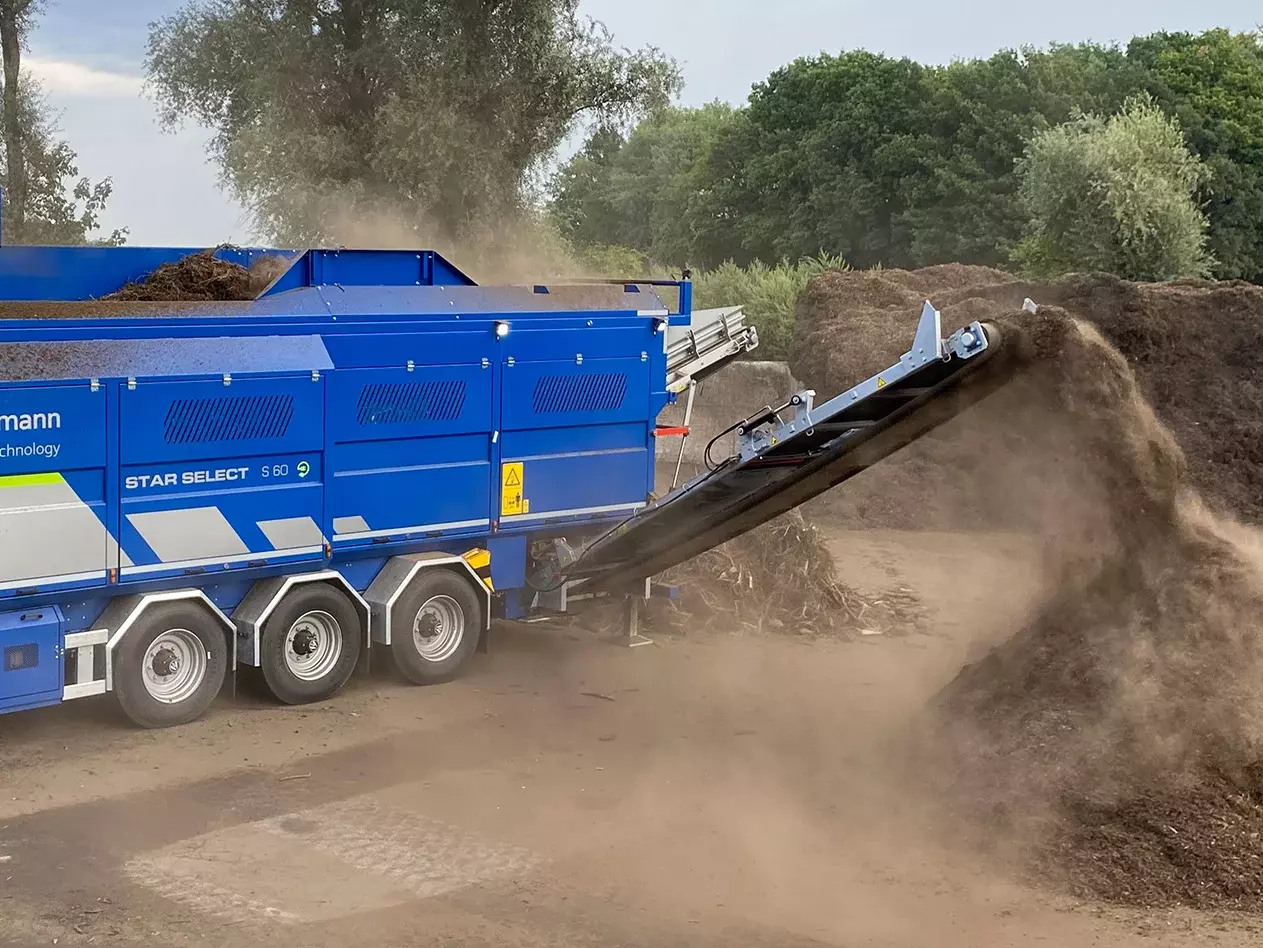

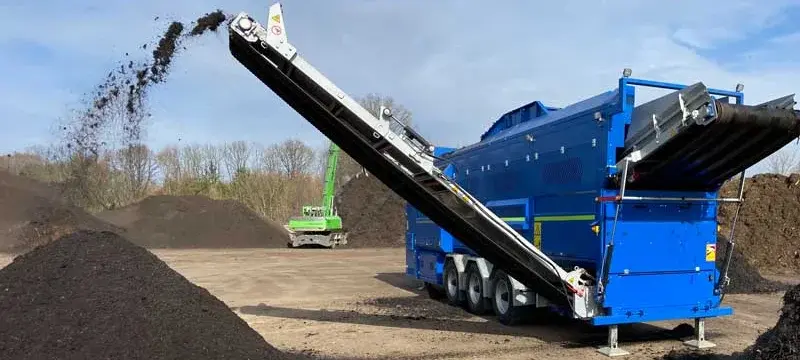

Extra-long discharge conveyors for particularly high dumping cones
