BLUE SELECT 15.44

BLUE SELECT 15.44

Affordable and Compact

Product Highlights

  • Compact transport dimensions
  • Adjustable trommel speed
  • Quick trommel change
  • Powerful drive concept

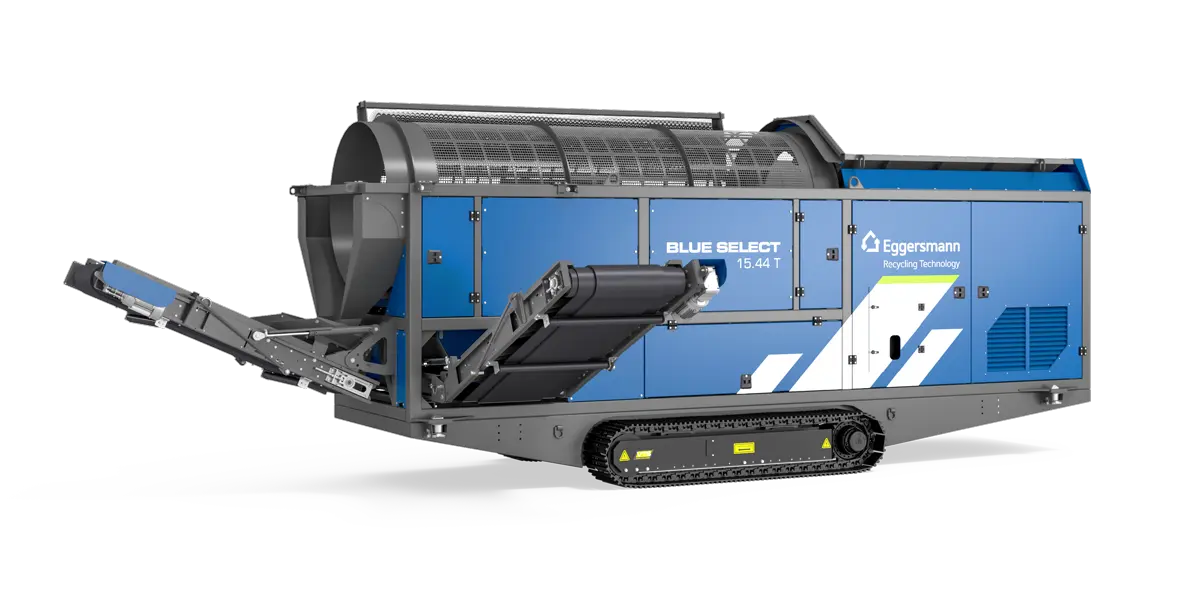

Mobile Version

Tracks

(hybrid: diesel-electric)

  • Power:
  • 15.2 kW (19 kVA)
  • Throughput:
  • Up to 100 m3/h
  • Weight:
  • 9.800 kg


BLUE SELECT 15.44

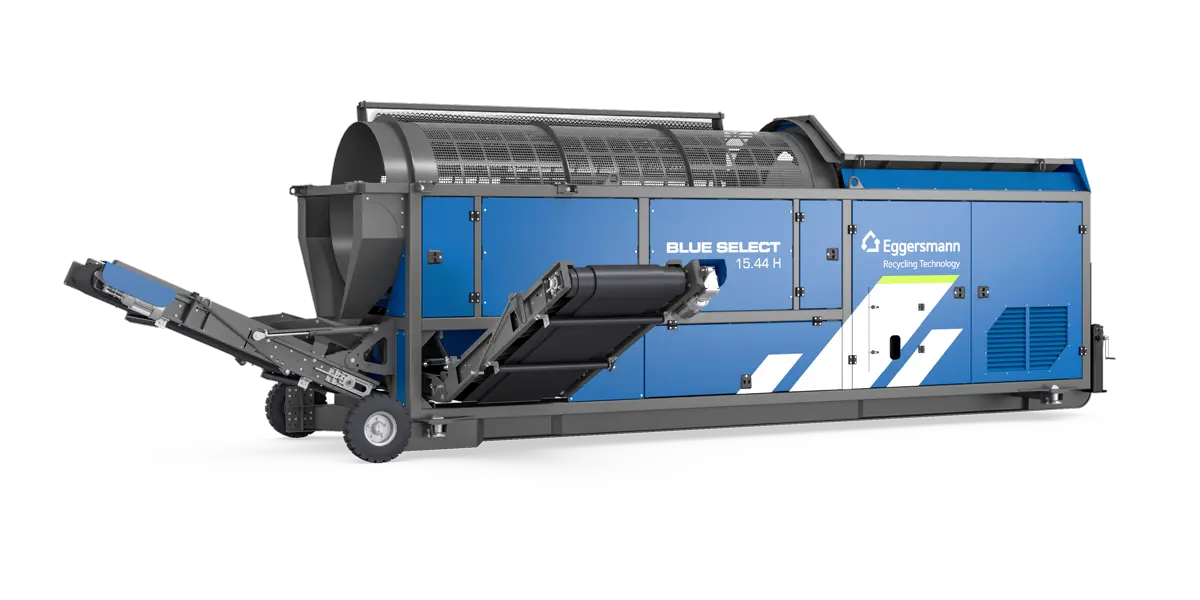

Hook Lift

(hybrid: diesel-electric)

  • Power:
  • 15.2 kW (19 kVA)
  • Throughput:
  • Up to 100 m3/h
  • Weight:
  • 7.500 kg


BLUE SELECT 15.44

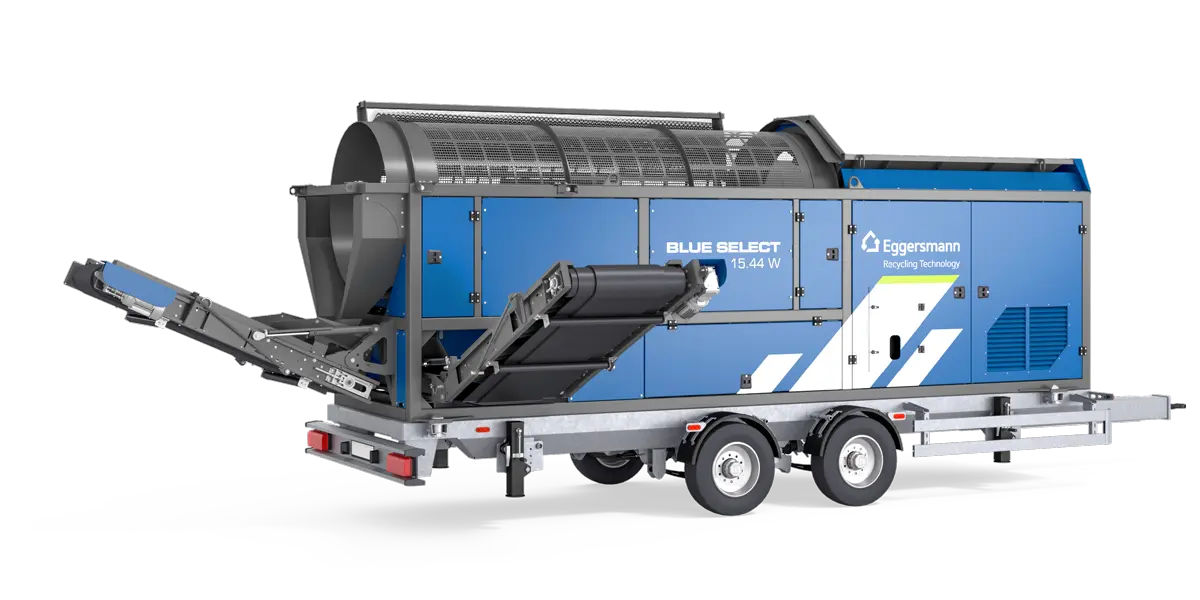

Trailer

(hybrid: diesel-electric)

  • Power:
  • 15.2 kW (19 kVA)
  • Throughput:
  • Up to 100 m3/h
  • Weight:
  • 10.250 kg


BLUE SELECT 15.44

Flexible Change of Substructure

It is possible to switch between trailer, crawler chassis and hooklift at any time. The machine does not even need to be taken to a workshop.

With its compact trommel from the standard
4 metre class, the BLUE SELECT 15.44 is an affordable entry-level solution for mobile screening of a wide variety of materials.


Which Materials can be Processed?

Features

ecological technik product image

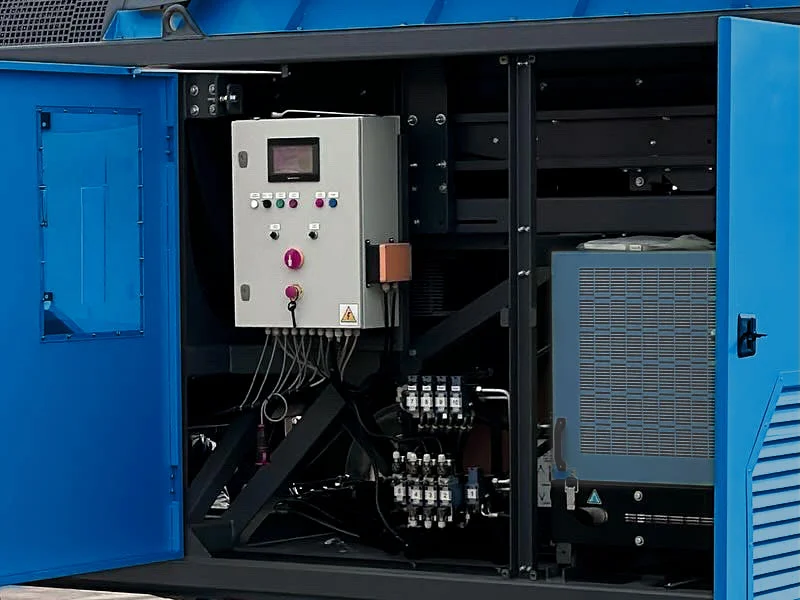

Large Maintenance Doors

Free access to all maintenance components


ecological technik product image

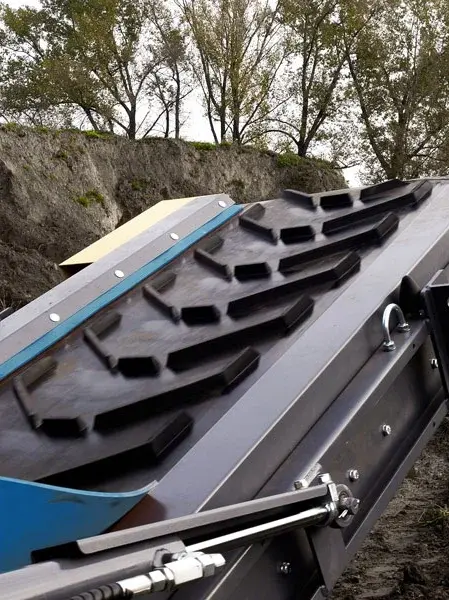

Profiled Conveyor Belts

Profiled conveyor belts for improved material discharge


ecological technik product image

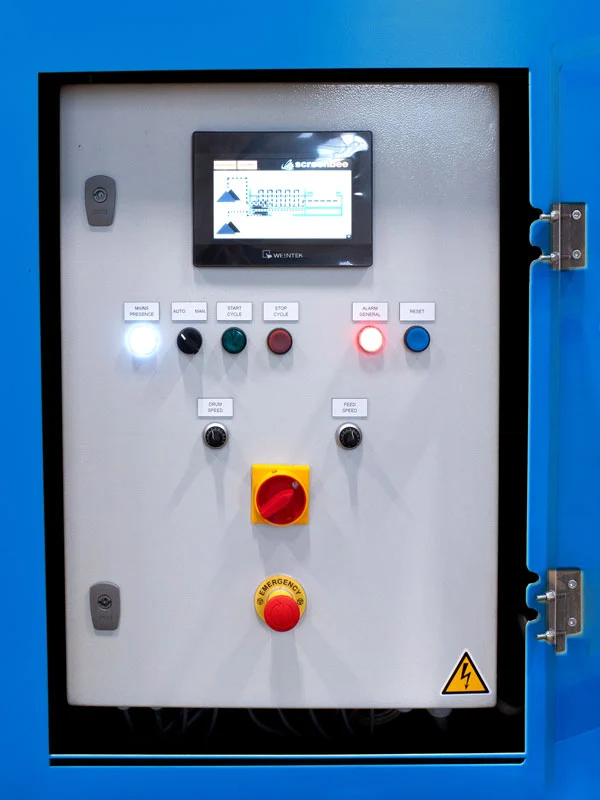

Operating Unit

Self-explanatory operating unit with colour HMI display


ecological technik product image

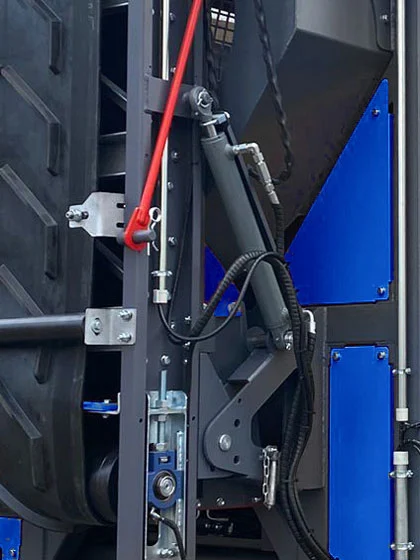

Conveyor Belts

Hydraulically folding and unfolding conveyor belts


ecological technik product image

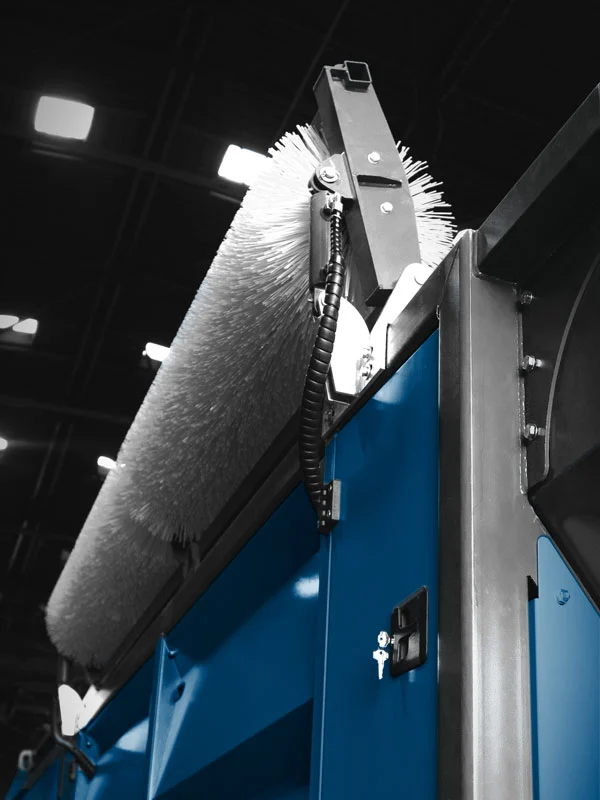

Broom

Hydraulically swivelling brush for cleaning build-up from the trommel


ecological technik product image

230 V Connection

230 V connection for additional devices
→ Air compressors, lighting columns, etc.


ecological technik product image

Emergency Switches

Three safety switches for maximum safety


ecological technik product image

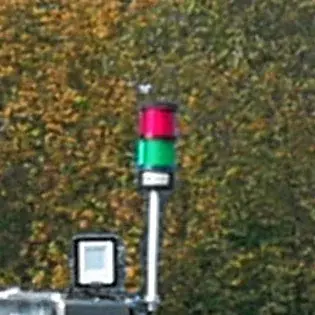

Signal Light

Warning light as a danger indicator when the machine starts working


ecological technik product image

Alarm Siren

Audible alarm signal when the machine starts working


Options

Technical Data BLUE SELECT 15.44

  •
  • Power (kW / kVA)
  • Max. Trommel Revolutions (rpm)
  • Trommel Length (mm)
  • Trommel Diameter (mm)
  • Hopper Volume (m3)
  • Filling Height (mm)


  • Tracks
  • 15.2 / 19
  • Up to 19
  • 4,300
  • 1,500
  • ~ 4
  • 2,783


  • Hook Lift
  • 15.2 / 19
  • Up to 19
  • 4,300
  • 1,500
  • ~ 4
  • 2,563


  • Trailer
  • 15.2 / 19
  • Up to 19
  • 4,300
  • 1,500
  • ~ 4
  • 3,072


  • Working Position*:
  • Length (mm)
  • Width (mm)
  • Height (mm)


  • Tracks
  • 9,747
  • 4,840
  • 3,154


  • Hook Lift
  • 9,699
  • 4,366
  • 2,957


  • Trailer
  • 11,677
  • 4,878
  • 3,444


  • Transport Dimension*s:
  • Length (mm)
  • Width (mm)
  • Height (mm)


  • Tracks
  • 7,733
  • 2,445
  • 3,305


  • Hook Lift
  • 7,732
  • 2,349
  • 2,957


  • Trailer
  • 9,664
  • 2,479
  • 3,845


  • Discharge Height*
  • Fine Grain Belt (mm)
  • Coarse Grain Belt (mm)


  • Tracks
  • 1,887
  • 1,862


  • Hook Lift
  • 1,647
  • 1,664


  • Trailer
  • 1,887
  • 1,862
